Cygnus ROPE

Pine Item #54852

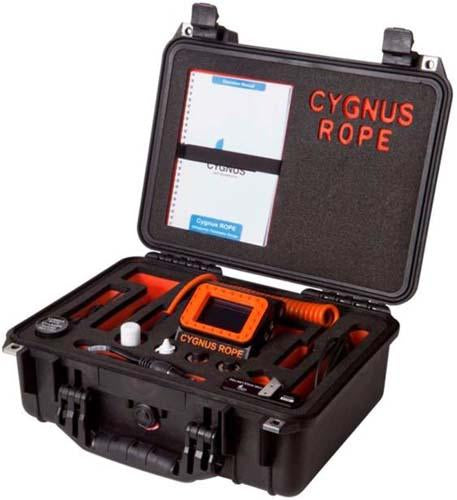

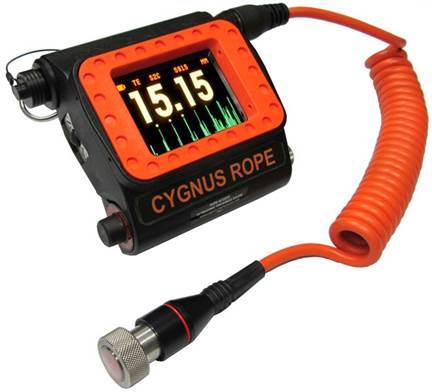

The Cygnus ROPE is an Ultrasonic Thickness Gauge specifically designed for the professional rope access technician.

Features:

Wrist Mountable

Large bright color 2.8 AMOLED display

Two buttons for easy menu navigation

Deep-coat mode ignores coating up to 20 mm

A-Scan display

Data Logging - up to 5000 measurement points recorded with their A-scans

Auto log (hands free operation)

Dual and Single Element Transducers

Cyglink software included

Quantity must be 1 or more
Email for Quote

Specifications

Technical Specifications

Display2.8 quarter VGA colour AMOLED (320 x 240 pixels) Large clear thickness measurement (0.590 high numbers) viewable from all angles A-Scan d
BatterySingle 3.6V Li-Ion 8.2 W battery 11 hours continuous measurement Low battery warning alert message
Measurement ModesSingle Echo (first back-wall echo) using Twin element transducer\nEcho Echo (time between 1st & 2nd back-wall echoes) for measuring on painte
Deep CoatIn Multiple Echo mode allows measurement to be made through thicker coatings of suitable materials (>¾)
ProbesTwin element transducer 2.0 MHz 0.5" T2C 5.0 MHz 0.32" T5B
Measurement RangesSingle Echo Twin element transducers: Single Echo Mode Echo Echo Mode 5.0 MHz: 0.08 to 4 0.1
Accuracy±0.004 or 0.1% of thickness measurement whichever is the greatest
Measurement Resolution0.1 mm (0.005) Low Resolution Mode or measurement >99.95 mm 0.05 mm (0.000) High Resolution Mode and measurement <100.0 mm 0.01 mm (0.001)
Measurement UnitsInches or mm
Probe ZeroFully automatic probe zeroing for all twin crystal probe (no zero required for single crystal probes)
V-Path CorrectionAutomatic V-Path Correction for all Twin Crystal transducers
Velocity Range2000 to 9000 m/s in 1 m/s steps
PulserTwin Channel 70 V spike pulser
Receiver / Amplifier10 MHz bandwidth 120 dB range automatic TCG 60 MHz measurement time-base
Data LoggingOne-handed automatic logging of stable measurements\nCapacity for up to 5000 points including 640 point A-Scan data
