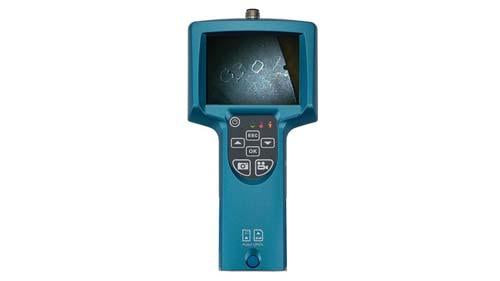

Danatronics BoresEye 2030
Danatronics BoresEye 2030
Danatronics NDT

Danatronics BoresEye 2030

Pine Item #54973

Danatronics BoresEye DC series of non-articulating video probes offer unsurpassed image quality, portability, documentation, and affordability. The DC series of waterproof CCD cameras are available in 5.5mm, 6.0mm, 8.0mm, and 11.0mm. The BoresEye can save stills and video on SD cards with easy export to your computer to document all your critical video inspections. The BoresEye also offers long battery life, a 3/5" high-resolution TFT display, video output and variable lighting.

Features:

3.5 LCD display

Support video recording (mpeg 4)

Support snapshot (jpeg format)

Support replay video and image

Support rotated lens tube - allows user to capture magnified images at any angle

Included a 1 GB SD card for storing video and images and editing on a PC

16 operation languages software

Support AV out (PAL/NTSC selectable)

Working temperature -20o to 60o (celsius)

Power charger indication light

Portable battery design allowing user to change battery at any time

USB port (1.2/2.0) allowing PC transfer

Adjustable illumination LED light

Re

Quantity must be 1 or more
Translation missing: en.products.product.equipment_available
Request a Quote

Specifications

Technical Specifications

Diameter5 6 8 and 11mm
Length:.04M 0.6M 0.8M 4M and 5M
Articulation:150º up 90º down left and right
Field of View:70º for 5.5 6 and 8mm 90º for 11mm
Depth of Field:10-100mm
Insertion Tube:Stainless
Illumination:New micro LED with variable intensity adjustment
Display:3.5 TFT LCD
Outputs:Mini USB 1.1 AV out
Power:DC 5V
Battery:Rechargeable lithium-ion 2.3 hours depending on lighting
Recording Media:SD card up to 2G
Still Image Storage Format:JPEG (640 x 480….full VGA) or video files as ASF (320 x 240…1/4\nVGA) for playing on Windows Media Player
