Proceq

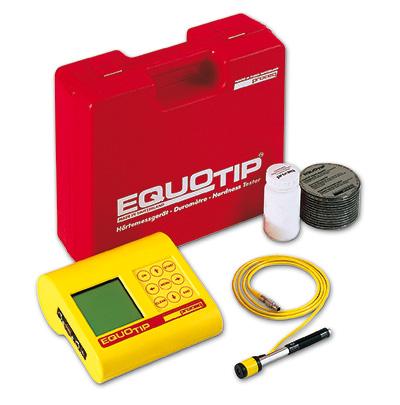

Proceq Equotip 2 Portable Hardness Tester
Pine Item #54257
The Equotip 2 metal hardness tester is a light weight, yet powerful portable hardness tester for all metallic materials. It measures the Leeb value (L) for materials, which is a ratio of the impact velocity to the rebound velocity. Mobile and very accurate, it has a large measuring range - from soft to extremely hard. With measurements within seconds, the Equotip 2 can display readings in other hardness test ranges such as HL, HS, HV, HRB and HRC . Hardness measurements are carried out by a dynamic method, which allows testing on areas of difficult access.
Features:
Ability to freehand measurements on large parts
Rapidity and good reproducibility through accurate distance measurement
Very good selectivity through small penetration of a few µm
Simple convenient operating
Integrated conversions
Translation missing: en.products.product.equipment_available
Request a Quote
Specifications
Technical Specifications
Maximum Hardness | 940 HV |
Impact Energy | 11 Nm |
Mass of Impact Body | 5.5g |
Diameter Test Tip | 3m |
Diameter Impact Device | 20mm |
Length Impact Device | 150mm |
Accuracy | 4L ( + 0.5%) Or when converting to HBHV or HRC + 3% to + 15% Or when converting to shore hardness + 1.5% to 4.5% |
Battery | 6 x 1.5 v LR6 giving 65 Hrs use |
Operating Temperature | 0° C to + 50° C |
Input for External Power | 9v D.C. at 0.2A |
Data Output | RS232C on dB 9 pin |
Dimensions | US: 6.9 x 7 x 3.1 in. Metric: 175 x 180 x 80 mm |
Manuals & Data Sheets
