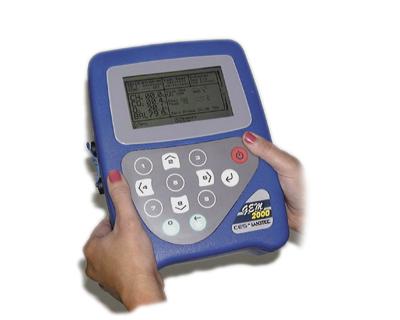

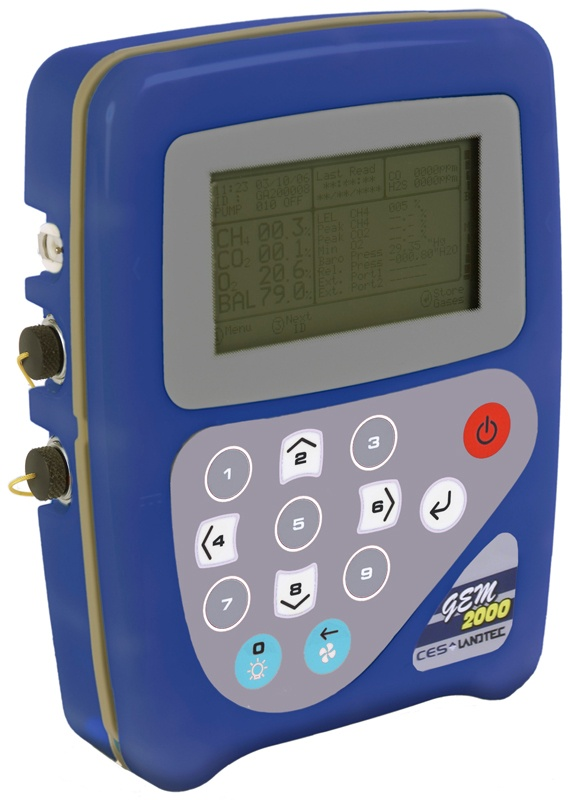

Landtec GEM2000 Landfill Gas Analyzer and Extraction Monitor
The GEM 2000 puts the best of the GEM 500 gas extraction monitor and the GA 90 infrared landfill gas analyzer into a faster, more accurate instrument. Designed specifically to monitor landfill gas extraction systems, flares and migration control systems, the GEM 2000 samples and analyzes the methane, carbon dioxide and oxygen content of landfill gas.
Used in gas extraction monitor mode or landfill gas analyzer mode, the esy-to-read LCD screen shows results as percentages of CH4,CO2 and O2. The GEM 2000 calculates and displays gas flow rate, and also measures and displays Btu content, relative and atmospheric pressures and CH4 LEL. The data storage and retrieval function stores measurements taken for each monitoring point, with a capacity of 900 monitoring points total. Data can be downloaded to a PC.
Features:
Measures CO & H2 S gases
Measures % CH4 , CO2 and O2 Volume, static pressure and differential pressure
Calculates balance gas, flow (SCFM) and calorific value (KW or BTU)
Displays % LEL of CH4 and user-defined comments
Records site and well conditions
Extended operation (10 - 14 hrs use from one charge)
Certified instrinsically safe for landfill use
Two instruments in one (GA and GEM mode)
Applications:
Landfill gas extraction systems
Migration Control Systems
Flares
Methane | Sensor Range: 0 to 100% Resolution: 0.1% |
Carbon Dioxide | Sensor Range: 0 to 60% Resolution: 0.1% |
Oxygen | Sensor Range: 0 to 25% Resolution: 0.1% |
Differential Pressure | Sensor Range: 0 to 10\wc Resolution:0.001\"""wc |
Static Pressure | Sensor Range: 0 to 100\"""wc Resolution: 0.1\"""wc |
Pump Flow Rate | 300 cc/min |
Flow Accuracy | ±3% |
Operating Temperature | 32 to 104 degrees F |
Approvals | UL certified to Class I Zone 1 |
Power | Rechargeable NiMH battery pack up to 8 hours operation |
Dimensions | US: 2.48 x 7.48 x 9.92 in. Metric: 6.3 x 19 x 25 cm |
Weight | US: 4.4 lb. Metric: 2 kg |
