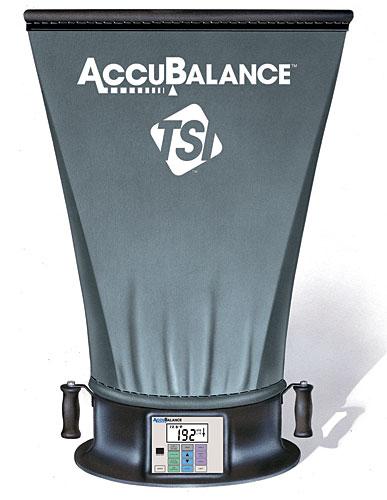

TSI 8371 w/5 Hood Kit
Measure the air volume flowing through registers, diffusers and grilles with an AccuBalance air capture hood. Use it to balance an HVAC system, spot check a room or a building or as part of an indoor air quality study. Weighing just seven and a half pounds, the AccuBalance is easy to carry, lift and use. Just hold the hood up to a diffuser or grill and read direct airflow on the large digital display, which is backlit for easy reading in poor lighting conditions. Input temperature and barometric pressure and obtain an automatic conversion between actual and standard flows. The rental unit comes with five separate hood sizes. Accubalance is a registered trademark of TSI Incorporated.Sample and hold function displays reading of one sample
Features:
Direct read of air flow
NIST Traceable Calibration
Sample and hold function displays reading of one sample
Automatic conversion between actual and standard flows
Field calibration adjustment
Variable time constant
K factor function
Back-lit display
Applications:
HVAC Testing
Clean Room Testing
Trouble Shooting HVAC
Testing and Balancing HVAC
Flow Range | 30 to 2000 cfm |
Accuracy | ± 5% of reading and ± 5 cfm |
Hood Sizes (5) | 24" x 24" 24" x 48" 12" x 48" 12" x 60" 36" x 36" |
Power | 4 C-size batteries 40 hours operation |
Carrying Case Dimensions (HWD) | 26" x 26" x 7" |
Dimensions | US: 26 x 26 x 7 in. Metric: 660 x 660 x 1.8 mm |
Weight | US: 7.5 lb. Metric: 3.4 kg |
