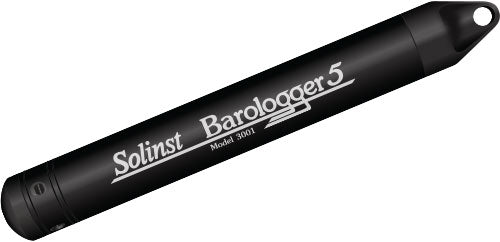

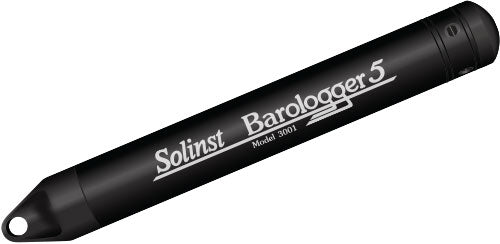

3001 Barologger 5, M1.5
Because Leveloggers are absolute dataloggers, they measure both water pressure and barometric pressure above the sensor. Using a separate Barologger 5 is the most efficient and accurate method to obtain simultaneous barometric readings in air. The readings can be used to subtract from the Levelogger data, to obtain true water levels.
The Levelogger Software Data Wizard allows multiple Levelogger files to be compensated at once, using one Barologger file. Only one Barologger is required within a 30 km (20 mile) radius, or with every 300 m (1000 ft.) change in elevation. The Levelogger Software Data Wizard allows multiple Levelogger files to be compensated at once, using one Barologger file. Only one Barologger is required within a 30 km (20 mile) radius, or with every 300 m (1000 ft.) change in elevation.
Features:
Accuracy of ±0.05% FS
Memory for 150,000 data points
Robust Hastelloy pressure sensor
Single-eye optical for fast, reliable communication
Applications:
Monitoring water levels in wells and surface water
Pump and slug tests
Reservoir and stormwater runoff management
Watershed and drainage basin monitoring
Stream gauging, lake and wetland monitoring
Tank level measurement
Specifications
| Level Sensor: Accuracy: Stability of Readings: Units of Measure: Normalization: Temperature Compensation Range: |
Barologger 5: ± 0.05 kPa Superior, low noise Barologger 5: psi, kPa, mbar, ºC, ºF Automatic Temperature Compensation Barologger 5: -10 to +50ºC |
| Temperature Sensor: Temp. Sensor Accuracy: Temp. Sensor Resolution: |
Platinum Resistance Temperature Detector (RTD) ± 0.05ºC 0.003°C |
| Battery Life: Clock Accuracy (typical): Operating Temperature: |
10 Years – based on 1 reading/minute ± 1 minute/year (-20ºC to 80ºC) -20ºC to 80ºC |
| Maximum # Readings: Memory Mode: Communication: |
150,000 sets of readings Slate and Continuous Optical high-speed: USB, SDI-12 57,600 bps with USB |
| Size: Weight: Corrosion Resistance: Other Wetted Materials: |
22 mm x 160 mm (7/8" x 6.3") 146 grams (5.2 oz) Baked-on coating using polymerization technology (inside and out) Delrin®, Viton®, 316L stainless steel, Hastelloy, PFAS-free PTFE coating |
| Sampling Modes: Measurement Rates: |
Linear, Event & User-Selectable with Repeat Mode, Future Start, Future Stop, Real-Time View 1/8 sec to 99 hrs |
