3001 Levelogger 5, M5

Pine Item #52241

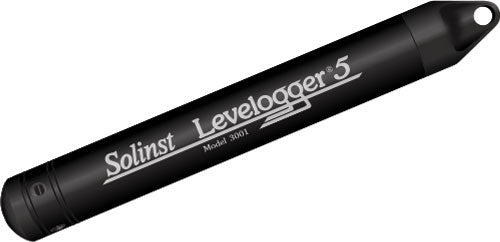

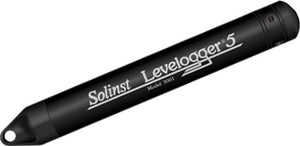

The Model 3001 Levelogger® 5 provides absolute precision when automatically recording changes in water level (pressure) and temperature. It is a self-contained (non-vented) datalogger, that uses a superior, corrosion-resistant, Hastelloy® pressure sensor with an accuracy of ±0.05% FS.
The Hastelloy sensor has great performance and response times in extreme temperature and pressure environments. It can withstand 2 times over-pressure without permanent damage. The Levelogger 5 comes in different pressure ranges to suit expected water level fluctuations, from 5 m to 200 m (15 ft. to 600 ft.).
The sealed unit contains a temperature sensor that gives accurate readings (±0.05ºC) and provides temperature compensated water level values. The Levelogger 5 has a lithium battery that lasts 10 years based on 1 reading every minute. The internal datalogger has memory for 150,000 level and temperature readings.
For use in seawater, and for extra corrosion, abrasion and chemical resistance, the 22 mm x 160 mm (7/8" x 6.3") stainless steel housing has a durable coating (inside and out) baked-on using polymerization technology. The Faraday cage design provides protection against power surges or lightning strikes. The Levelogger 5 operates in temperatures from -20ºC to 80ºC (0ºC to 50ºC is the temperature compensation range).
Features:

Highly stable communication: single-eye optical interface—easier to clean, more scratch resistant

Large memory: 150,000 sets of data

Strong, robust design: double o-ring seals for increased leakage protection

High thermistor sensitivity: upgraded platinum RTD

Superior protection in harsh environments: corrosion and abrasion resistant coating—inside and out

Intuitive Levelogger Software: Diagnostic Utility for more proactive user “self-tests”

Applications:

Aquifer characterization: pumping tests, slug tests, etc.

Watershed, drainage basin and recharge monitoring

Stream gauging, lake and reservoir management

Harbour and tidal fluctuation measurement

Wetlands and stormwater run-off monitoring

Water supply and tank level measurement

Mine water and landfill leachate management

Long-term water level monitoring in wells, surface water bodies and seawater environments

Quantity must be 1 or more
Equipment available for both rental and purchase
Request a Quote

Specifications

Specifications

Level Sensor:
Accuracy:
Stability of Readings:
Resolution:
Units of Measure:
Normalization:
Temp. Comp. Range:
± 0.05% FS (Barologger 5: ± 0.05 kPa)
Superior, low noise
0.002% FS to 0.0006% FS
m, cm, ft., psi, kPa, bar, ºC. ºF (Barologger 5: psi, kPa, mbar, ºC, ºF)
Automatic Temperature Compensation
0º to 50ºC (Barologger 5: -10 to +50ºC)
Temperature Sensor:
Temp. Sensor Accuracy:
Temp. Sensor Resolution:
Platinum Resistance Temperature Detector (RTD)
± 0.05ºC
0.003°C
Battery Life:
Clock Accuracy (typical):
Operating Temperature:
10 Years – based on 1 reading/minute
± 1 minute/year (-20ºC to 80ºC)
-20ºC to 80ºC
Maximum # Readings:
Memory Mode:
Communication:
150,000 sets of readings
Slate and Continuous
Optical high-speed: USB, SDI-12 57,600 bps with USB
Size:
Weight:
Corrosion Resistance:
Other Wetted Materials:
22 mm x 160 mm (7/8" x 6.3")
146 grams (5.2 oz)
Baked-on coating using polymerization technology (inside and out)
Delrin®, Viton®, 316L stainless steel, Hastelloy, PFAS-free PTFE coating
Sampling Modes:
Measurement Rates:
Barometric Compensation:
Linear, Event & User-Selectable with Repeat Mode, Future Start, Future Stop, Real-Time View
1/8 sec to 99 hrs
Software Wizard and one Barologger 5 in local area (approx. 30 km/20 miles radius)
