Solinst

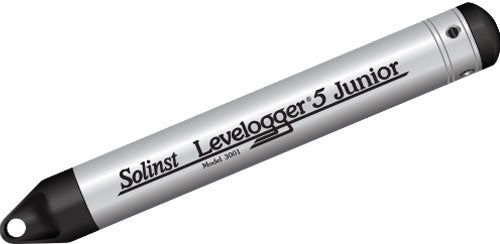

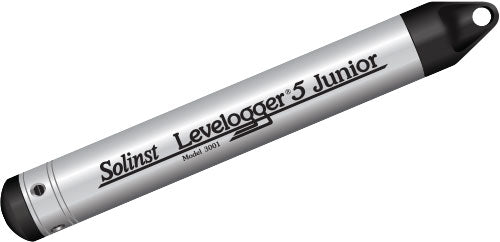

3001 Levelogger 5 Junior, M10
Pine Item #52252
For important projects with a tight budget, Levelogger 5 Junior provides a cost-effective solution for continuous water level and temperature measurement. It is simple to program with user-friendly software, and easy to deploy with Direct Read Cables or wireline/Kevlar cord and the Levelogger Locking Well Cap. It features a Hastelloy pressure sensor, battery that lasts up to 5 years, and memory for 75,000 sets of readings. Accuracy is 0.1% FS with lifetime calibration.
Features:
Low cost
<>Accuracy of 0.1% FS
Memory for 75,000 data points
Robust Hastelloy pressure sensor
Single-eye optical for fast, reliable communication
Applications:
Monitoring water levels in wells and surface water
Pump and slug tests
Reservoir and stormwater runoff management
Watershed and drainage basin monitoring
Stream gauging, lake and wetland monitoring
Tank level measurement
Specifications
Specifications
Level Sensor: Ranges: Accuracy: Resolution: Units of Measure: Normalization: Temp. Comp. Range: |
Piezoresistive Silicon with Hastelloy Sensor 5, 10 m ± 0.1% FS 0.02% FS to 0.01% FS cm, m, ft, psi, kPa, bar, (ºC, ºF) Automatic Temperature Compensation 0º to 40ºC |
Temperature Sensor: Accuracy: Resolution: |
Platinum Resistance Temperature Detector ± 0.1ºC 0.1ºC |
Battery Life: Operating Temperature: Clock Accuracy (typical): |
5 Years (based on 1 reading/minute) - 20ºC to 80ºC ± 1 minute/year (- 20ºC to 80ºC) |
Memory Modes: Maximum Readings: Communication: |
Continuous or Slate 75,000 sets of readings Optical high-speed: 57,600 bps with USB |
Size: Weight: Wetted Materials: |
22 mm x 160 mm (7/8" x 6.3") 145 grams (5.1 oz) 316L Stainless Steel, Delrin®, Viton®, Hastelloy |
Sampling Mode: Measurement Rates: Barometric Compensation: |
Linear, Real Time View, Future Start 0.5 sec to 99 hours Data Wizard and Barologger 5 |
Manuals & Data Sheets
