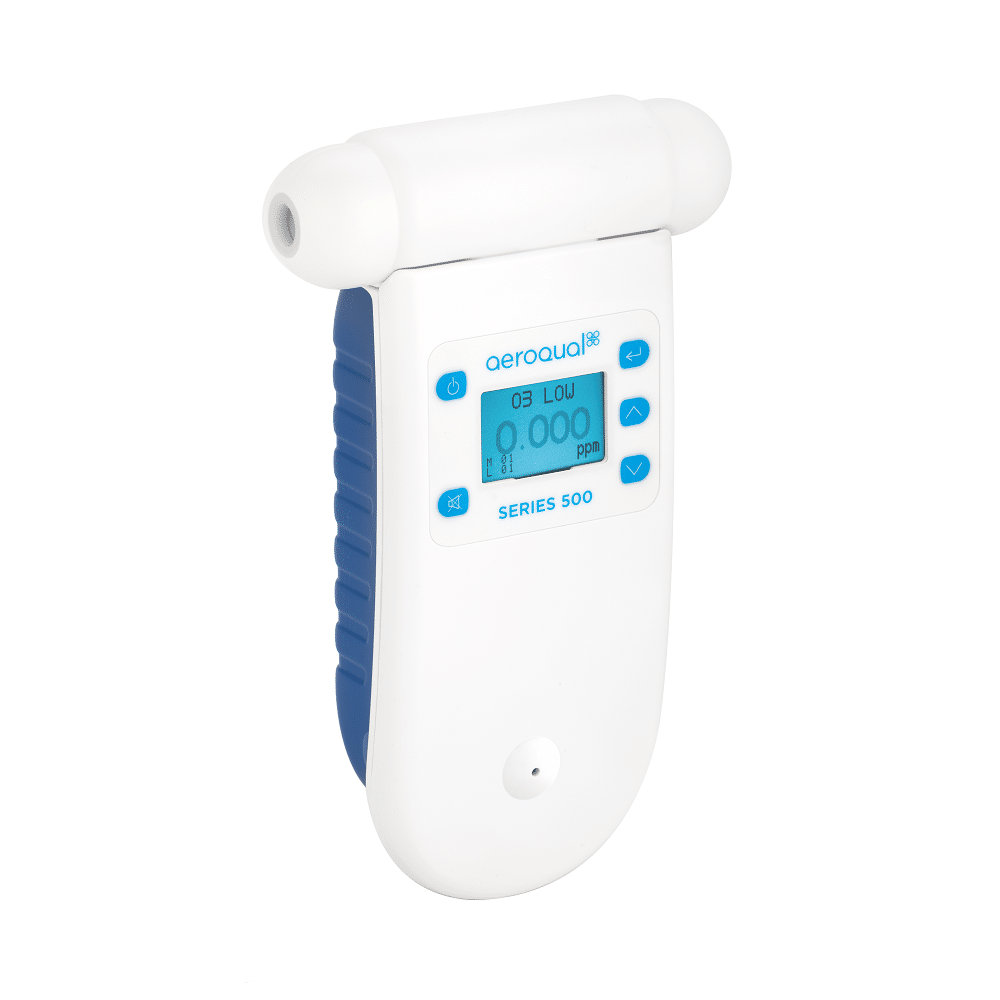

Aeroqual Series 500 Portable Ozone Monitor

Pine Item #54458

The Series 500 portable ozone gas monitor enables accurate real-time measurement of ozone in the air. Data is stored onboard the Series 500 with a maximum of 8,188 records available. To download the data a USB cable is supplied for connection to PC. Free PC software provided with the Series 500 takes the data and presents it in a chart or table view. Data can be downloaded and viewed in Excel.

The monitor can also operate in control mode. Upper and lower control limits can be easily set directly on the display. Using the 0-5V output the Series 500 analyzer can be used to switch on or off an externally connected device such as an ozone generator or system in the presence of a predetermined level of gas. By selecting the optional wall-mount bracket and plugging in mains power the Series 500 is effectively able to act as a fixed monitor as well as a handheld portable device.

Other features on the Series 500 include monitor ID and location ID. Monitor ID identifies the monitor uniquely and ensures that all data from it are tied to that monitor. Location ID can be used to tag measurements to a specific location which is helpful when sampling at a number of sites over the course of a day or week. High and low alarms can also be configured to alert when ozone concentrations have reached a user-defined set point.

For those wanting to recalibrate on-site, the Series 500 allows adjustment of zero and span. Together with the R42 Calibration Accessory and calibration gas, this function allows the sensor head to be fully recalibrated without having to return it to the factory. Alternatively, the sensor head can be returned to Aeroqual for a factory calibration which includes a renewed calibration certificate.

Features:

Fits comfortably in the hand

One monitor compatible with four different types of ozone sensor

Data logged directly onto monitor base

Audible alarm functionality

Changing sensors takes seconds and can be done anywhere

Remote sensor capability

Long life lithium battery technology

Zero and span calibrate in the field

Free PC software (Windows 7, 8, XP compatible)

Connect direct to PC via USB

Applications:

Wide area air quality surveys

Checking pollution “hotspots”

Personal exposure monitoring

Short term fixed monitoring networks

Quantity must be 1 or more
Equipment available for both rental and purchase
Request a Quote

Specifications

Technical Specifications

Display:High resolution LCD
Measurement Units:ppm or mg/m3
Reading Functions:Minimum Maximum & Average
Interchangeable Sensors:Ozone (low) & Ozone (high)
Onboard Alarm:Yes (user configurable)
Onscreen Notifications:Alarm mute Low Battery sensor condition
Datalogger:Onboard datalogging of 8000 datapoints
Data Interface:RS-232 Serial
External Signals (alarm & Control):Transistor output 15omA max
External Signal Functions:Low & High Alarm Control
Analogue Output:0 - 5V
Power Supply:12V DC 800mA
Battery:Rechargeable NiMH 9.6V
Enclosure Rating:IP20
Calibrated Range:0 - 2ppm (25ppm recomended maximum)
Lowest Detection Limit:10ppb
Accuracy:<± 10% (0 - 5ppm) <± 15% (2 - 20ppm)
Resolution:0.01ppm
Response Time (T90):<35 seconds
DimensionsUS: 7.6 x 4.8 x 2 in. Metric: 195 x 122 x 54 mm
WeightUS: 1.04 lb. Metric: 460 g
