AirCheck XR5000 Sample Pump, Hi-power Li-Ion
AirCheck XR5000 Sample Pump, Hi-power Li-Ion
AirCheck XR5000 Sample Pump, Hi-power Li-Ion
AirCheck XR5000 Sample Pump, Hi-power Li-Ion
SKC

AirCheck XR5000 Sample Pump, Hi-power Li-Ion

Pine Item #61263

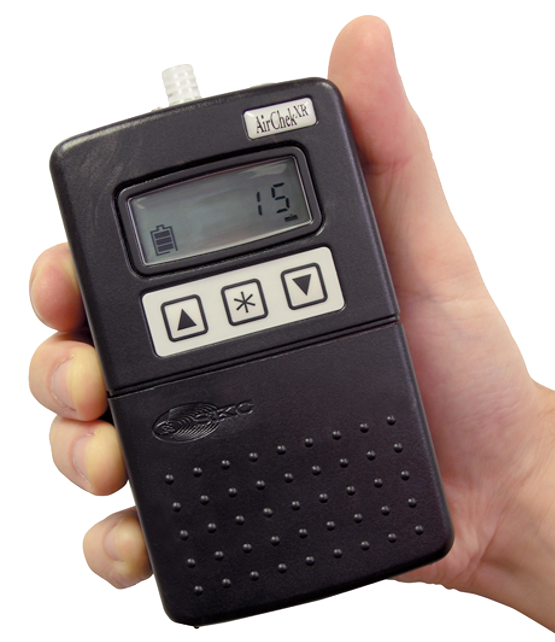

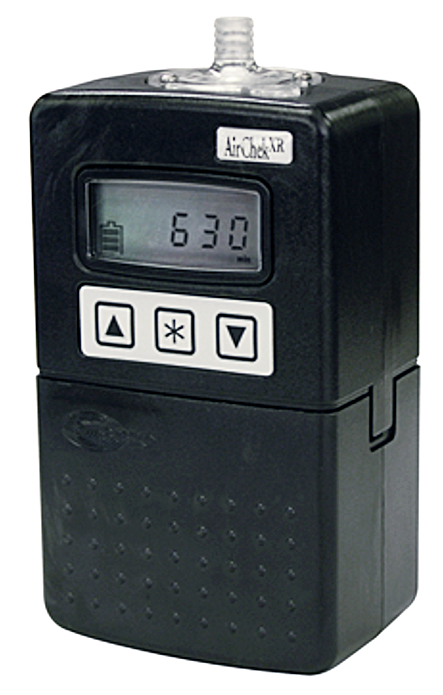

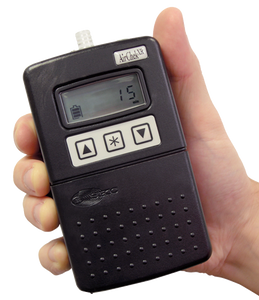

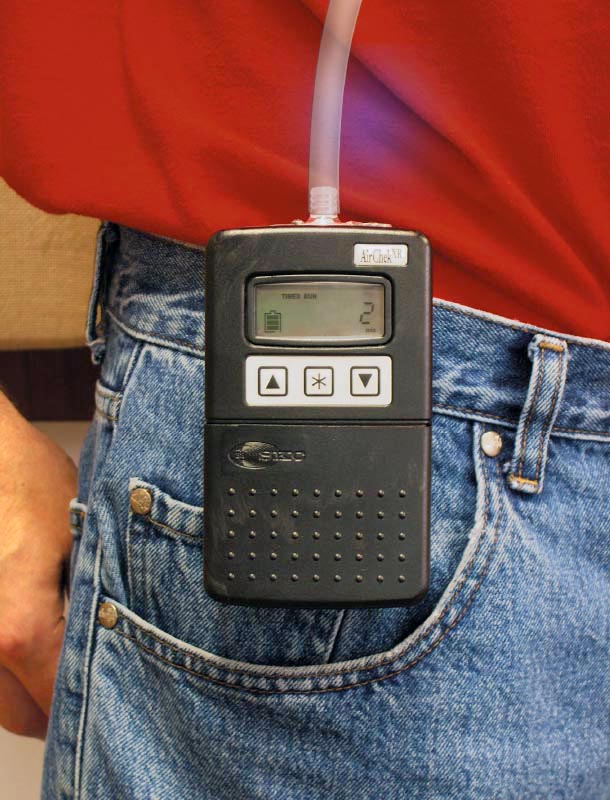

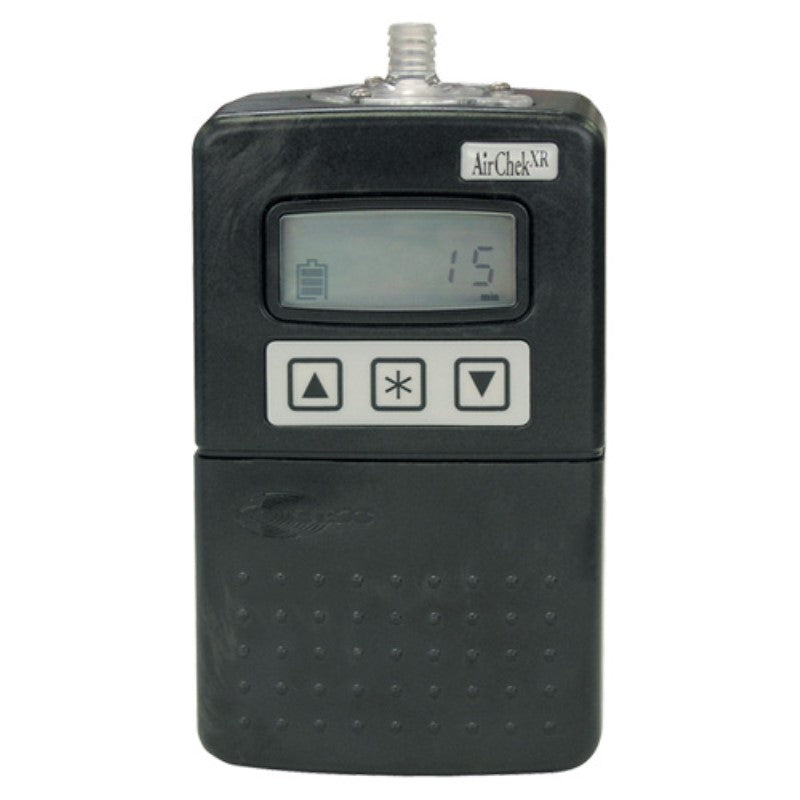

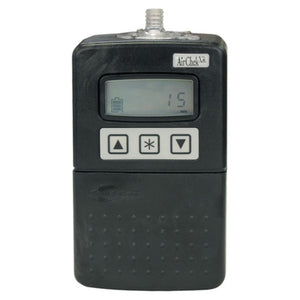

Discover the perfect combination of features and power in this compact, lightweight pump that gets the job done. The AirChek® XR5000 personal air sampling pump with Li-Ion battery provides powerful flows for particulate sampling, low flows for gas and vapor sampling, and the long run-times for low-concentration sampling.

The AirChek XR5000 air sampling pump is UL Listed for intrinsic safety.

Features:

Extended flow range: 5 to 5000 ml/min

Enhanced battery power for extended run times

Extremely simple to use

Automatic features for sample integrity

Applications:

Dust sampling

Vapour/gas sampling

Combined dust/vapour sampling

Air safety sampling is relevant to almost every industry, from flour dust exposure in a bakery to chemical vapour exposure in a factory

Quantity must be 1 or more
Email for Quote

Specifications
Flow Range1000 to 5000 ml/min  (5 to 500 ml/min requires optional low flow kit)
Compensation Range5000 ml/min at 10 inches water back pressure
4000 ml/min at 20 inches water back pressure
2000 ml/min at 50 inches water back pressure
Flow Compensation SystemIsothermal closed loop flow sensor
TubingRequires 1/4-inch ID tubing
AccuraciesTiming: 1 min/mo at 25 C
Flow Rate: ± 5% of set-point after calibration to desired flow
Low Battery Fault15 sec to sleep
Auto-off5 min of inactivity
SizeHigh-power Li-Ion model: 5.5 x 3 x 2.3 in (14 x 7.6 x 5.8 cm)
Standard Li-Ion model: 4.3 x 3 x 2.3 in (10.9 x 7.6 x 5.8 cm)
WeightHigh-power Li-Ion model: 21 oz (0.6 kg)
Standard Li-Ion model: 16 oz (0.45 kg)
CaseAnti-static plastic
WeightHigh-power Li-Ion model: 21 oz (0.6 kg)
Manuals & Data Sheets
