AUT THERMALSCAN 700 Automated Scanner

Pine Item #52657

High Temperature Automated Corrosion Mapping, TOFD and Phased Array scanner capable of scanning 700°F

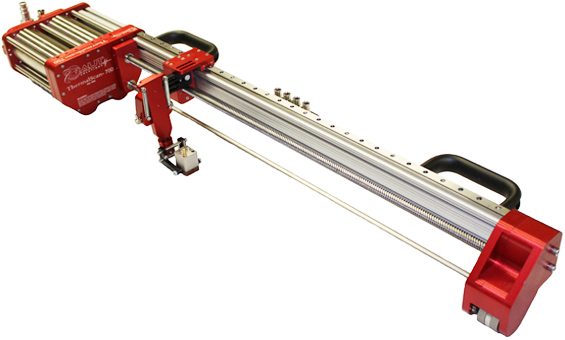

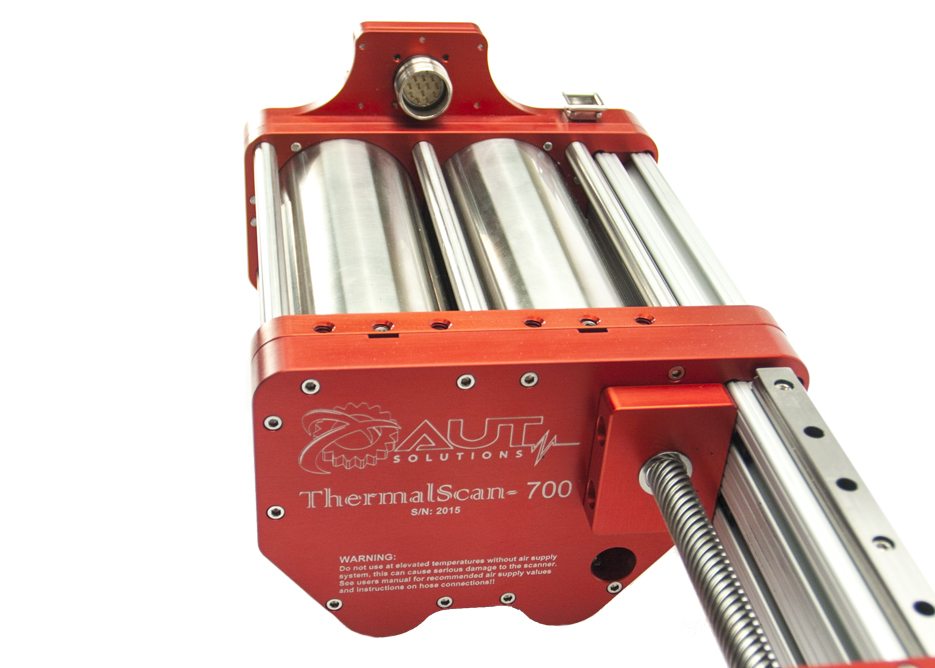

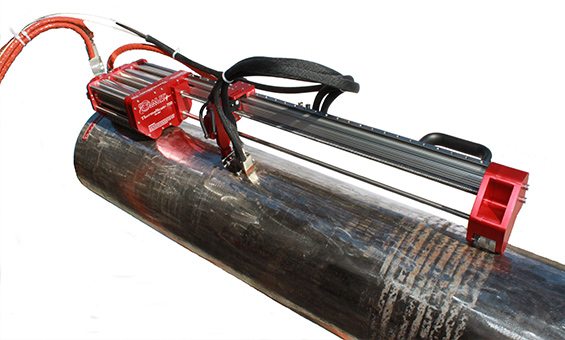

The ThermalScan-700 is the best and only solution for performing high temperature scans on surfaces up to 700° F. This air cooled automated 2-axis scanner can scan at up to 15″per second with wheel speeds up to 5″per second. It will scan on components ranging from 3 inches in diameter to flat surfaces. The modular design of the scanner enables in-field switching of scanning arms or motors in minutes. The scanner can perform conventional raster scans using special high temperature dual focused transducers for simple single channel C-scans, or it can scan circumferentially utilizing linear 0-degree phased array for faster area coverage. The 24″ arm with the secondary drive wheel assembly prevents the scanner from having any tracking issues.

Features:

Fast -Scan up to 15″/s on the arm and 5″/s on the wheels

Portable -Entire system fits into three travel cases, optional battery pack for up to 8 hours per charge

Modular – Arms and motors can be switched in minutes

Lightweight – Scanner with arm alone weighs only 28.5 lbs

Versatile – Works on 3″+ inch pipe and on surfaces that are up to 700°F

High temp magnetic wheels – High curie point and long lasting

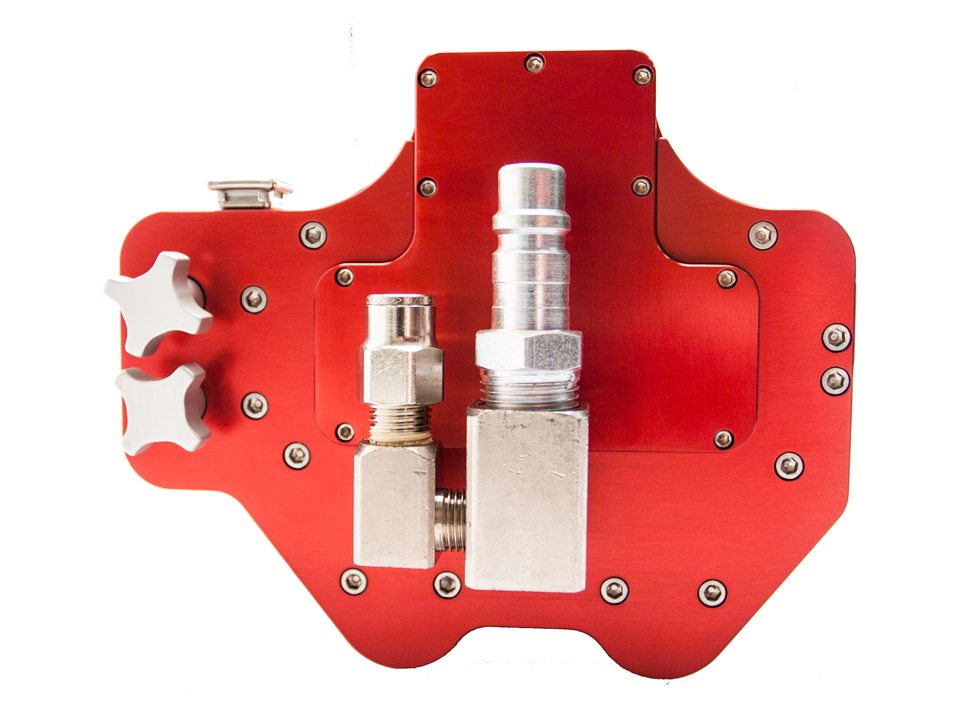

Integrated Cooling – Built in cooling for motors and magnets

Compatible – Works with ProScan, Omniscan, TD Scan, M2M, GE, Zetec, VEO, and more

Applications:

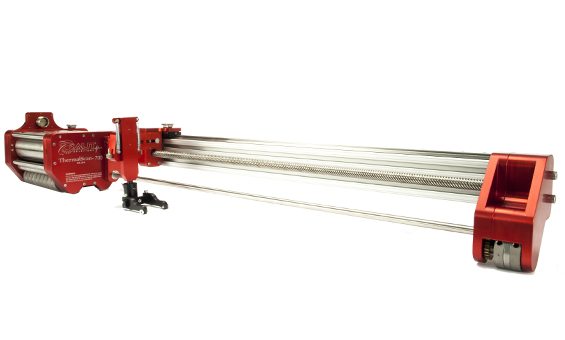

24 inch catamaran arm

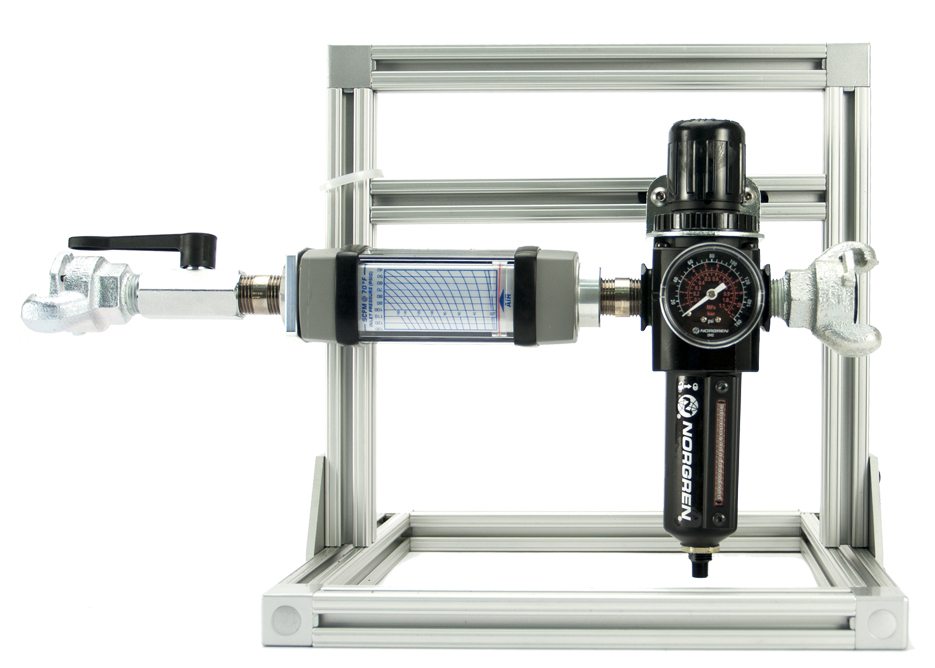

Air pressure and CFM regulator kit

High temperature air/fluid tubing

2-axis motor controller

High temp probe gimble

Power supply

All Windows OS compatible (32 or 64bit)

100 foot umbilical with irrigation and 4 UT lines

15 foot high temp umbilical extension

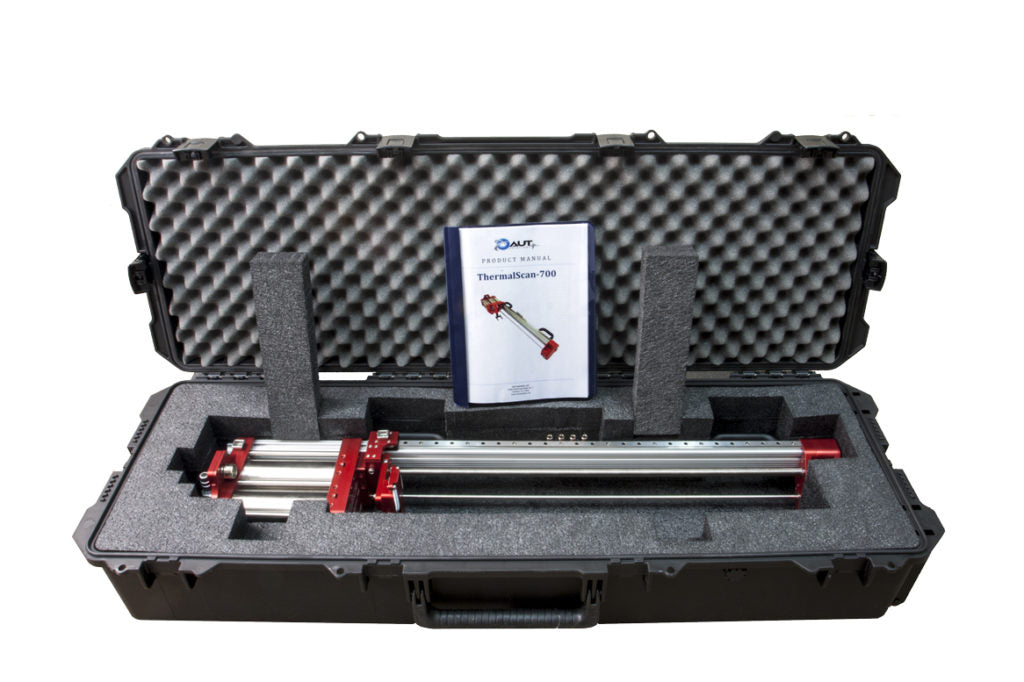

Three robust Pelican shipping cases

Quantity must be 1 or more
Equipment available for both rental and purchase
Request a Quote

Specifications

Accessories

  • 12 or 18 inch arms (No secondary drive)
  • Spare motor kit
  • Rechargeable battery pack with charger
  • 25 foot, 200 foot, or custom length umbilicals
  • Multi-probe kit for TOFD/Phased Array
  • High temperature dual focused transducers
