BW Technologies

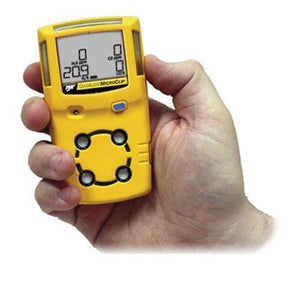

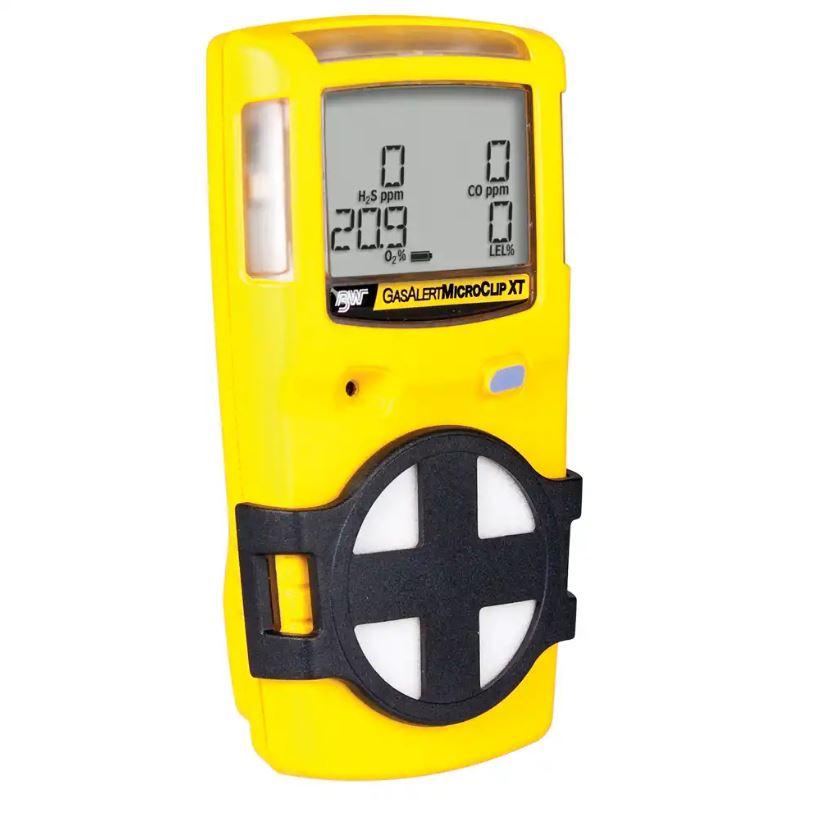

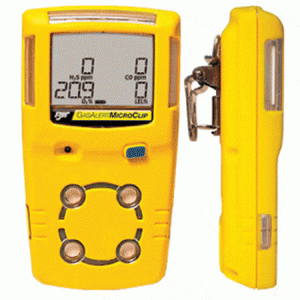

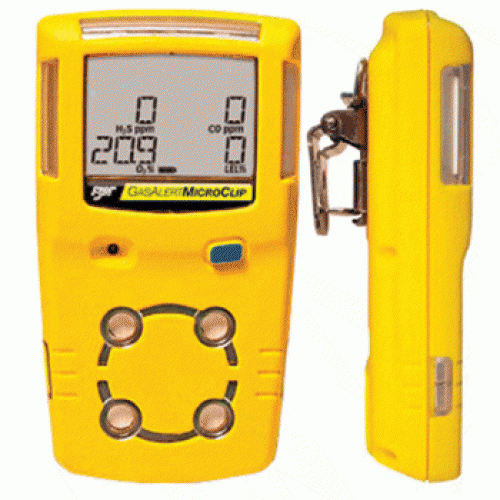

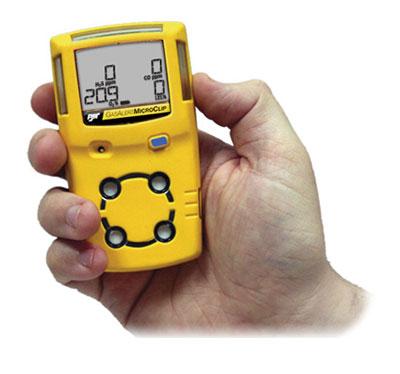

BW MicroClip 4 Confined Space Gas Detector

Pine Item #50083

Offering simultaneous 4 gas monitoring the Microclip is an ideal rental solution for multi-gas detection. ATEX and EX rated, the MicroClip suits a range of applications such as HazMat response, pipe and sewer inspections, Confined Space Entry, manufacturing and many more. Lightweight and featuring audible, visual and vibrating alarms, the MicroClip portable multi gas detector offers unobtrusive safety monitoring of H2S, CO, O2 and Combustible gases.

Features:

Monitors: O2 H2S CO and Combustibles

ATEX and Ex approved

User selectable audible visual and vibrating alarms

Capable of datalogging for up to 16 hours

Waterproof to IP67

Applications:

CBRNE

Plant Shut Down and Turn-Around

Confined Space Entry

Decontaminaton

Emergency Response

Environmental Cleanups/Remediation

Indoor Air Quality

Leak detection

Quantity must be 1 or more

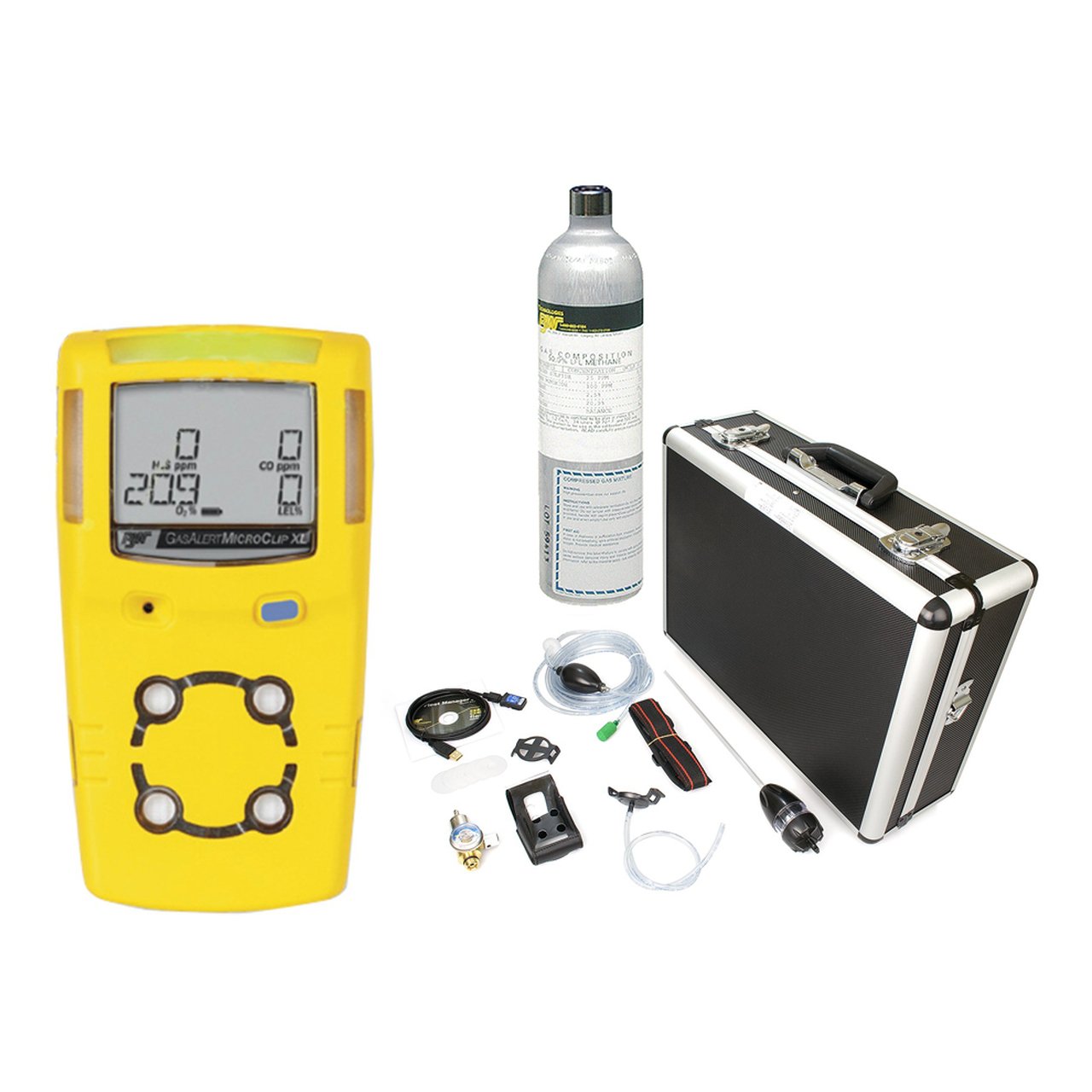

Equipment available for both rental and purchase
Request a Quote

Specifications

Technical Specifications

Gases Monitored:H2S CO O2 and Combustibles (0-100% LEL & 0-5% Methane)
Detection Range:H2S: 0 - 200ppm CO: 0 - 1000ppm O2: 0 - 30% Vol LEL: 0 - 100% Methane: 0 - 5%

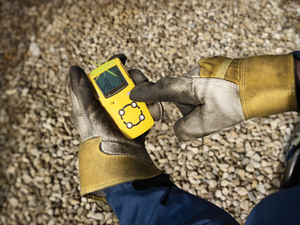

Controls:Single Button

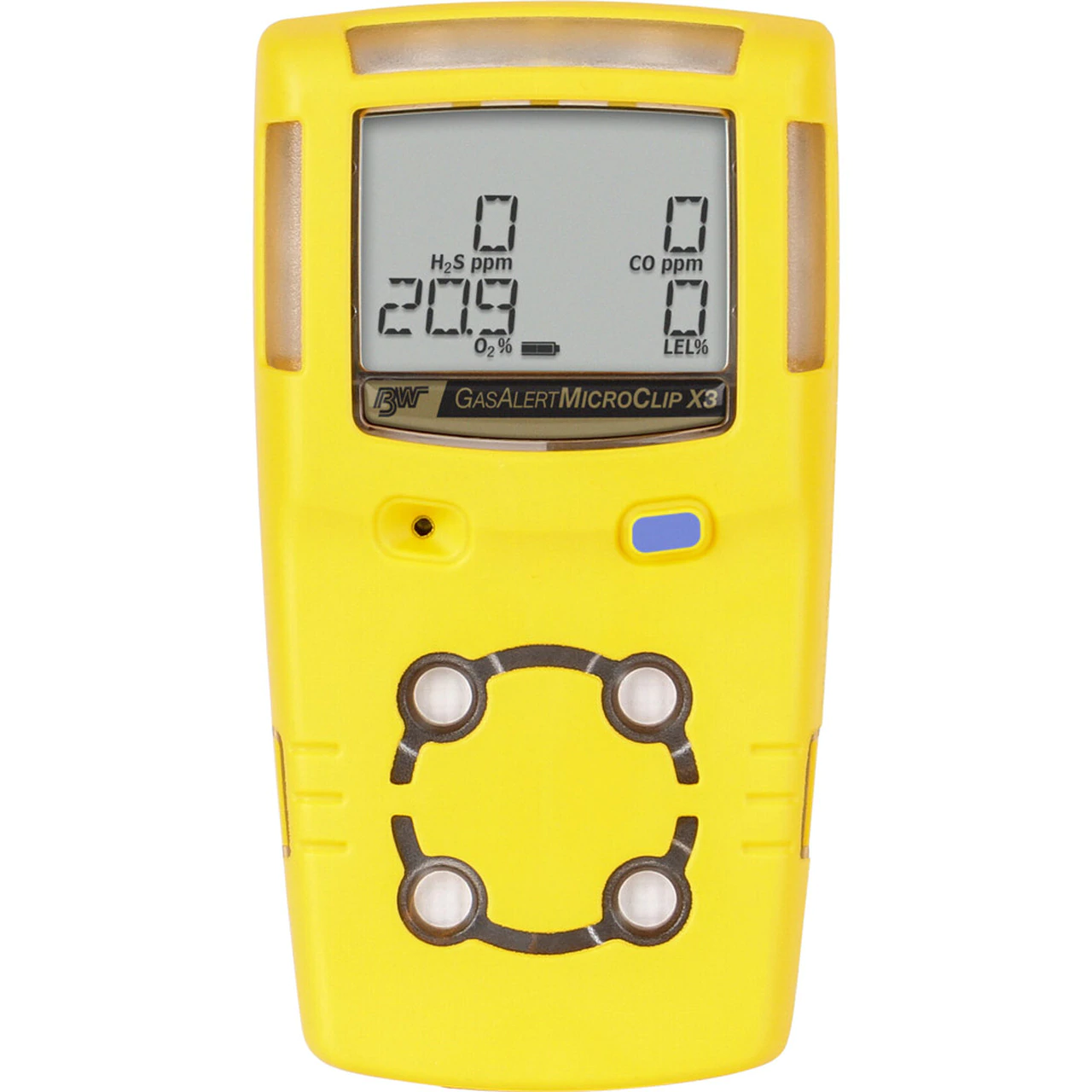

Display:Alphanumeric LCD

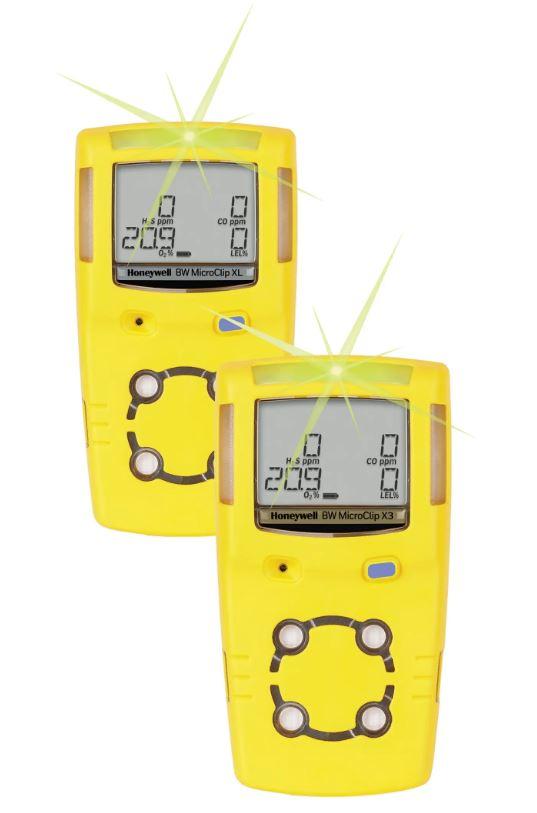

Alarm:95dB audible bright alarm signal bars and internal vibrating alarm
Alarm Levels:Instant Low and Instant High levels TWA and STEL
Recorded Data:TWA STEL Max Exposures and Display Readings
Datalogger:16 Hours
Self Test:Full function: sensor battery circuitry and alarms
Power:Rechargeable Lithium Polymer battery (14hr run-time)
Operating Temperatures:-20 to 58°C
Operating Humidity:0 to 95% RH (non-condensing)
Approvals:ATEX: CE0539 Ex II 1 G Eex ia IIC T4
DimensionsUS: 4.2” x 2.4” x 1.4” Metric: 107 x 60 x 27mm
WeightUS: 5.7oz Metric: 160g
