Casella dBadge2, Standard Personal Noise Dosimeter

Pine Item #55759

Transmit sound level measurements through Bluetooth® 4.0 wireless connectivity to increase productivity - no need to stop working to download readings! Dose, status, level alerts and more can be accessed through the free Airwave™ app and sent directly to your Apple or Android enabled device.

The Casella's dBadge2 noise dosimeters capture every possible noise exposure related parameter in a single measurement run and make it available for subsequent download and analysis.

Email summary data, photographs, and even notes for review or inclusion in reports. Ensure the correct hearing protection is chosen for each application and location. The measurements taken are in accordance with CFR 1910.95, ISO 9612:2009, and UK Guidance document L108.

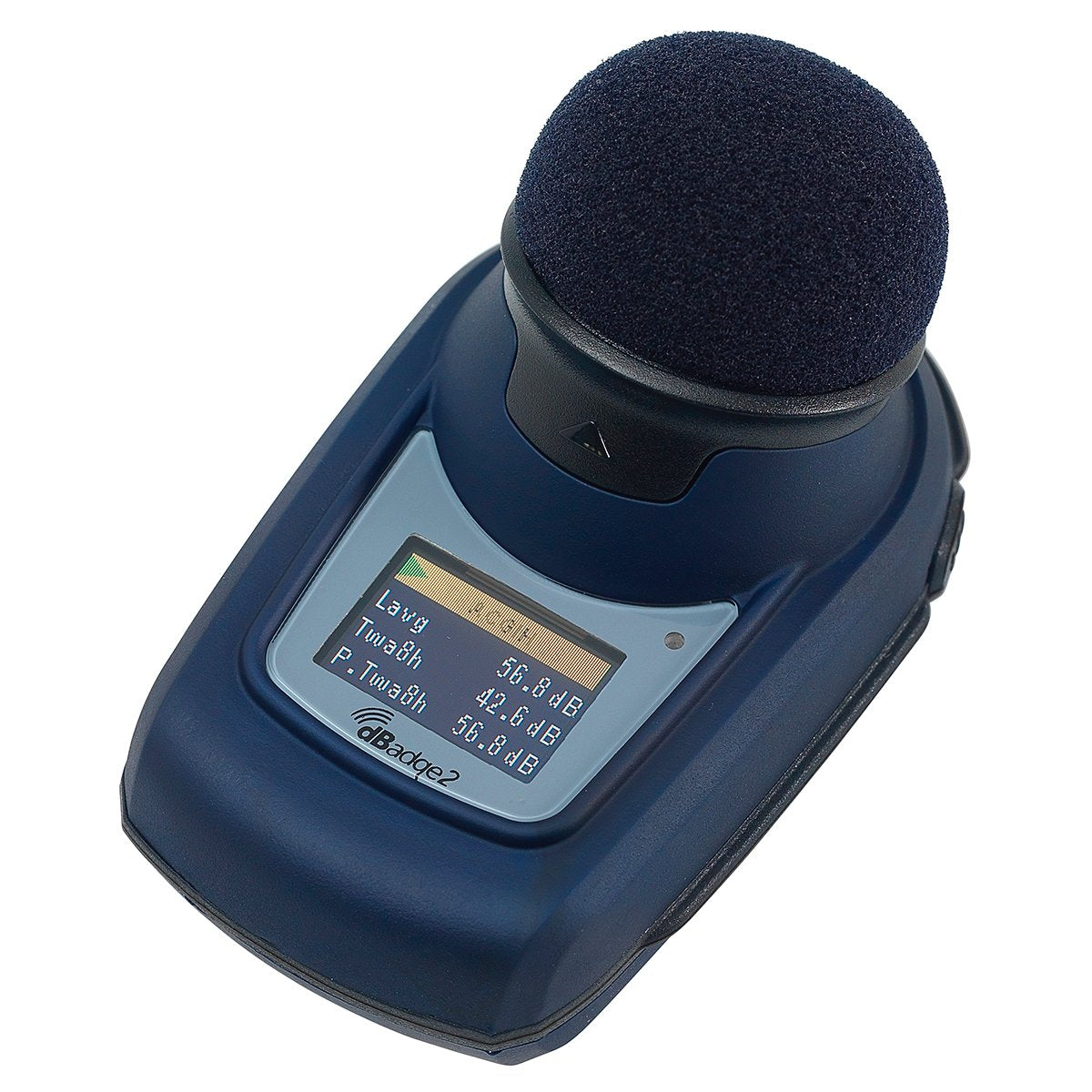

The LCD displays current noise levels in color-coded format for easy interpretation of alarm conditions at a glance. Use the preset alarm limits to adhere to OSHA, ISO, MSHA, and ACGIH guidelines, or set your own.

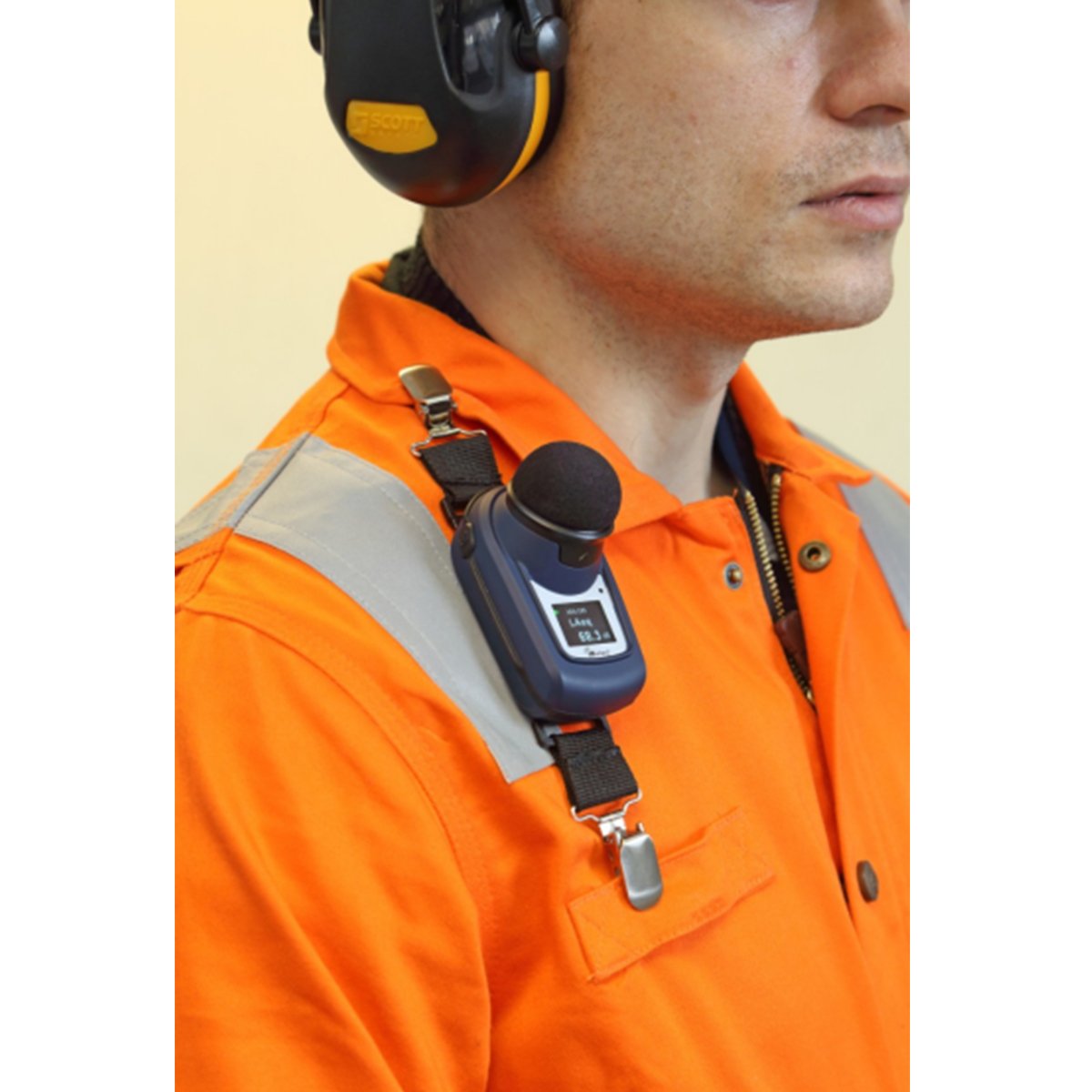

Each personal noise dosimeter comes with two mounting clips, one at the top and one at the bottom, for secure shoulder attachment and features a reliable and robust 1/2" diameter microphone with windscreen.

Features:

Intrinsically Safe

Long Battery Life 35 Hours

300 Hours of Run Data

Multiple ‘simulated’ dosimeters

Full-color display

Pause function

Bluetooth Airwave software to monitor remotely

Measures all noise dose parameters simultaneously

Applications:

Complete shift exposure measurements

Task based measurements

Measurements in accordance with CFR 1910.95 (USA), ISO9612:2009, L108 Controlling Noise at Work.

Selection of hearing protection

Quantity must be 1 or more
Equipment available for both rental and purchase
Request a Quote

Specifications
Standards ANSI S1.25, 1991 R2007, IEC 61252 Ed 1.1 (2002-3)
Linear Operating Range 55.0-140.3 dB (A) RMS
Peak Measurement Range 90.0-143.3dB (C or Z weighted),
Sound Exposure Range 0.0- 6,100.0 Pa2Hours
Frequency Weightings A, C, and Z, Type 2
Time Weightings Fast, Slow and Impulse
Exchange Rate Q=3 or Q=5dB exchange rates
Threshold and Criterion 70-90dB in 1dB steps
Operating Temperature Range 0°C to +40°C (for <±0.5dB error limit)
-10°C to +50°C (for <±0.8dB error limit)
Ambient Pressure Range <±0.5dB over 85 - 112kPa,
Humidity Range <± 0.5dB over 30% - 90% (non-condensing),
Storage Temperature Range -10°C to +50°C,
Battery Internal NiMH, 800mAH
Run Time Typically 35 hours using Broadband Mode
Typically 15 hours using Octave mode
Charge Time <6 Hours from fully discharged
Maximum Run Duration 24 hours
Maximum number of Runs100
Storage Capacity Internal USD Flash memory - 300 hours of run data (including 1-second profile data) and up to 90 minutes of event audio recording.
PC Interface USB 2.0 Full speed 12Mbps via Docking Station.
Dimensions 85L x 54W x 55H mm
Weight 117g
Environmental I.P. Rating IP65 (with permeable air vent)
