Danatronics Echo 9DLW Ultrasonic Thickness Gage

Pine Item #52787

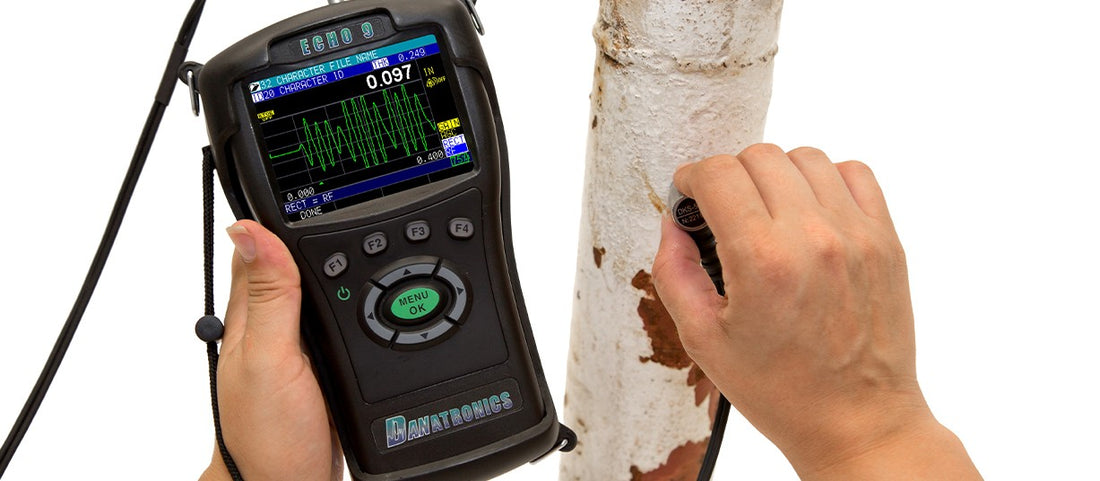

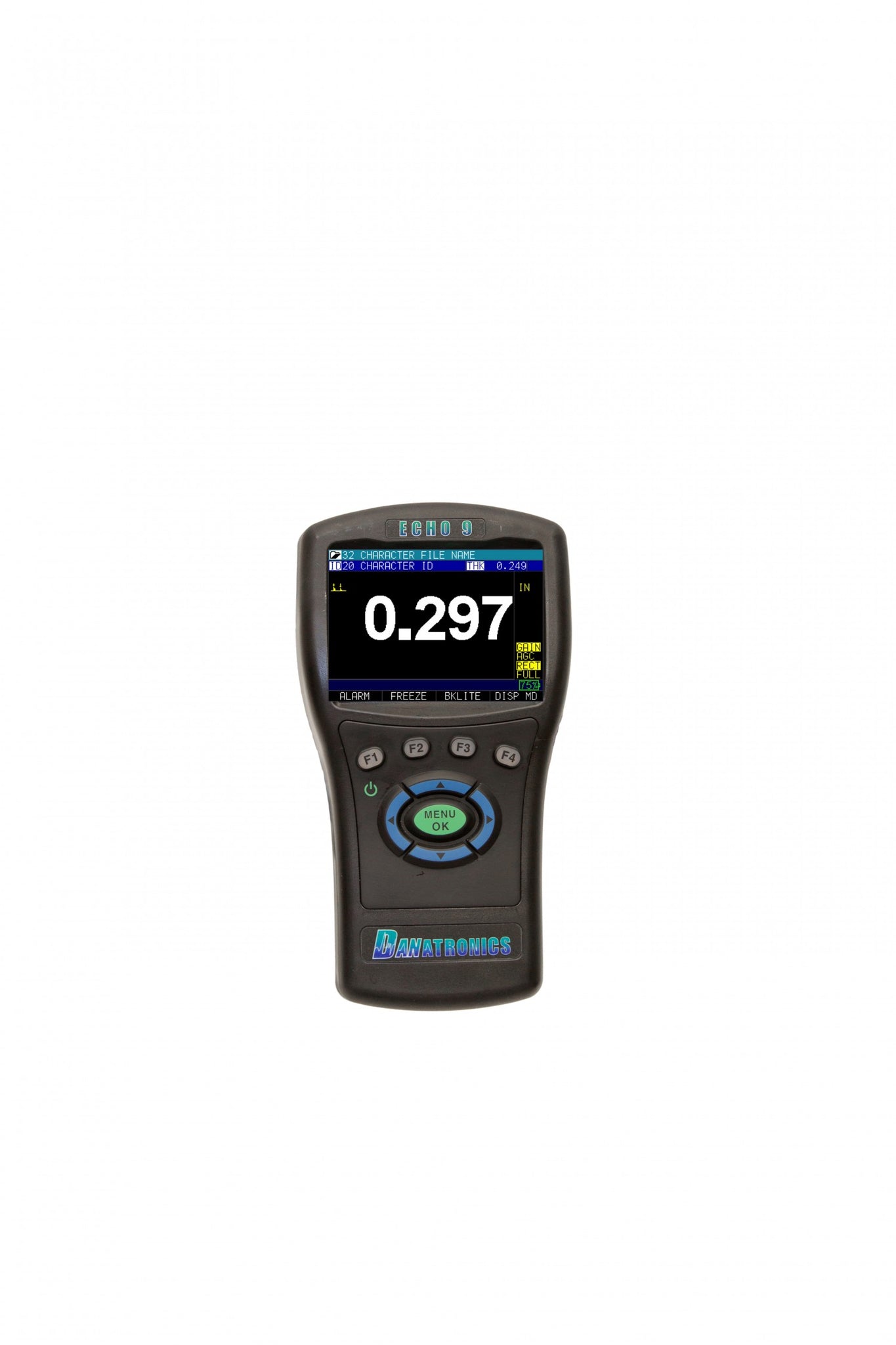

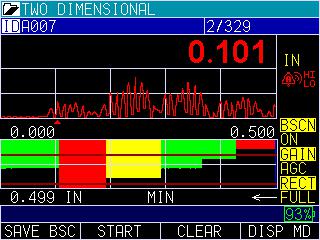

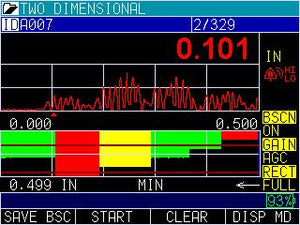

Danatronics offers our newest ultrasonic thickness gage line, the ECHO 9 series. ECHO 9 represents our most advanced thickness gage ever. ECHO 9 offers a 3.5” high-resolution sunlight readable color display with live A-Scan, echo to echo to ignore coatings, B-Scan, datalogger with up to 32GB of SD card memory, and an interface to Microsoft excel. The ECHO 9 is available in 4 models, including the ECHO 9, ECHO 9DL, ECHO 9W, and ECHO 9DLW. The vibrate-on alarm feature is the world’s first and is great for loud environments.

Unsure which ECHO series gage is right for you? Our ECHO series chart can help you decide.
Features:

Simultaneous Live Color A-Scan and Thickness Display

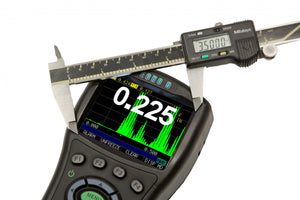

3.5” Sunlight readable color display

Field upgradeable software options include:

Fast/Min and Fast/Max displays minimum, maximum or both simultaneously with actual thickness at 25 Hz

Compatible with a wide variety of Danatronics dual and single element transducers

Multiple languages

Datalogger interfaces with Microsoft Excel

Designed for IP67

Made in the USA

Applications:

Boiler Tubes

Pressure Vessels

Storage Tanks

Ship Hulls

Pipes

Steel beams on bridges

Quantity must be 1 or more
Equipment available for both rental and purchase
Request a Quote

Specifications

Specifications

Size:Length 7.25” x Width 4.00” x Height 2.00” (184mm x 101.6mm x 50.8mm)
Weight:1.15 lbs (.52 kg) with internal Li-Ion battery, 1.0 lb. (.45 kg) with optional Alkaline tray including 3 AA batteries
Display:3.5” high resolution color display, 320 x 240 pixels (1/4 VGA), sunlight readable, including multiple color choices
Backlight:Light Emitting Diode (LED) backlight. Includes variable light intensity, indoor and outdoor modes
Temperature (Gauge Operating):-4 to 122F (-20 to 50C)
Package:Designed for IP67 rating, custom, splash-proof, high impact plastic with illuminating rubber keypad for go/no-go testing
Transducer Connector Type:Lemo 00 (2qty)
Bandwidth:0.5-30 Mhz (-3dB)
Measurement Rate:4 Hz or 25 Hz.
Pulser:150V, Square Wave
Range:Thickness range depends on gage type, probe selection and material conditions. Typical range in corrosion mode, .020"-23" (.508 - 584 mm)
Calibration:Cal zero, Cal velocity, Two-point calibration or Auto Calibration performs a two-point calibration using a 5-step test block
Material Velocity Range:.0200 in/usec-.7362 in/ uS (0.508-18.699 mm/ uS)
Batteries:Standard 3.7 V Li Ion internally rechargeable battery (11-27 hours...Standard mode of 4Hz. and 74% brightness: 27 hour continous operation, Fast mode at 25Hz., continuous measurements in echo to echo mode: 11 Hours) or optional alkaline tray for 3 AA batteries
Data XL:Interface program to send and receive stored readings, latest firmware and application set up files as two way communication from ECHO to computer (excel)
USB:USB 2.0
Stored Setups:Storage and recall of calibration and set up files

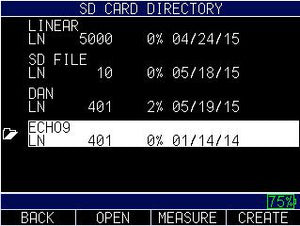

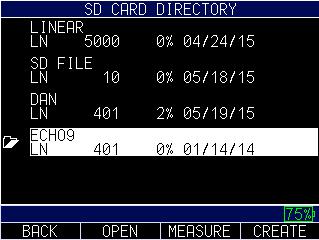

Memory:Internal memory standard on all models. For Datalogger models 2GB micro SD card standard and expandable up to 32GB
Gain:Low, Standard and High for gages without waveform. 20-94 db in 1 db increments
Zoom:Automatically centers echos in the center of the display independent of material thickness
Units:English, Metric, Microseconds
Temperature Correction:Software to correct for varying sound speed as a function of entered temperature
Languages:English, French, German, Spanish, Italian, Russian, Czech, Finnish, Chinese, Japanese, Hungarian
Fast Min/Max:Displays minimum, maximum or both simultaneously with actual thickness at 25 Hz.
Alarms:Gage vibrates and beeps. Display changes color based on alarm condition
Transducers:Single, dual, delay lines, contact, immersion
Measurement Types:Main bang to first backwall echo, echo to echo and velocity mode (displays acoustic sound speed based on entered thickness)
Freeze Mode:Direct access to freeze display (ideal for high temperature applications)
Hold Mode:Holds display to retain last thickness reading
Warranty:Limited 2 year warranty under normal use on parts and labor for gage. Optional Dan-A-Care to add up to 3 more years
Shut Off:Selectable auto shut off 1-31 minutes or never shut off
Differential Mode:Displays the difference from actual thickness measurement in absolute or percentage of a user entered reference value
Resolution:.001” or .010” as corrosion gage and .001”
Transport Case:Hard Plastic with high density molded foam cut out for gage and most accessories
Certifications:CE certified, RHOS compliant, designed for IP67
Accessory Mount:ECHO 9 includes a 1/4x20 standard connection point on the back of the unit to allow for a multitude of accessories including a magnetic pipe attachment and a Gorilla Pod
Standard Inclusions:ECHO 9 series ultrasonic thickness gage, DKS-537, 5MHz, 0.375 inch diameter transducer with potted cable, 2oz bottle of couplant, operation manual, Data XL interface program, USB cable, Charger Adapter, Transport Case *A transducer is included with each model. Contact Danatronics for details
Available Software Options:Datalogger with B-scan, Live waveform, (Precision mode, Oxide scale, Coating thickness...Q1 2016)
Hardware Options:EZ Scan Bscan Encoder, Bluetooth, Alkaline battery tray, rubber boot
