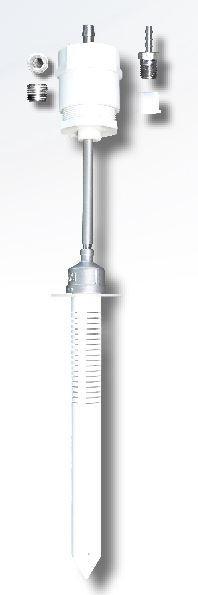

ECI Permanent Sub-Slab Monitoring System (PSSMS)
Pine Environmental

ECI Permanent Sub-Slab Monitoring System (PSSMS)

Pine Item #55381

The Permanent Sub-Slab Monitoring System (PSSMS) allows for recurrent use  in sampling and diagnostic testing of gas and vapor directly below new building  floor slabs.   It is designed for installation in new building concrete slabs or in new  concrete slabs in existing buildings where a gas permeable layer is placed below  the floor slab.

Features:

NEW system - designed specifically for use in new construction

Premanufactured and prepackaged - ready to install in place with no assembly required

Self-supporting - simply placed within the gas permeable layer and embedded in the soil beneath prior to pouring of concrete slab

Controlled installation and greater flexibility in locations

No drilling required - eliminates the need for utility markout and the risk of damage to sub-slab or in-slab utilities

Eliminates breaching of vapor barrier waterproofing and new concrete slab

Completely air-tight - becomes a part of the concrete slab

All gas/vapor vessels and fittings are 316 stainless steel (316 SS)

Slotted screen within the gas permeable layer provides for accurate gas/vapor entry zone and is blockage proof

Floor access containment is height-adjustable 2

Floor access containment can be used to store the provided 316 SS hose barb fitting when not in use while the provided 316 SS plug is in place

All metal parts are non-dissimilar (stainless steel)

Provided hose barb sized for use with 1/4” OD x 0.17” ID tubing to match typical SUMMA® - type canister sample inlet fitting - only one tube required - eliminates sample dilution

Applications:

NEW system - designed specifically for use in new construction

Premanufactured and prepackaged - ready to install in place with no assembly required

Self-supporting - simply placed within the gas permeable layer and embedded in the soil beneath prior to pouring of concrete slab

Controlled installation and greater flexibility in locations

No drilling required - eliminates the need for utility markout and the risk of damage to sub-slab or in-slab utilities

Eliminates breaching of vapor barrier waterproofing and new concrete slab

Completely air-tight - becomes a part of the concrete slab

All gas/vapor vessels and fittings are 316 stainless steel (316 SS)

Slotted screen within the gas permeable layer provides for accurate gas/vapor entry zone and is blockage proof

Floor access containment is height-adjustable 2

Floor access containment can be used to store the provided 316 SS hose barb fitting when not in use while the provided 316 SS plug is in place

All metal parts are non-dissimilar (stainless steel)

Provided hose barb sized for use with 1/4” OD x 0.17” ID tubing to match typical SUMMA® - type canister sample inlet fitting - only one tube required - eliminates sample dilution

Quantity must be 1 or more
Equipment available for both rental and purchase
Request a Quote

Specifications

Dimension

USMetric
Available size for overall concrete slab thickness of 7.25\ (extendable to 7.75\""")7\"""-
Available size for overall concrete slab thickness of 8.25\""" (extendable to 8.75\""")8\"""-

Weight

USMetric
"""
