Flir E6-XT Infrared Camera, 240 x 180 Pixels, -4° to 1022°

Pine Item #52255

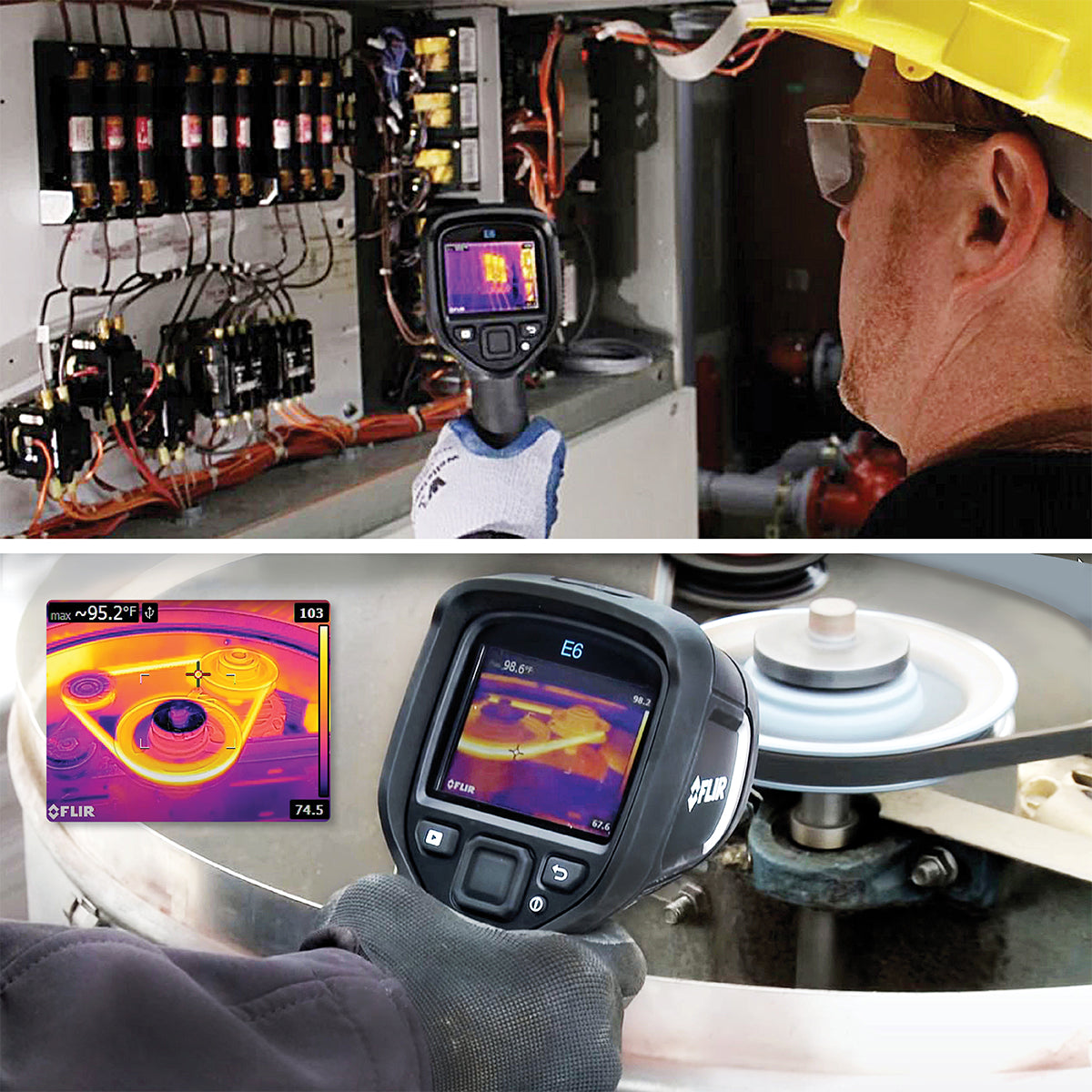

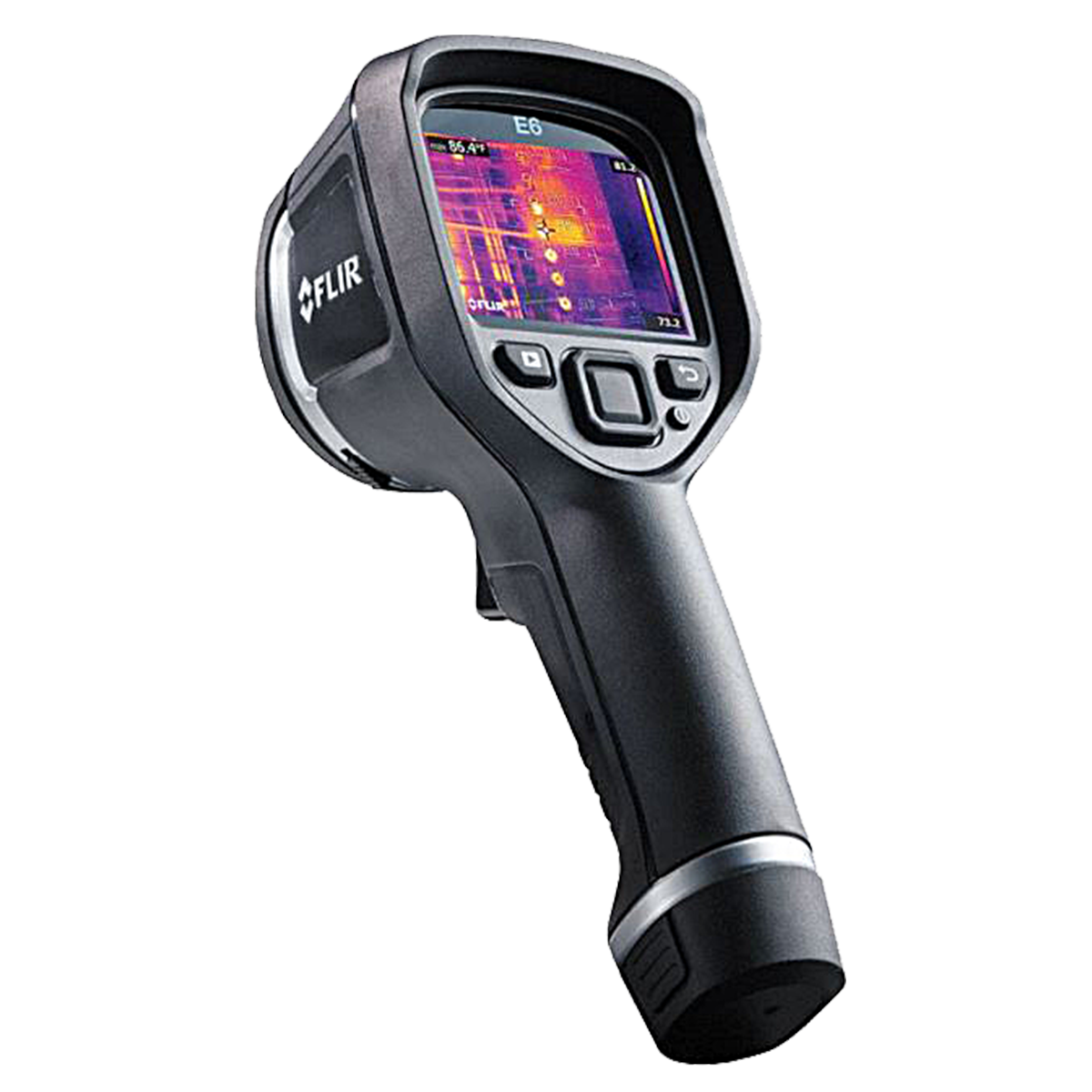

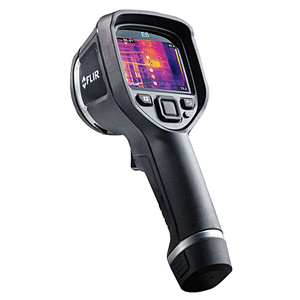

FLIR E6-XT is the perfect tool for diagnosing electrical, mechanical, and building problems, thanks to its 43.200 (240 × 180) pixel infrared detector and expanded, -20°C to 550°C (-4°F to 1022°F) temperature range. FLIR MSX® image enhancement provides extraordinary thermal imaging detail, while the built-in Wi-Fi allows users to quickly connect with the FLIR Tools® Mobile app for sharing images and sending reports easily from any location.

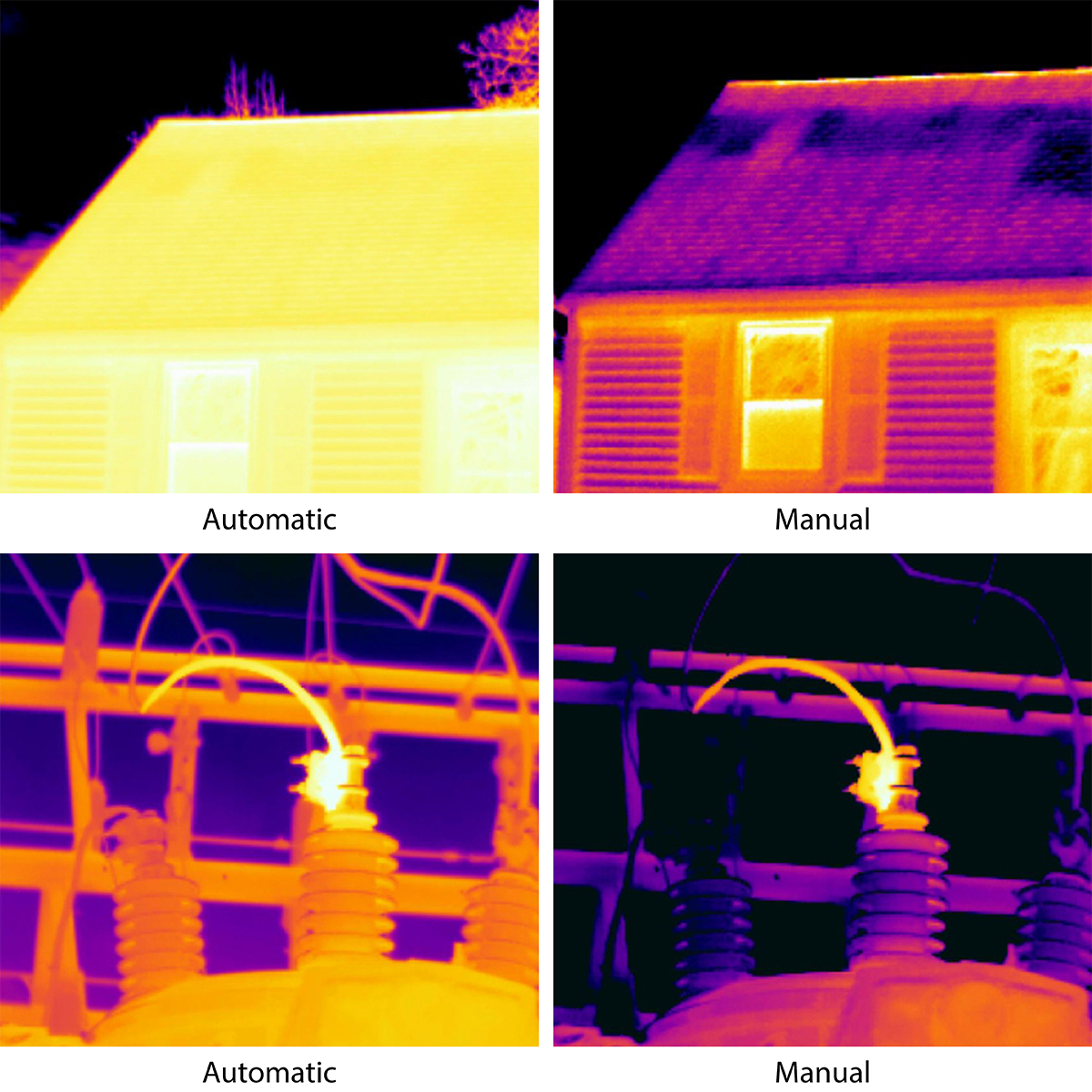

Thermal imaging cameras are devices that translate thermal energy (heat) into visible light in order to analyze a particular object or scene. The image produced is known as a thermogram and is analyzed through a process called thermography.

Features:

Point and shoot can easily find energy, hot spots, and more

Easy to us with intuitive graphic interface simplifies measurements in both thermal and MSX mode

Fully automatic and focus-free

Accurately measure your target using center spot or max/min area box

Navigate easily to on-screen settings, image modes, and measurement tools using simple button controls

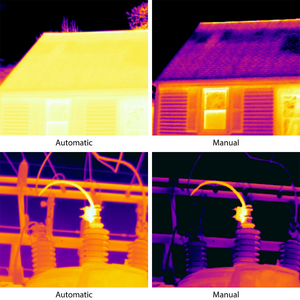

Activate MSX to enhance IR images with visual detail for better perspective and interpretation

Convenient to share images and findings with others

Records standard JPEGs with embedded temperature data for easy sharing with clients

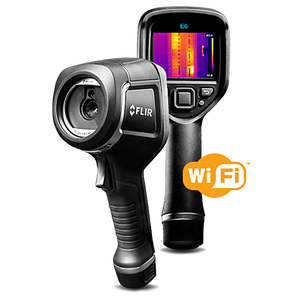

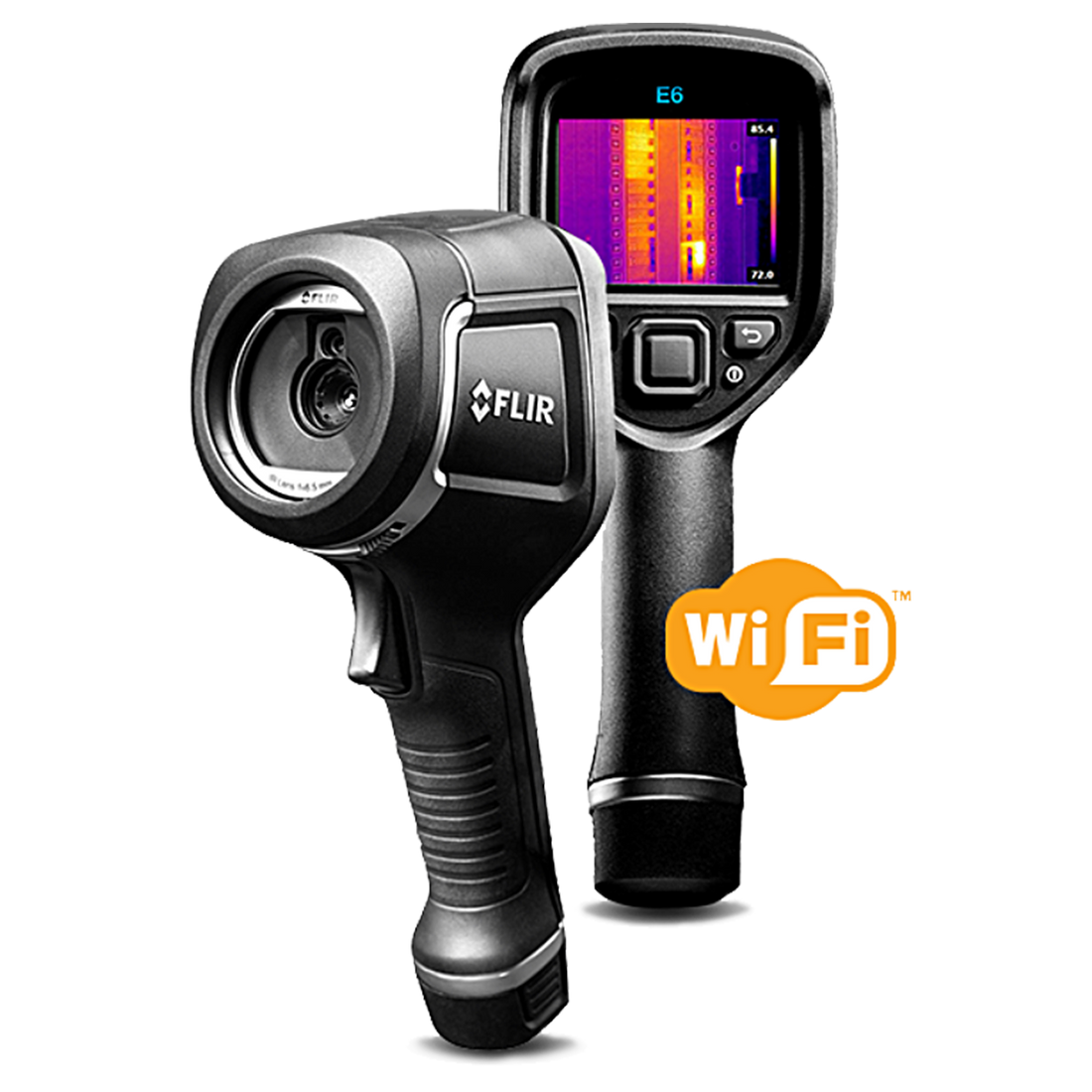

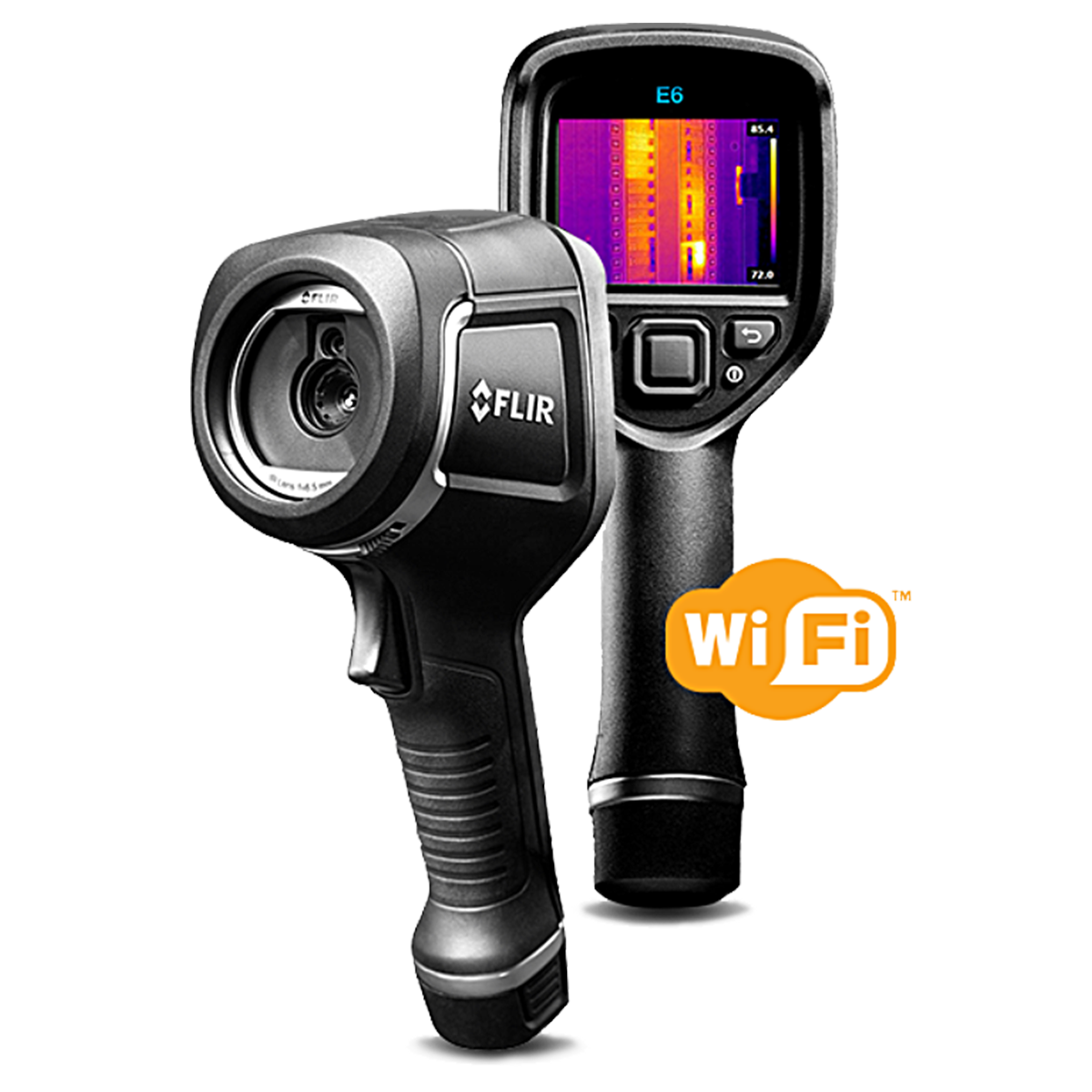

Wi-Fi connectivity to mobile devices via the FLIR Tools Mobile app

IP54 Enclosure provides a high level of protection against dust and water

Applications:

Electrical, mechanical, HVAC and building-related problems

Industrial maintenance, process monitoring, tank levels, steam traps, utility inspections, and building maintenance

Water, moisture, and mold damage restoration

Home building inspections, warm pipe in a wall

Detecting elevated body temperature for screening in public facilities

Allows firefighters to see areas of heat through smoke, darkness, or heat-permeable barriers

Construction and electrical industry

Specialized law enforcement and military applications

Quantity must be 1 or more
Email for Quote

Specifications
Item - Infrared Camera Infrared CameraRemovable Memory Card Yes
Temp. Range (F) - Infrared -4 Degrees to 1022 DegreesFile Formats JPEG
Temp. Range (C) - Infrared -20 Degrees to 550 DegreesThermal and Visible Light Blending Yes
Field of View - IR Camera 45 Degrees Horizontal x 34 Degrees VerticalArticulating Lens No
Focus Distance - Infrared Minimum of 0.25mSpecial Features Lightweight, Multi-Spectral Dynamic Imaging(R) Enhancement
Focus Method AutoMultiple Lens Option No
Thermal Sensitivity - IR Camera60Drop Tested 2m
Detector Resolution - Infrared 240 x 180 PixelsEmissivity Adjustable 0.01 to 1
Display - IR Camera 3 in Color LCDAmbient Temp. Range 10 Degrees to 35 Degrees C
Data Logging - Instrument YesTemp. Accuracy (F) - Infrared +/-3.6 Degrees
Wireless YesTemp. Accuracy (C) - Infrared +/-2 Degrees
NIST Certified NoSeries - IR Camera FLIR EX Series
Spectral Response - Infrared 7.5 to 13umAmbient Temp. Range (F) 50 Degrees to 95 Degrees
Frame Rate - IR Camera 9 HzSafety Rating IEC/EN 60950-1
Picture In Picture YesIncludes Battery, Hard Carrying Case, Power Supply/Charger with Four Plugs, USB Cable
Laser Sighting NoManufacturers Warranty Length 2 yr Limited Warranty, 5 yr Battery, 10 yr Detector
Alarm NoStandards CE/CCC/CSA/PSE/UL
Visual Light Resolution 0.3 MPItem Infrared Camera
Image Notation No NotationIncluded Charger 22UL74
Removable Memory Card YesCharger Replacement22UL74
