GE XL VU 6.1mm x 8.0m Borescope
GE XL VU 6.1mm x 8.0m Borescope
GE XL VU 6.1mm x 8.0m Borescope
GE Inspection Technologies

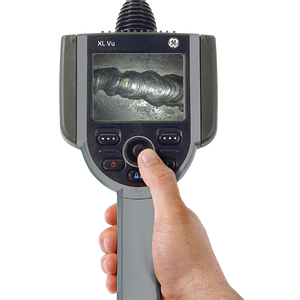

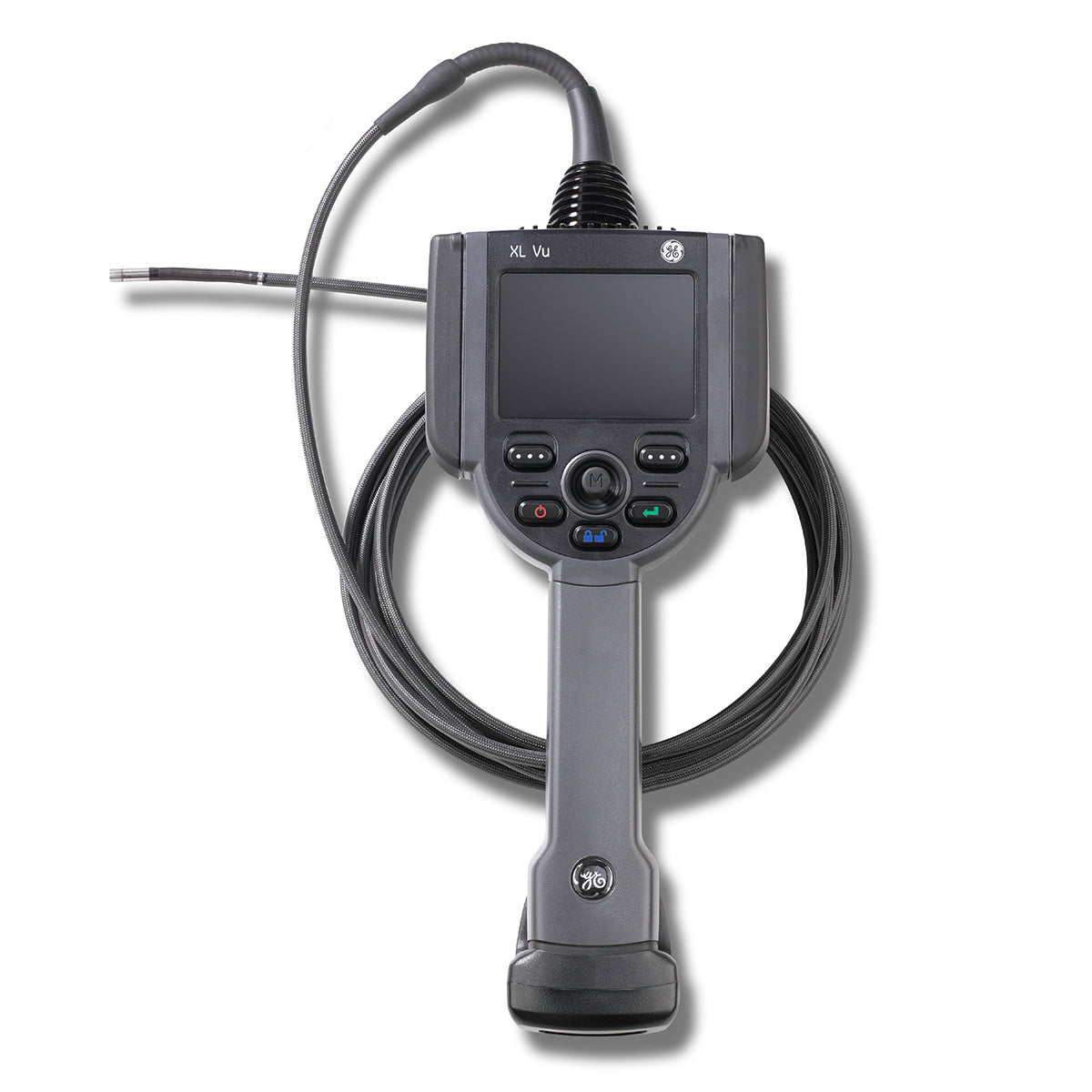

GE XL VU 6.1mm x 8.0m Borescope

Pine Item #55885

Portability
XL Vu VideoProbe system provides inspectors with unparalleled access—without a bulky base unit. Weighing as little as 1.77 kg (3.90 lb), the XL Vu VideoProbe system can easily view anywhere.


Image Quality
GE’s XL Vu borescope utilizes LED illumination to display excellent image quality. You can save clear, accurate still images and motion video to the internal flash memory or removable USB ThumbDrive™.

Features:

StereoProbe and comparison indication measurement

Transflective sunlight readable LCD

The probe operates up to 100°C to gain access faster in high-temperature applications where cooling time is needed

Automated inspection reporting and data tagging software (Menu Directed Inspection)

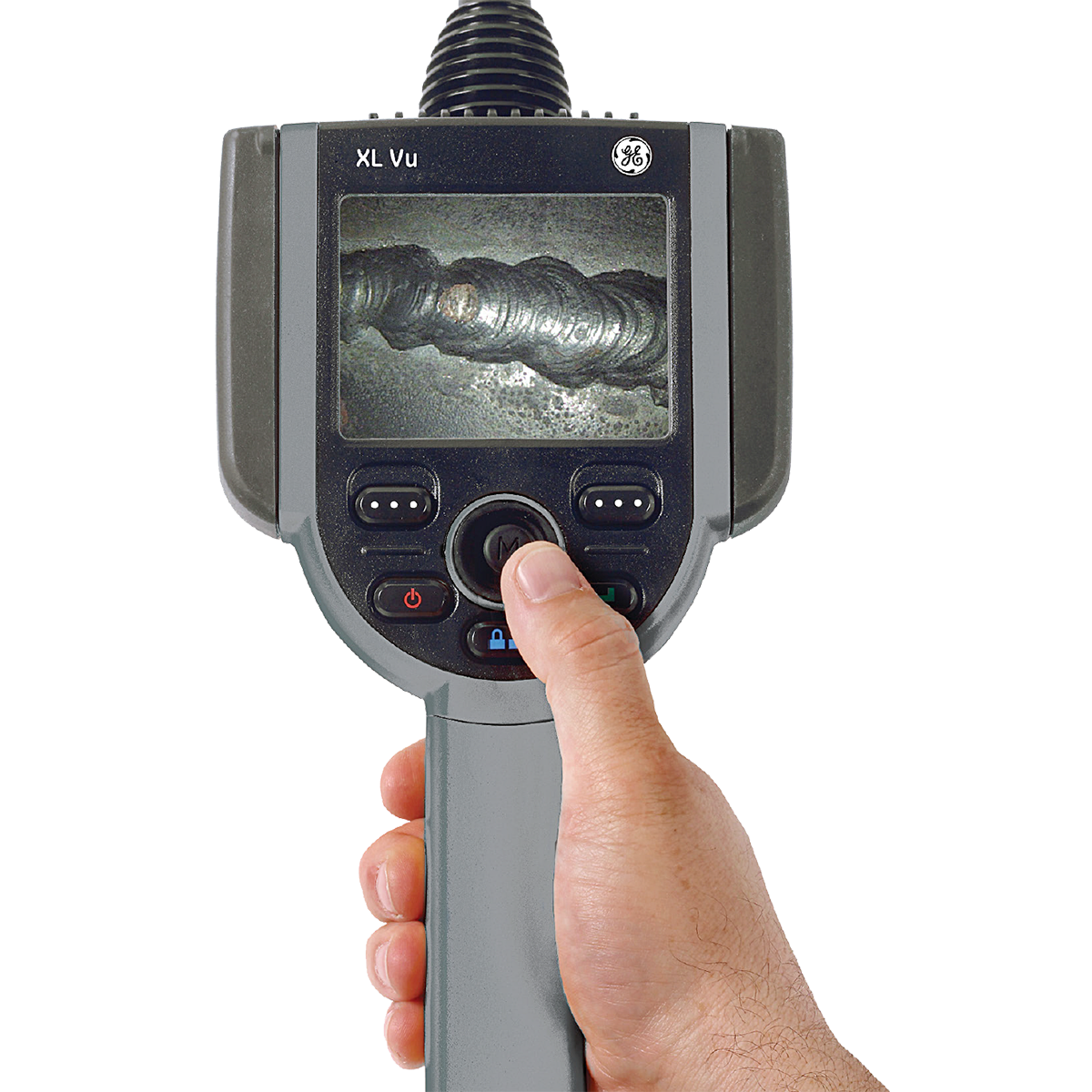

Live on-screen Tip Map aids inspectors in guiding the tip during the inspection. A grid shows the tip direction and helps inspectors maintain orientation or better navigation.

User Interface: Simple drop-down menu-driven operation

Menu navigation using articulation joystick

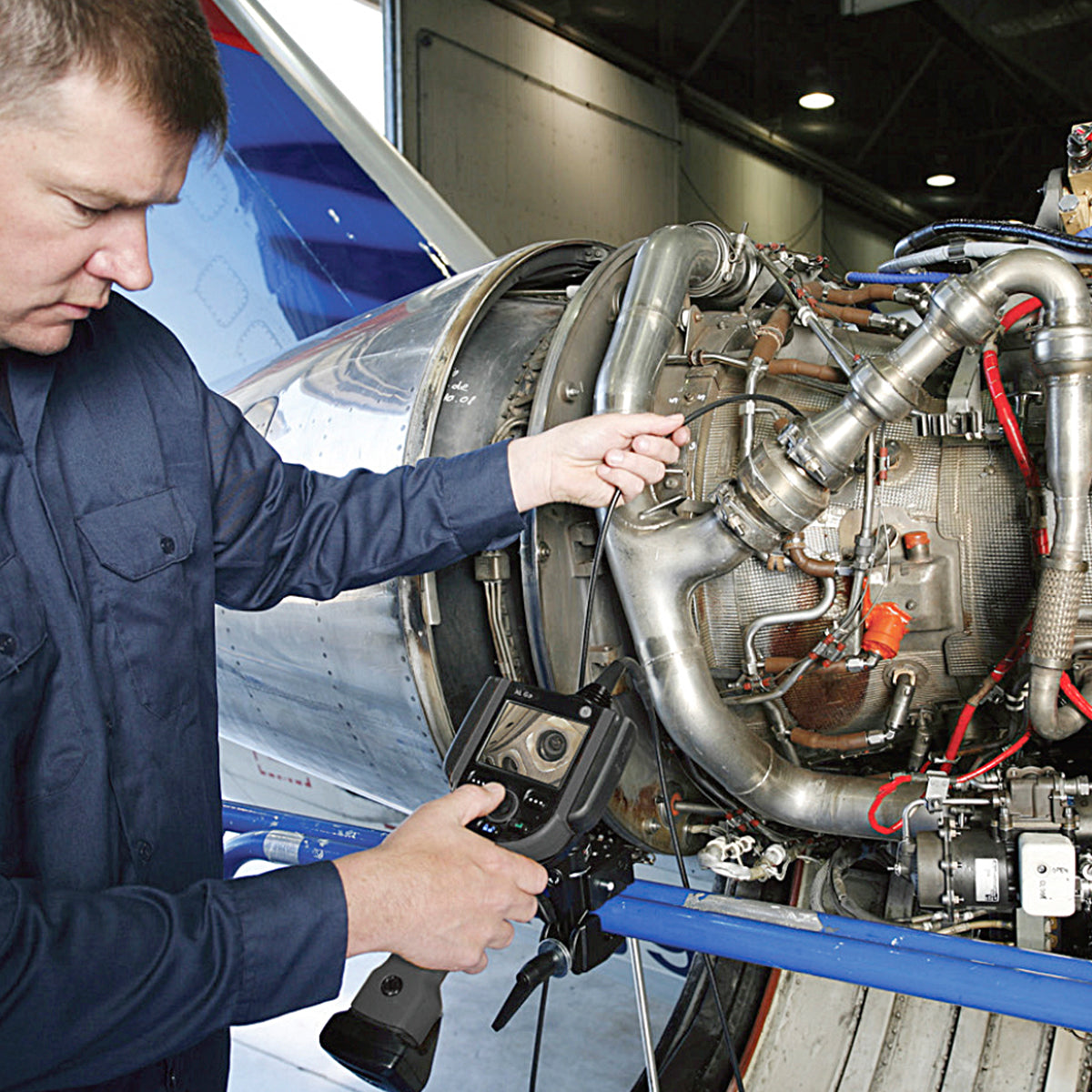

Applications:

Aerospace

Oil & gas

Power generation

Process industries

Wind power

General engineering

Quantity must be 1 or more
Equipment available for both rental and purchase
Request a Quote

Specifications
Tip Operating Temp:-25°C to 100°C (-13°F to 212°F)
Reduced articulation below 0°C (32°F)
System Operating Temp:-20°C to 46°C (-4°F to 115°F)
LCD requires a warm-up period below 0°C (32°F)
Power:8.4 V, 43 Wh, and 86Wh Battery Pack
AC: 90-264 Vac, 47-63 Hz, <1.2 Arms @90 Vac
DC: 10.2 V +5/-3%. 4.9 A
Internal Memory:4 GB Flash memory
Video Port:VGA Video Out
Joystick Control:360° All-Way tip articulation with XpertSteer, bump gesture, menu access, and navigation
Battery Run Time:2 hour/4 hour
IP RatingTested to IP55
Insertion Tube Length and Diameter:6.1 mm diameter and 8m length probes
Manuals & Data Sheets
