Geotech Geosub 2 Controller, CE 120V, Input 300W, DC Output
Geotech Geosub 2 Controller, CE 120V, Input 300W, DC Output
Geotech Geosub 2 Controller, CE 120V, Input 300W, DC Output
Geotech

Geotech Geosub 2 Controller, CE 120V, Input 300W, DC Output

Pine Item #51846

PFAS Accepted Equipment

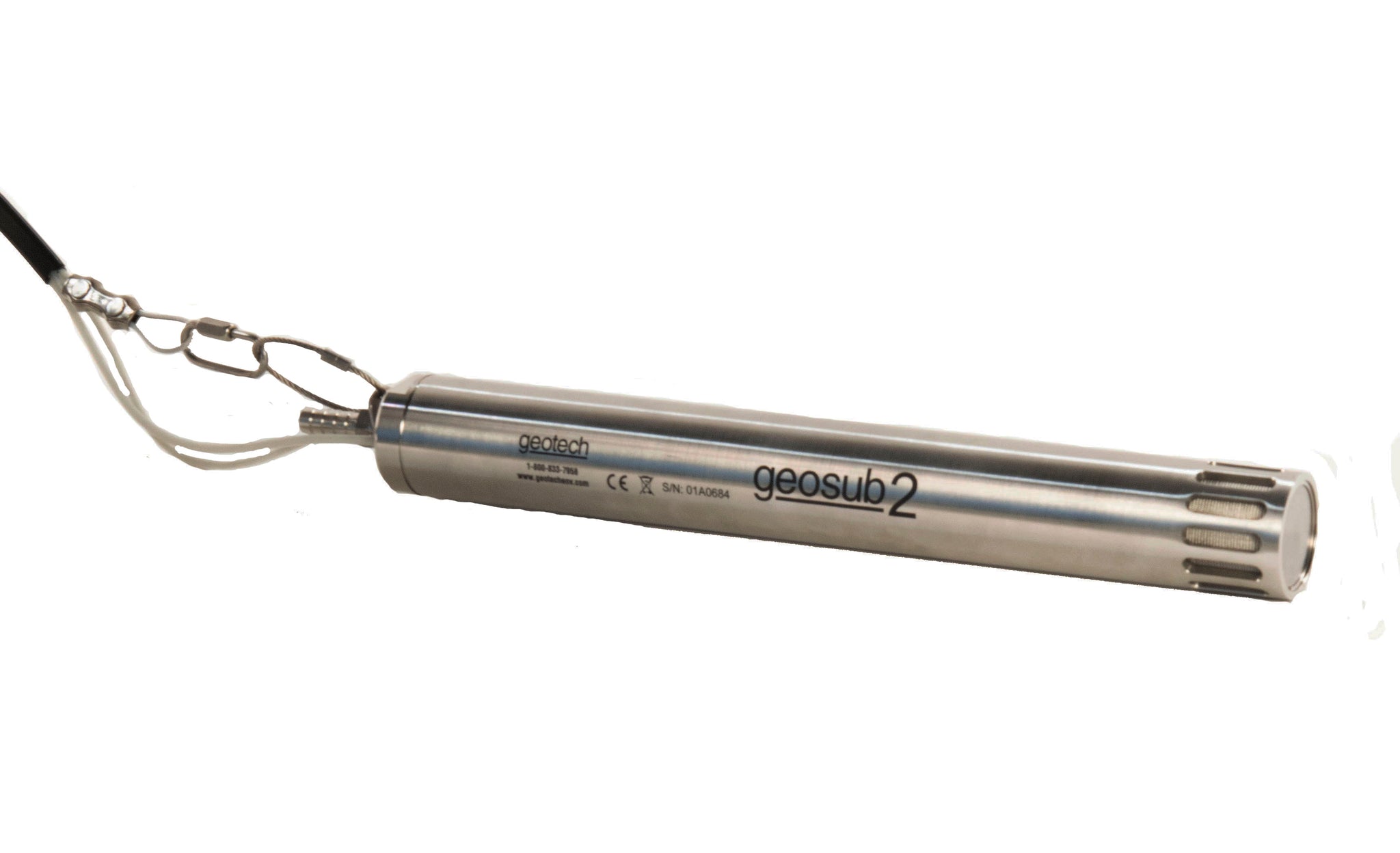

Note: The Geotech Geosub 2 Pump #52320 is a separate item.

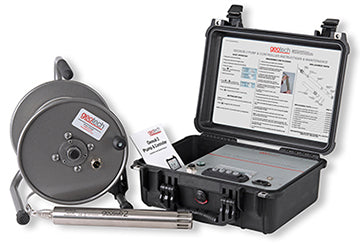

The Geosub 2 Controller is designed specifically for Geotech's Geosub 2 Pump use. It provides a safe, conditioned variable DC output power from an AC power source. Built-in sensing gives the operator accurate and precise control over the pump during sampling events. An average 1000 Watt gasoline powered generator with 1 gallon of gasoline can operate the SS Geosub Controller and Geotech's sampling pump at full power for up to 18 hours continuously (generally, much longer runtimes can be expected as the controller is used to reduce water flow for low flow sampling).

Features:

Converts AC Voltage to variable up to 300 watt DC voltage output

Short circuit protection for your safety

Heavy duty rated power cable for years of service

2-line x 16-character wide temperature range alpha-numeric digital display

Push button Up/Down control

Internal processor saves individual well parameters

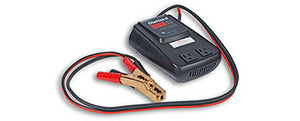

Optional DC to AC Inverter can be connected to a vehicle battery

Quantity must be 1 or more
Equipment available for both rental and purchase
Request a Quote

Specifications

Specifications

Controller
Input Power Range:100-130 Volts AC
50/60 HZ 310 Watts
4.2 amps nominal full load 115 Volts AC
200-250 Volts AC
50/60 HZ 310 Watts
2.1 amps nominal full load 230 Volts AC
Output Power:Variable 0-46V DC @ <300 Watts
Output Power @ Maximum Voltage:10 amps maximum
Operating Temperature:-20°F to 100°F (-29°C to 38°C) ambient air temp.
Humidity:Up to 90% Humidity
Weight of Unit:16.45 lbs. (7.46 kg)
Size of Unit:16" L x 13" W x 7" H (41cm L x 33cm W x 18cm H)
Input Protection:5A CB
