Hach 2100Q Portable Turbidimeter
The 2100Q Portable Turbidimeter offers unsurpassed ease of use and accuracy in turbidity measurement. Only Hach offers this unique combination of advanced features and measurement innovation, giving you accurate results every time.

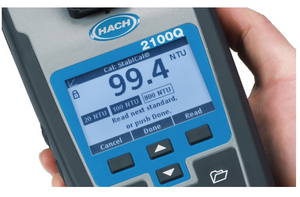

Easy on-screen assisted calibration and verification
Save time and get accurate results with an easy-to-follow interface that eliminates the need for complicated manuals fo perform routine calibrations. Single-standard RapidCalTM calibration offers a simplified solution for low level measurements, while ensuring you meet reporting requirements.
Simple data transfer
Data transfer with the optional USB+Power Module is simple, flexible, and doesn't require additional software. All data can be transferred to the module in XML format and easily downloaded to your computer with a USB connection, providing superior data integrity and availability.
Accurate for rapidly settling samples
The innovative Rapidly Settling TurbidityTM mode provides accurate measurements for difficult to measure, rapidly settling samples. An exclusive algorithm that calculates turbidity based on a series of automatic redings eliminates redundant measurements and estimating.
Convenient data logging
Up to 500 measurements are automatically stored in the instrument for easy access and backup. Stored information includes: date and time, operator ID, reading mode, sample ID, sample number, units, calibration time, calibration status, error messages, and the result.
Optical system for precision in the field
The two-detector optical system compensates for color in the sample, light fluctuation, and stray light, enabling analysts to achieve laboratory-grade performance on a wide range of samples, even under difficult site conditions.
|Accuracy:||± 2 % of reading plus stray light|
|Battery Type:||4 AA alkaline (included)\n4 AA NiMH (optional - rechargeable with USB+Power module)|
|Calibaration Options:||Single-standard RapidCal for 0 - 40 NTU\nFull-range calibration from 0-1000 NTU\nCalibration to degrees of turbidity\nCustom|
|Calibration Logger:||Records the last 25 successful calibrations|
|Calibration Options:||Single-standard RapidCal for 0 - 40 NTU\nFull-range calibration from 0-1000 NTU\nCalibration to degrees of turbidity|
|Data Logger:||500 records|
|Dimensions Metric (H x W X D):||7.7 cm x 10.7 cm x 22.9 cm|
|Display size:||240 x 160 pixels|
|Display type:||Graphic LCD|
|Includes:||Instrument case assembly 4 AA alkaline batteries 6 sample cells StablCal ampule kit silicone oil oiling cloth manual.|
|Instrument enclosure rating:||IP67 (closed lid battery and module compartments excluded)|
|Light Source:||tungsten filament lamp|
|Manual languages:||English French German Italian Spanish Portuguese (BR) Portuguese (PT) Bulgarian Chinese Czech Danish Dutch Finnish Greek Hunga|
|Measurement Method:||Ratio turbidimetric determination using a primary nephelometric light scatter signal (90°) and transmitted light scatter signal|
|Measurement Modes:||Normal (Push to Read) Signal Averaging Rapidly Settling Turbidity|
|Measuring range:||0 - 1000 NTU|
|Operating Conditions (relative humidity):||0 - 90 % (non condensing at 30 °C)|
|Operating Conditions (Temperature):||0 - 50 °C (32 - 122 °F)|
|Path Length:||25 mm|
|Power Requirements:||AC 100-240V 50/60 Hz\n(with Power Module or USB+Power Module)\n4 AA alkaline batteries\n4 AA NiMH batteries (rechargeable with\nUSB+Power Modul|
|Power requirements:||100 - 240 VAC 50/60 Hz (with optional Power or USB+Power module)|
|Power supply:||Optional universal power supply available with Power or USB+Power module|
|Regulatory:||EPA Method 180.1|
|Repeatability:||± 1 % of reading or 0.01 NTU whichever is greater|
|Resolution:||0.01 NTU on lowest range|
|Response Time:||6 s in normal reading mode|
|Sample Cell Compatibility:||25 mm x 60 mm round|
|Sample requirements:||15 mL (0.5 oz)|
|Signal Averaging:||Selectable on/off|
|User Interface Languages:||English French German Italian Spanish Portuguese (BR) Portuguese (PT) Bulgarian Chinese Czech Danish Dutch Finnish Greek Hunga|
|Verification Logger:||Logs the last 250 successful verifications|
|Weight:||530 g (1.17 lbs) without batteries|
