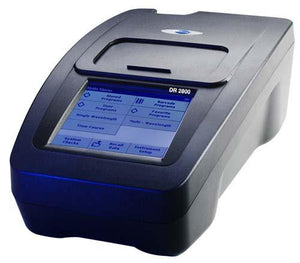

Hach DR 2800 Portable Spectrophotometer
More than 240 Analytical Methods and Chemistries
The Hach DR 2800 Portable Spectrophotometer can be used for more than 240 analytical methods. (Test parameters are listed on page 3.) These methods include more than 30 TNTplus™ reagent vial tests that provide innovative barcode labeling for reliable, automatic method detection. All of the chemistries and supplies needed for these tests are available from Hach. The spectrophotometer can store up to 50 user programs and 500 data points, including sample and operator ID.
Use a USB Memory Stick to Update the Instrument or Transfer Data
Easily update DR 2800 spectrophotometer systems and transfer measurement data with a USB memory stick. Use it to stay current as Hach releases new test methods and chemistries. Two USB ports on the instrument allow for a computer to be connected in one port, when used with an upcoming software package, while the other is used to connect the spectrophotometer to a memory device or hand-held bar code scanner.
Small Footprint and Large Touch Screen Interface
The small footprint of the DR 2800 spectrophotometer"”only 8.7 by 13.1 inches"”lets it easily fit into any lab as well as being completely portable. The touch screen display is intuitive to use and ergonomic in design.
Runs on Either Line Power or Battery Power
Use the DR 2800 spectrophotometer in the lab with regular line power or in the field with the optional lithium-ion battery
Accommodates Multiple Cell Sizes and Sample Delivery Methods
The DR 2800 spectrophotometer holds eight types of Hach cells"”including 1-in. square cells, 1x5-cm cells, 13-mm round vials (TNTplus), and 16-mm round vials. Three adapters are included with the spectrophotometer for other vial types such as 1-in. round/AccuVac ® cells, multi-path 1-in./1-cm cells, 1x1-cm square cells, and Pour-Thru™ cells. The optional Pour-Thru cell kit is ideal for rapid liquid methods when high throughput of analysis is needed.
Features:
More than 240 Analytical Methods and Chemistries
Use a USB Memory Stick to Update the Instrument or Transfer Data
Small Footprint and Large Touch Screen Interface
Runs on Either Line Power or Battery Power
Accommodates Multiple Cell Sizes and Sample Delivery Methods
Data Logger: | DR2800: 500 Points |
Data Storage: | DR 2800: 500 points |
Display: | Backlit Grayscale LCD Touch Screen |
Enclosure Rating: | IP42 |
Max. operating humidity: | 80 |
Operating Conditions: | 10 to 40 °C (50 to 104 °F); 80% relative humidity non-condensing maximum |
Operating Mode: | Transmittance (%) Absorbance and Concentration |
Optical System: | Reference beam spectral |
Photometric Accuracy: | 5 mAbs at 0.0-0.5 Abs |
Photometric Accuracy 2: | 1 % at 0.50-2.0 Abs |
Photometric Linearity: | < 0.5 % up to 2 Abs |
Photometric Linearity 2: | = 1 % at> 2 Abs |
Photometric Measuring Range: | ± 3 Abs in the wavelength range 340 to 900 nm |
Power Requirements (Hz): | 50/60 Hz |
Power Requirements (Voltage): | 110 - 240 V AC |
Power Supply: | Line/Battery (optional) |
Sample Cell Compatibility: | 1-in. square; 1-in. round; 1 cm square; 5x1 cm rectangular; 13 mm round; 16 mm round; multipath 1-in./1 cm; Pour-Thru with 1-in./1 cm pathle |
Spectral bandwidth: | 5 nm |
Storage Conditions: | -40 °C to 60 °C ; 80% relative humidity |
Stray Light: | < 0.2 %T at 340 nm with KV450/3; <0.1 %T at 340 nm with NaNO2 |
User Programs: | DR 2800: 50 |
Wavelength Accuracy: | ± 1.5 nm |
Wavelength Calibration: | Automatic |
Wavelength Range: | DR 2800: 340 to 900 nm |
Wavelength Resolution: | 1 nm |
Wavelength Selection: | Automatic: based on selected program method Automatic: based on barcode printed on TNTplus reagent vials (DR 2800 only) Manual: in all mod |
Dimension
US | Metric | |
Dimensions | 5.4 in x 8.7 in x 13.1 in | 137 mm x 220 mm x 332 mm |
Weight
US | Metric | |
Weight: | 9.66 lbs. | 4.38 kg |
