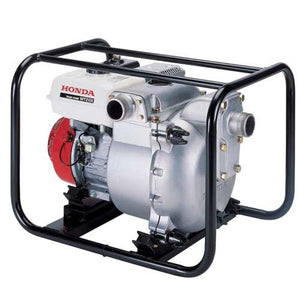

Honda Trash Pump Wt-20
Honda

Honda Trash Pump Wt-20

Pine Item #51897

2 inch pump powered by the legendary 5.5 Hp Honda Industrial engine this new Trash Pump offers a unique Conical impeller for exceptional priming and pumping performance. Features include, easy maintenance wear plate, wear resistant seal, easy impeller removal and standard tool for pump maintenance, light weight aluminum pump housing, isolation engine mounting, standard suction hose strainer, full frame and oil alert.

Description

WB20X - 2 inch, 118cc 152 gal per minute Centrifugal, Self-priming Water Pump

Engine GX120, 4.0 HP, OHV Displacement 118 cc Bore and Stroke 2.4" x 1.7" Compression Ratio 8.5:1 Oil Alert Standard Pump Type Centrifugal, Self-Priming Volute Rigid Mounted Cast Iron Impeller Cast Iron Mechanical Seal silicone Carbide/Silicon Carbide Priming Time 110 sec. at 16.4 ft. Drive System Direct Discharge Capacity 152 gals./min. Suction Port Diameter 2.0" NPT Discharge Port Diameter 2.0"" NPT Total Head Lift 92 ft. Suction Head Lift 26 ft. Maximum Pressure 40 psi Solids Handling N/A Dimensions 17.90" x 14.4" x 16.5" Dry Weight 46.0 lbs Optional Strainer Part # 78325-YG3-000

Honda's OHV Engine Cast Iron Impeller and Volute Abrasion-Resistant silicone Carbide Seal 2" Suction/Discharge Ports Heavy-Duty Full Frame Protection Pumps up to 152 Gallons/Minute Lightweight Aluminum Pump Case Rubber Mounts Minimize Vibration 3 Year Residential Warranty 1 Year Commercial Warranty

Honda's general purpose pumps offer the best features at a value price: Honda easy starting GX commercial grade engines Full frame protection Fixed-mounted cast iron volute and impeller Silicon-carbide seals Anti-vibration mounts Rugged performance Add in a full 3 year warranty, and you've got a pump that's unmatched in quality and value.

Pump Type - Centrifugal, Self-priming



Specifications / Manuals

Manufacturer Honda
Style Centrifugal, Self-priming
Model Number WB20X
Engine Type GX120
Port Diameter Suction Port: 2"" NPT - Discharge Port: 2"" NPT
Discharge 152 GPM
Max Pump Pressure 40 psi
Fits these Models Fits Strainer: 78325-YG3-000
Residential Warranty 3 years
Commercial Warranty 3 years
Emissions Compliance 49 State Compliant
Dry Weight 46
Overall Dimensions 17.9"" x 14.4"" x 16.5""
