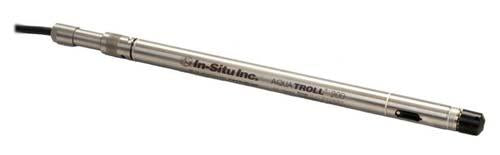

In-Situ Aqua TROLL 200 Data Logger
In-Situ

In-Situ Aqua TROLL 200 Data Logger

Pine Item #54567

The Aqua TROLL 200 Data Logger measures and records water level, pressure, conductivity, and temperature. A unique conductivity cell design allows for a wide, accurate measurement range in a narrow diameter instrument. Titanium construction resists corrosion, ideal for coastal, remediation, and mine water monitoring projects.

Available in pressure ranges up to 1153 ft (351 m) for vented configurations and 1120 ft (341 m) for non-vented configurations. Get easy data access via telemetry or direct-read Rugged Cable (sold separately).

Features:

Vented (gauged) or non-vented (absolute) pressure measurement

Sub-1 inch diameter (.72 in; 1.83 cm)

All titanium electrodes and housing

Full range conductivity with optimum accuracy – 5 to 100000 µS/cm

Dynamic density compensation for accurate pressure measurements

Flexible communication protocols (4-20 mA SDI-12 RS-485)

NIST calibration report for guaranteed accuracy

Rugged Twist-lock cable (sold separately)

Quantity must be 1 or more
Equipment available for both rental and purchase
Request a Quote

Specifications

Technical Specifications

Dimensions12.4 x 0.72 in
Weight1 lbs
Protocols4-20 mA Modbus/RS485 SDI-12
Memory4.0 MB
Logging ModesEvent Linear Linear Average
Battery Type3.6 V lithium
Diameter1.83 cm (0.72 in.) OD
Warranty2 Year
Conductivity Sensor Range5 to 100000 µS/cm
Conductivity Sensor Accuracy±0.5% + 1 µS/cm
Battery Life5 years
Level/Depth/Pressure Sensor Accuracy @ 15° C±0.05% Full Scale
Level/Depth/Pressure Sensor Range100 psia: 60 m (197 ft) 100 psig: 70 m (231 ft) 15 psig: 11 m (35 ft) 30 psia: 11 m (35 ft) 30 psig: 21 m (69 ft) 300 psia (200 m (658
