Instantel Minimate

Pine Item #54497

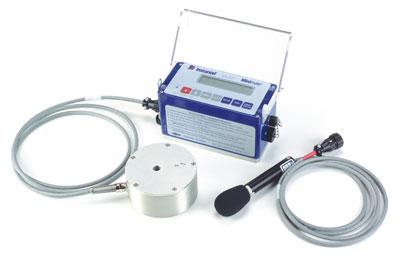

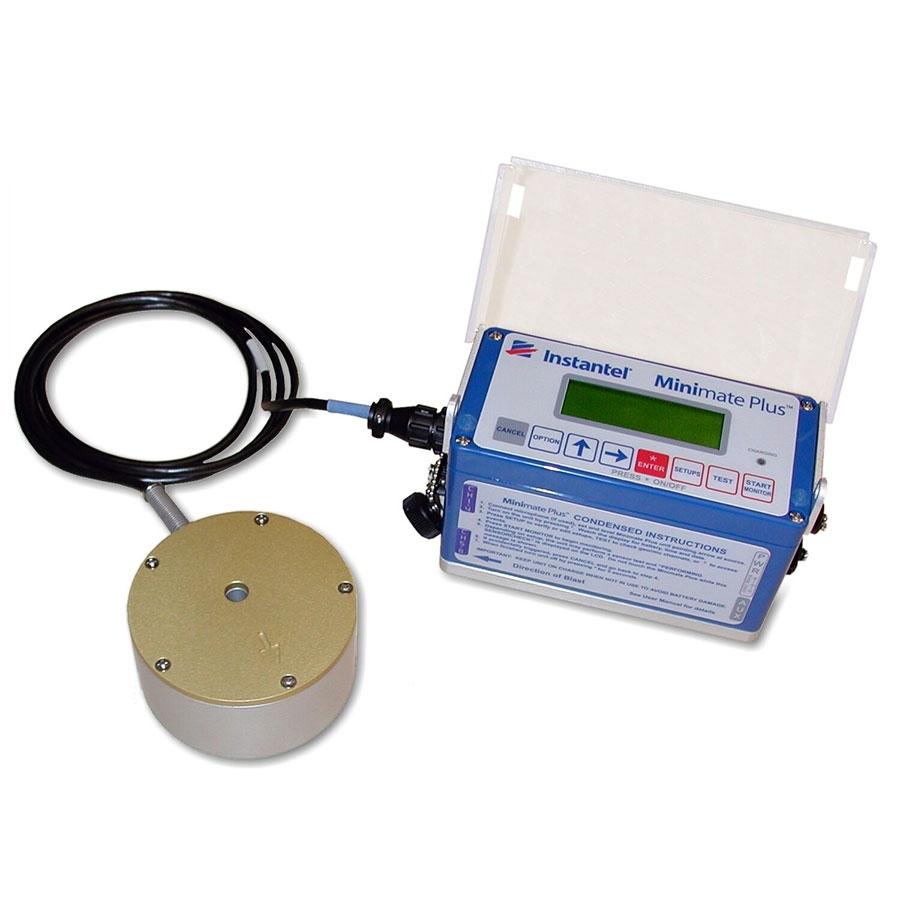

The Instantel ® Minimate ® vibration and overpressure monitor is a cost-effective solution for day-to-day compliance monitoring of blasting operations, and has become the mini-seismograph of choice for blasting professionals worldwide. With the quality and rugged reliability consistently provided by Instantel, the Minimate system is an economical seismograph that everyone can afford.

Features:

1024 S/s rate for compliance accuracy from 2 to 250 Hz.

AutoRecord record stop mode allows the monitor to continue recording as long as activity cycles above the trigger level.

Easy-to-use keypad with intuitive menu-driven operation.

Monitor start/stop timer.

Non-volatile memory with 40 - event storage capacity.

Rechargeable gel cell battery with 240 hour capacity (continuous monitoring).

Small rugged package for portability and easy setup.

Applications:

1024 S/s rate for compliance accuracy from 2 to 250 Hz.

AutoRecord record stop mode allows the monitor to continue recording as long as activity cycles above the trigger level.

Easy-to-use keypad with intuitive menu-driven operation.

Monitor start/stop timer.

Non-volatile memory with 40 - event storage capacity.

Rechargeable gel cell battery with 240 hour capacity (continuous monitoring).

Small rugged package for portability and easy setup.

Quantity must be 1 or more
Equipment available for both rental and purchase
Request a Quote

Specifications

Technical Specifications

ChannelsMicrophone and Triaxial Geophone
Vibration MonitoringNULL
Range100 to 142 dB (250 Pa (0.036 PSI) Peak)
Resolution2 Pa (0.00029 PSI)
Accuracy0.4 dB at 30 Hz and 127 dB
Transducer Density2.08 g/cc (130 lbs/ft3)
Frequency Range2 to 250 Hz
NULLNULL
Air Overpressure MonitoringNULL
Weighting ScalesLinear
Frequency Response2 to 250 Hz
Waveform RecordingNULL
Record ModesManual Single-shot Continuous
Seismic Trigger0.25 to 127 mm/s (0.01 to 5 in/s)
Acoustic Triggers106 to 142 dB
Sample Rate1024 S/s per channel (independent of record time)
Record Stop ModesFixed record time Instantel® AutoRecord record stop mode
Record Time1 to 10 seconds (programmable in one-second steps)
AutoRecord TimeAuto window programmable from 1 to 9 seconds plus a 0.25 second pre-trigger. Event is recorded until activity remains below trigger level f
Cycle TimeLess than 5 seconds per second of recording time
Storage Capacity40 one-second events
Physical SpecificationsNULL
BatteryRechargeable 6V sealed gel cell - capacity for 240 hours continuous monitoring
User Interface7-key keypad with domed tactile keys
Display2-line x 20-character LCD
PC InterfaceRS-232
LCD Operating Temperature10 to 50ºC (14 to 122ºF)
Electronics Operating Temperature-20 to 60ºC (-4 to 140ºF)
Remote CommunicationsCompatible with Telephone GSM Cellular RF Satellite and Short-haul modems

Dimension

USMetric
Dimensions3.2 x 3.6 x 6.3 in81 x 91 x 160 mm

Weight

USMetric
Weight3 lbs 1.4 kg
