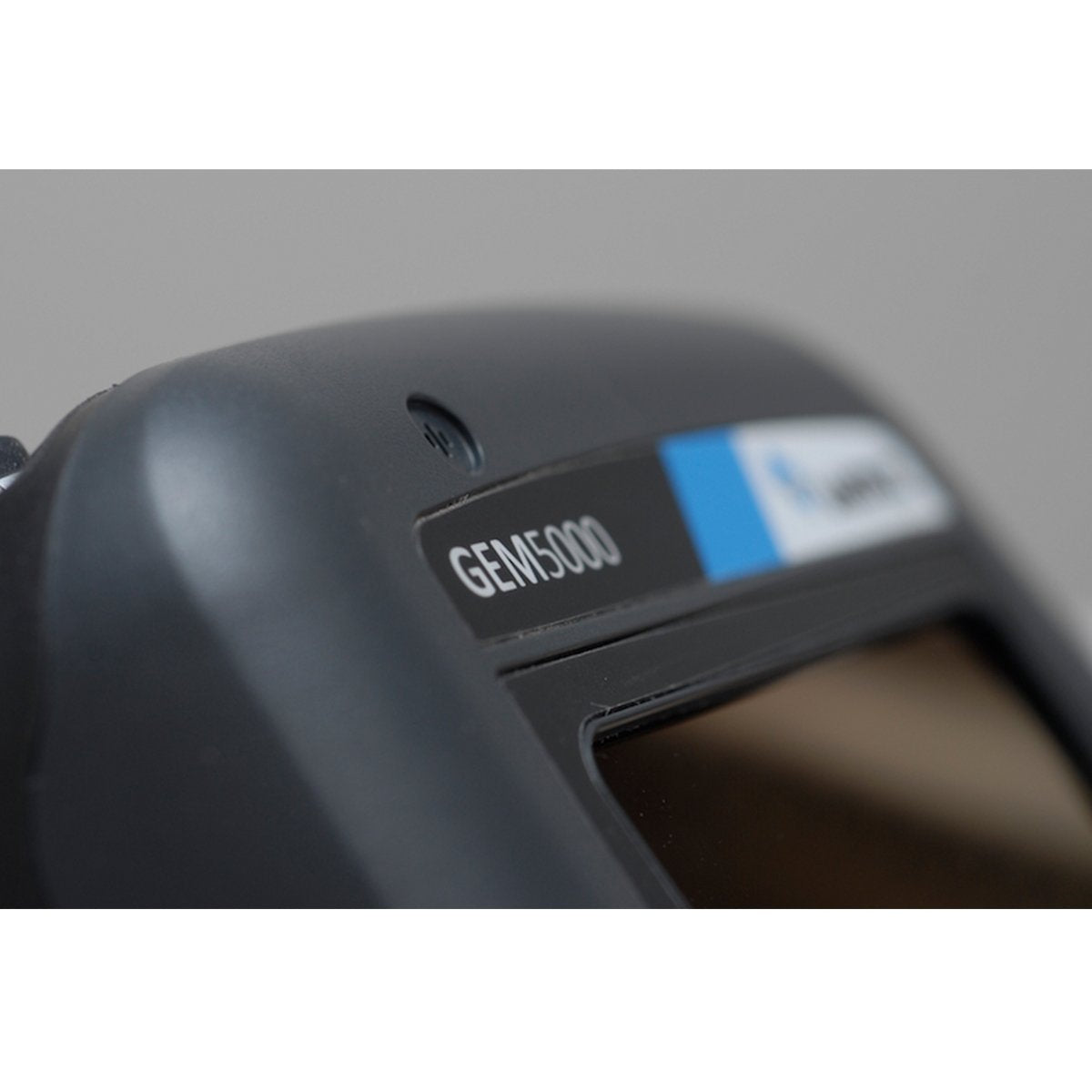

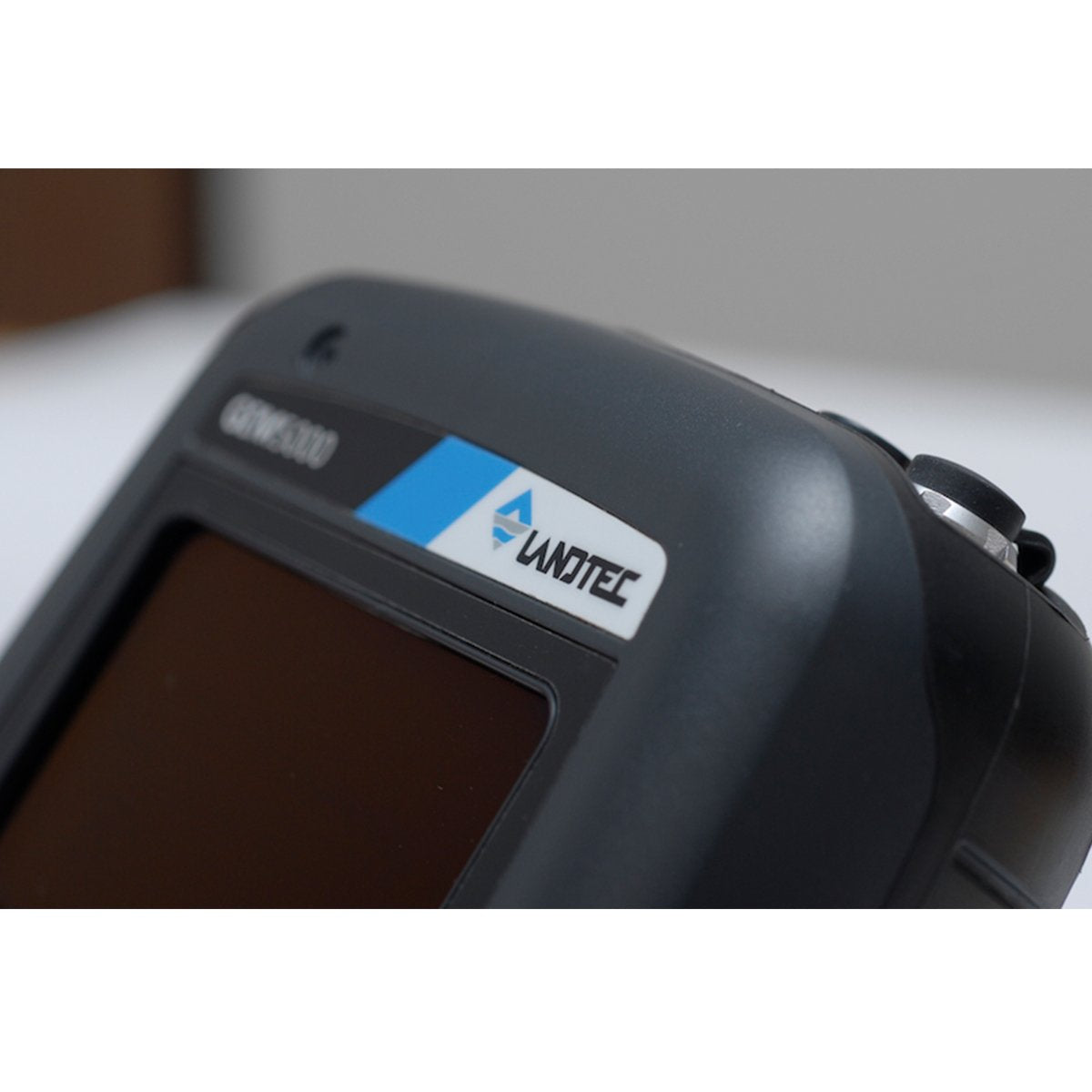

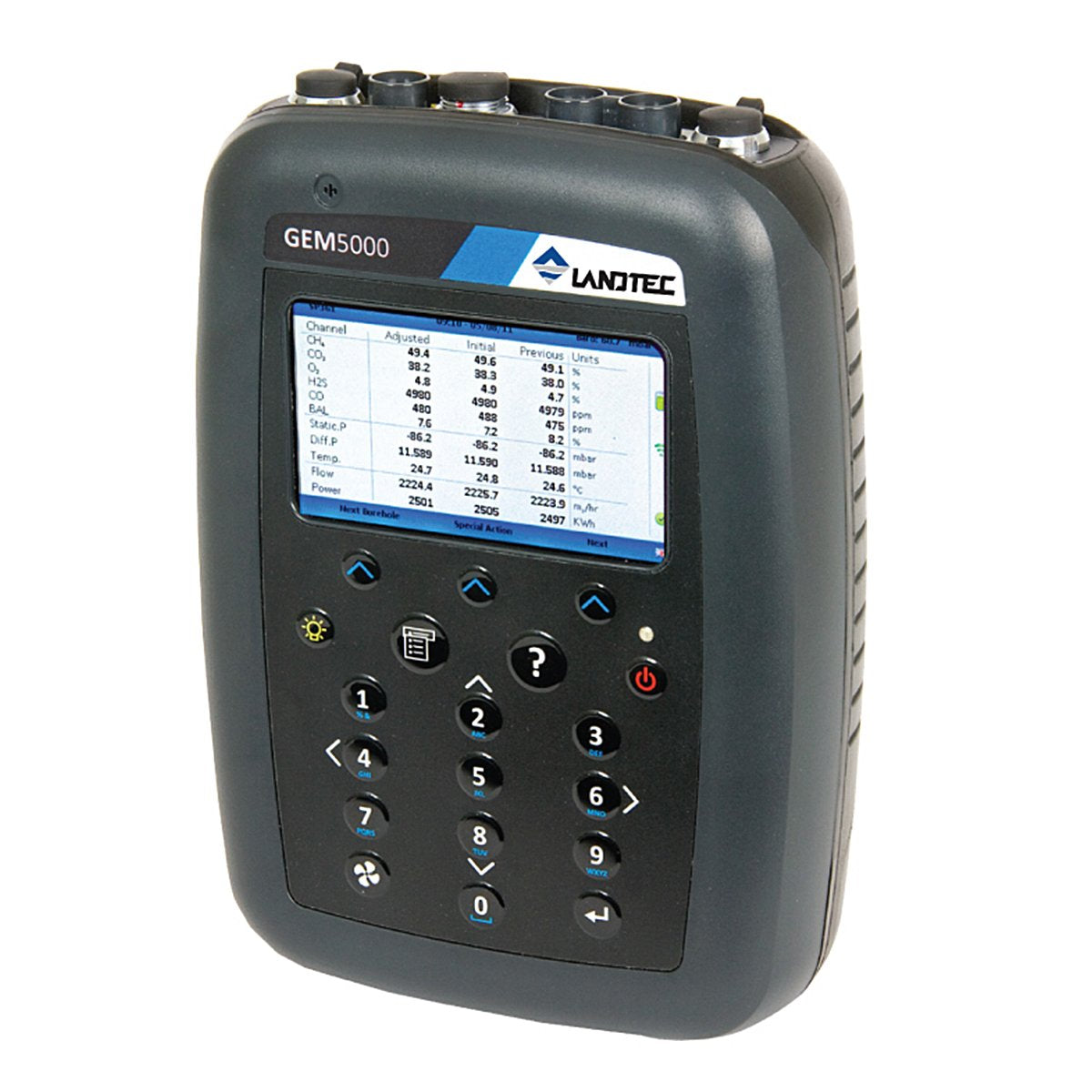

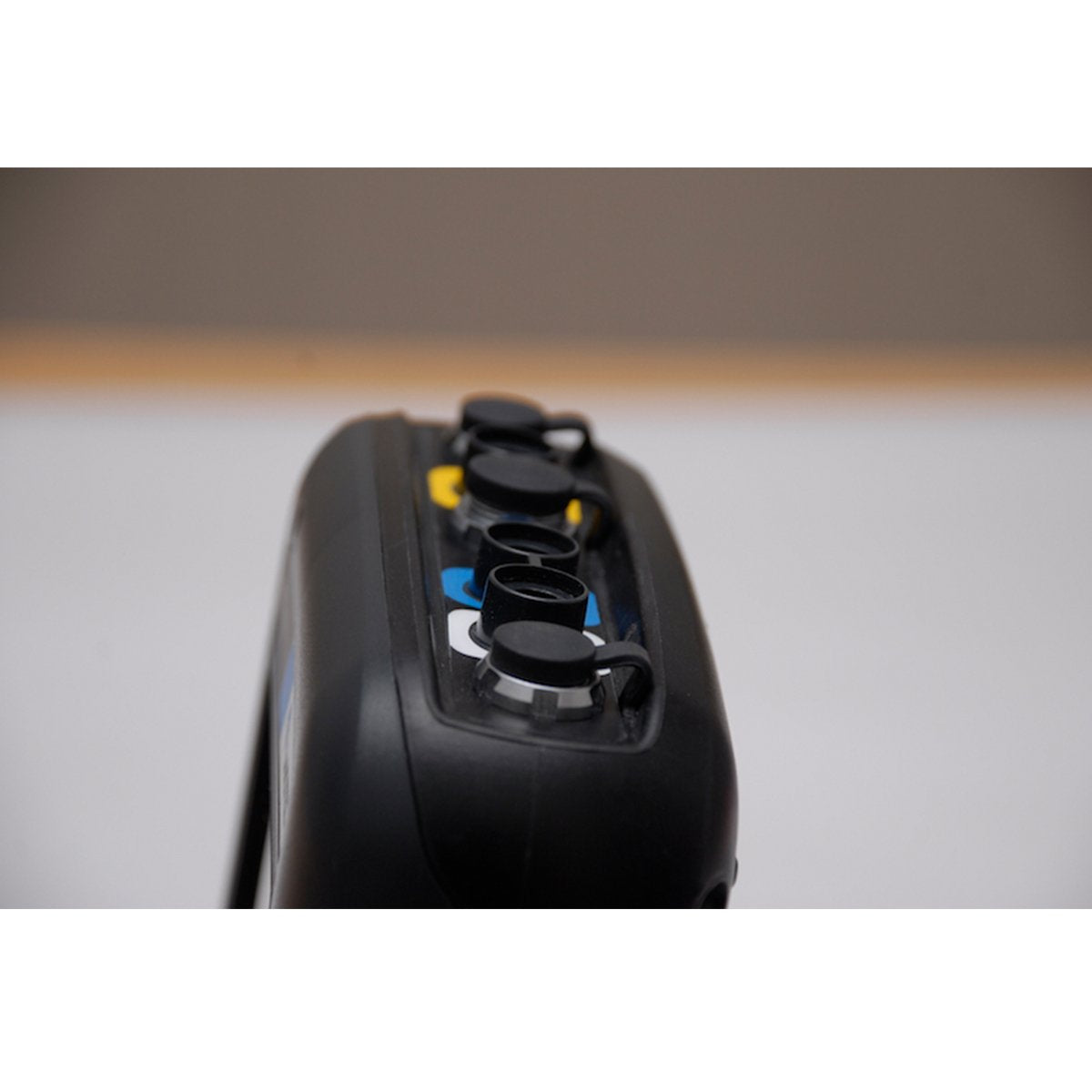

Landtec GEM 5000 Plus Landfill Gas Monitor

Pine Item #51158
The Next Generation of GEM™ Instrument
The GEM™5000 is designed specifically for use in landfills to monitor Landfill Gas (LFG) Collection & Control Systems. The GEM™ 5000 samples and analyzes the methane, carbon dioxide and oxygen content of landfill gas with options for additional analysis.

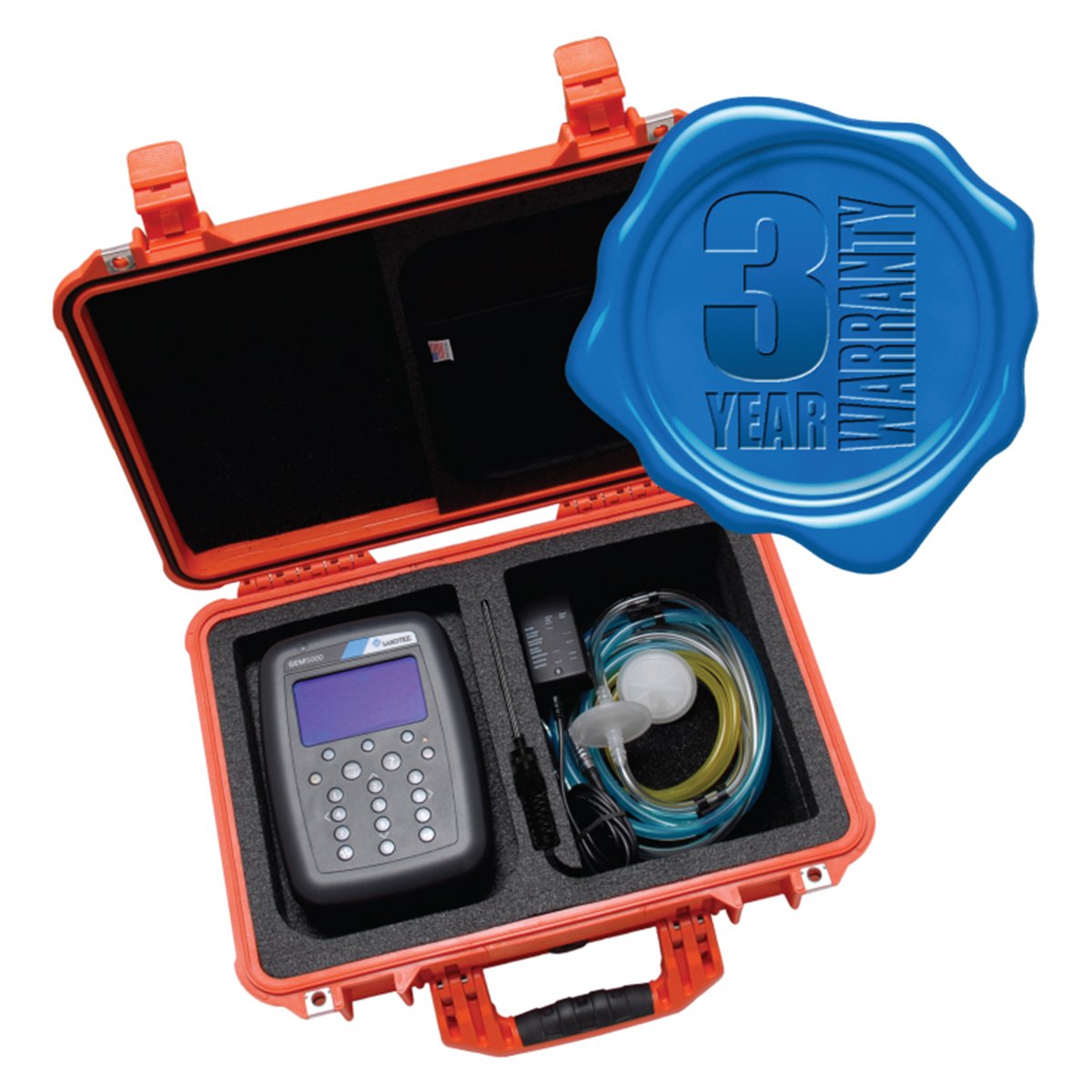

GEM5000 Complete Package Includes:
The instrument, hoses, heavy-duty water trap filter, soft case, A.C. battery charger, electronic manual accompanies the software, LANDTEC System Gas Analyzer Manager (LSGAM) software, USB download cable, and hard-case. Reads: Methane, Carbon Dioxide, Oxygen, temperature (when used with optional probe), atmospheric pressure, differential pressure and calculates gas flow.

NAV and Plus model packages also include more features such as GPS and additional gas measurements
Features:

Measures % CH4, CO2 and O2 Volume, static pressure and differential pressure

Calculates balance gas, flow (SCFM) and calorific value (KW or BTU)

High Accuracy and Fast Response Time

Lighter and More Compact

Certified intrinsically safe for landfill use

Calibrated to ISO/IEC 17025

Applications:

Designed specifically for use in landfills to monitor landfill gas (LFG) extraction systems, flares, and migration control systems.

Can be used for monitoring subsurface migration probes and for measuring gas composition, pressure, and flow in gas extraction systems

Environmental compliance

Quantity must be 1 or more
Equipment available for both rental and purchase
Request a Quote

Specifications
Gases MeasuredCH4, CO2, O2, CO, H2S
Operating Temperature Range14°F – 122oF (-10oC to +50oC)
Battery LifeTypical use 8 hours from fully charged
Charge TimeApproximately 4 hours from complete discharge
Pump FlowTypically 550cc/min
Pump Flow with 80 in. H2O VacuumApproximately 80cc/min
