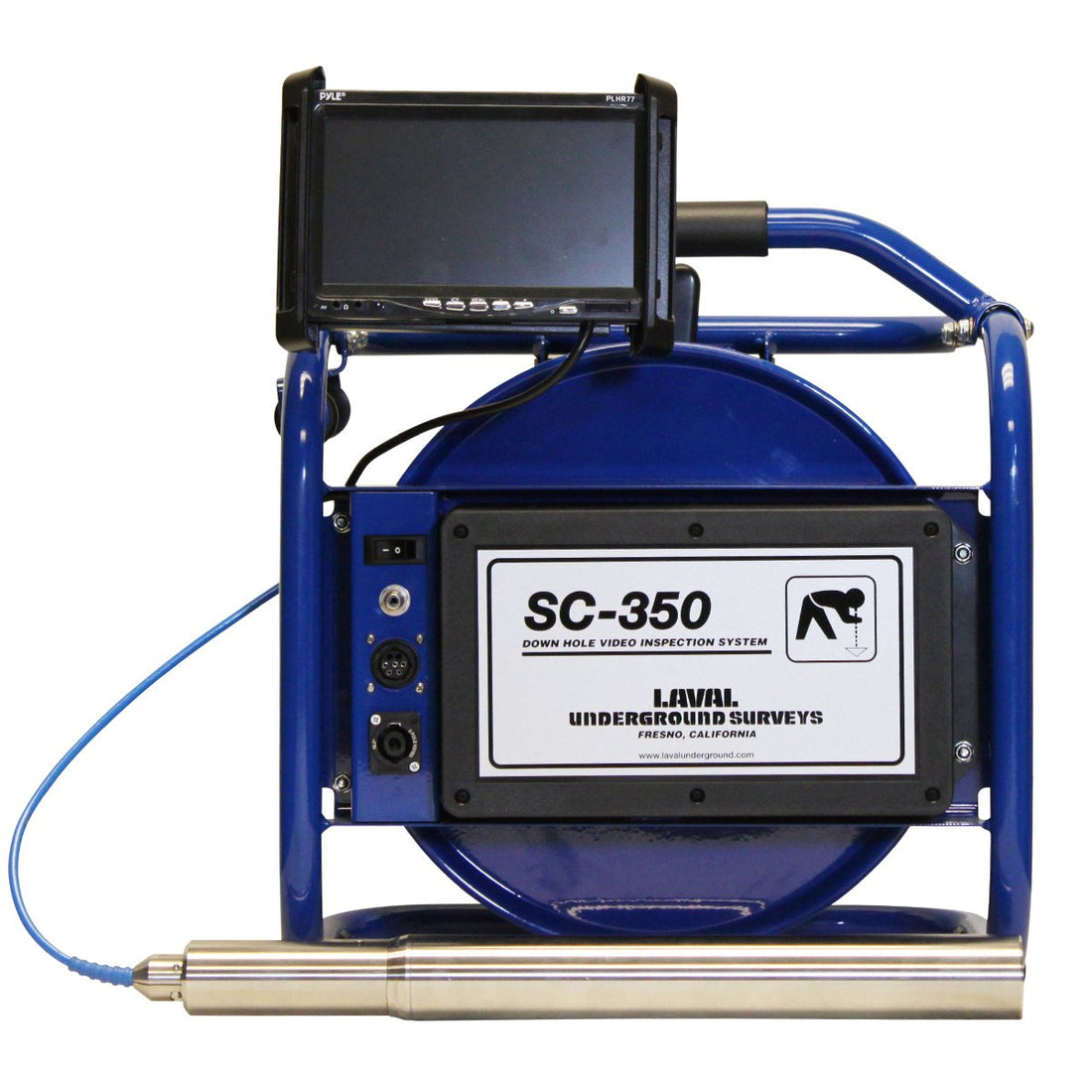

Laval SC-350 Inspection Camera & SC350/500 9" Monitor
Laval Underground Surveys

Laval SC-350 Inspection Camera & SC350/500 9" Monitor

Pine Item #55657

The SC-350 is an ultra-light, compact, camera system with the SC-166 water well camera designed for water wells, boreholes, and vertical shafts as small as 2 inches (5 cm) to 10 inches (25 cm) in diameter Additional lighting accessories are available to expand the viewing capabilities. The winch is manually operated with a collapsible handle to make it completely compact, portable and easily shippable. The brake lever allows the user to stop the reel at any point for a thorough inspection.

The system comes standard with the winch, control center, monitor, SC-166 Camera, and power cable. The SC-350 is also compatible with Laval's R-Cam line of equipment which allows the option to upgrade to an R-Cam System or complement their existing R-Cam.


Ultra-Light, Compact and Portable

Survey Water Wells, Boreholes, and Vertical Shafts from 2 inches (5 cm) to 10 inches (25 cm)

Manually Operated Winch with Collapsible Handle

Braking System allows 360 degree Stopping Capability

Standard System Includes: Winch, Control Center, Monitor, Camera, and Power Cable

Completely Compatible with R-Cam Product Series, easily upgrade the system or compliment an existing R-Cam

Full Line of SC-350 Accessories including DepthCounter Tripod Assembly Available

Quantity must be 1 or more
Translation missing: en.products.product.equipment_available
Request a Quote


Technical Specifications

Cable350 feet (107 meters) or 500 feet (152 meters) of Kevlar Reinforced Coaxial Cable
Cable HeadDetachable Laval Quick-Connect Cable Head, Pressure Rated to 5,000 PSI with Built in Strain Relief
DriveManual Hand Crank Reel with Collapsible Handle for Maximum Portability
Power Supply12VDC Power Cable. Optional 12V Battery Pack or 120VAC/220VAC Adaptor
BrakeInterlocking, Manual Brake with Actuator Lever for 360 degree Stopping Capability
Dimensions17 Inches High (43 cm), 15.5 inches Wide (40 cm), 15 inches Deep (39 cm)
Weight22 lbs (10 kg) without cable. 30 lbs (13.6 kg) with 350 feet (107 m) and 33 lbs (15 kg) with 500 feet (152 m)
Monitor7 inch LCD Color Monitor with Adjustable Mounting Bracket
Depth CounterEncoder Ready, On-screen Depth Display measured in feet and tenths or meters with Optional Tripod
