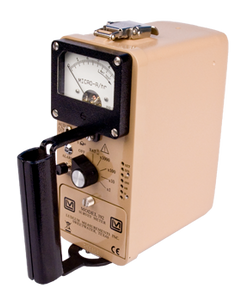

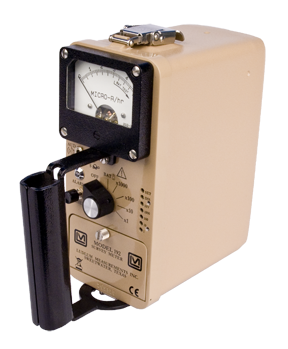

Ludlum 192 Micro Rad Meter

Pine Item #54483

The Ludlum 192 Micro R Meter is a low level (Micro R) gamma meter. It features 4 ranges, auto adjust alarm settings and 2' x 1' sodium iodide (naI) T1 scintillator.

The 192 Micro R Meter's sensitivity typically is 700 cpm/microR/hr (Cs-137 gamma).

This unit is micro-processor based and has total counting range from 0-5,000  µR/hr.



Features:

Reset: Push-button to zero meter and also re-accumulate backround data and recalculate the alarm deviation.

Response: Toggle switch fro FAT (4 seconds) or SLOW (22 seconds) from 10% to 90% of final reading.

Quantity must be 1 or more
Translation missing: en.products.product.equipment_available
Request a Quote

Specifications

Technical Specifications

AudioBuilt in unimorph speaker with ON/OFF switch (greater than 60 dB at 2 feet)
Temperature Range-4°F (-20° C) to 122°F (65°C)
Power2 each \D\""" cell batteries (housed in sealed compartment that is externally accessible)
Meter2.5\""" (6.4cm) arc 1 mA analog type
Battery LifeTypically 600 hours with akaline batteries. Battery conitidion 600 hours with both alka

Dimension

USMetric
Dimensions7.8 H x 3.5\""" W x 8.5\""" L\"""19.8 cm H x 8.9cm x 21.6 cm L

Weight

USMetric
Weight4.5 lbs2.1 kg
"""
