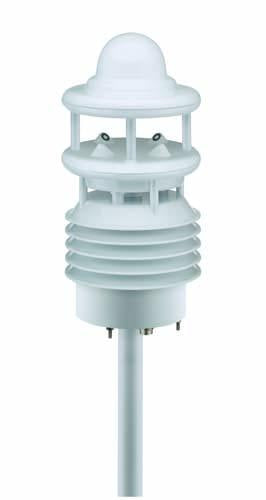

Lufft WS600 Compact Weather Station
From the WS product family of professional intelligent measurement transducers with digital interface for environmental applications.
WS600-UMB Compact Weather Station for measuring of air temperature, relative humidity, air pressure, wind direction and wind speed. Relative humidity is measured by means of a capacitive sensor element; a precision NTC measuring element is used to measure air temperature. Ultrasonic sensor technology is used to take wind measurements. Measurement output can be accessed by the following protocolls: UMB-Binary, UMB-ASCII, SDI-12, MODBUS One external temperature or rain sensor is connectable.
Air Temperature & Humidity
Temperature is measured using a highly accurate NTC-resistor, while humidity is measured using a capacitive humidity sensor. Both sensors are located in a ventilated radiation shield to reduce the effects of solar radiation.
Absolute air pressure is measured using a built-in MEMS sensor. The relative air pressure referenced to sea level is calculated using the barometric formula with the aid of the local altitude, which is user-configurable on the equipment.
Wind Speed & Direction
The wind sensor uses four ultrasound sensors which take cyclical measurements in all directions. The resulting wind speed and direction are calculated from the measured run-time sound differential.
The integrated electronic compass can be used to check the north-south adjustment of the sensor housing for wind direction measurement. It is also used to calculate the compass-corrected wind direction.
Aspirated temperature/humidity measurement
Open communication protocol
Analog outputs in combination with 8160.UDAC
Third-Party-Rain gauge sensors are compatible: 0.1mm 0.2mm 0.5mm 1mm heated and unheated
Ventilated housing allows more accurate measurements in high radiation conditions
Easily mounts to 2
|±0.2°C (-20°C...+50°C) otherwise ±0.5°C (>-30°C)
|±0.3m/s or ±3% (0...35m/s)
|40 VA at 24 VDC
|Protection type housing
|RS485 2-wire half-duplex
|Operating power consumption
|24 VDC +/- 10% < 4VA (without heating)
|Operating humidity range
|Operating temperature range
