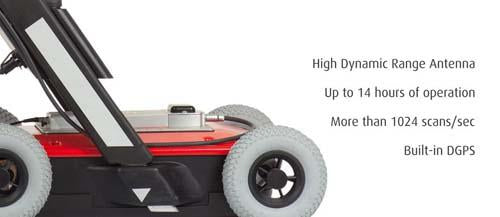

The MALÃ… Easy Locator revolutionized the utility locating industry and became the industry standard to which all later products is compared. Built on this massive success, MALÃ… introduces the Easy Locator HDR (High Dynamic Range). The MALÃ… Easy Locator HDR, is faster, even easier to use, more powerful and delivers cleaner data with more detail at up to 20% better penetration depth to comparable systems.


Ergonomic Compact and Field rugged design

Minimal setup time

Simple one-button operation

Mulitple battery management no swapping (up to 4 batteries)

Real-time zoom (no depth window setting necessary)

Multiple Language support (English Chinese Swedish)

Detects metallic and non-metallic utilities

On-site marking of utilities and objects

Back up cursor for quick and accurate utility marking

Rough Terrain Cart as option


Utility detection

Quantity must be 1 or more
Translation missing: en.products.product.equipment_available
Request a Quote


Technical Specifications

Power SupplyLi-Ion 12V/8.7Ah battery
System Power Consumption2.4A
Continuous Operating Time14h (4 bat. packs)
Operating Temp-20° to +50°C or 0° to 120 °F
Max Operating Speed>25 km/h (>15 mph)
Max Scan Rate>1024 scans/sec. @ 700 samples
Display10.4 Color TFT sunlight-readable Transmissive LCD
Dim. With Wheels67x47x19cm / 26x19x7' (excluding handle)
Total System Weight18 kg / 40 lb
Antenna:High Dynamic Range 450MHz Antenna
Dgps (sbas)Built-in supports also external devices
