MALA RAMAC X3M

Pine Item #54330

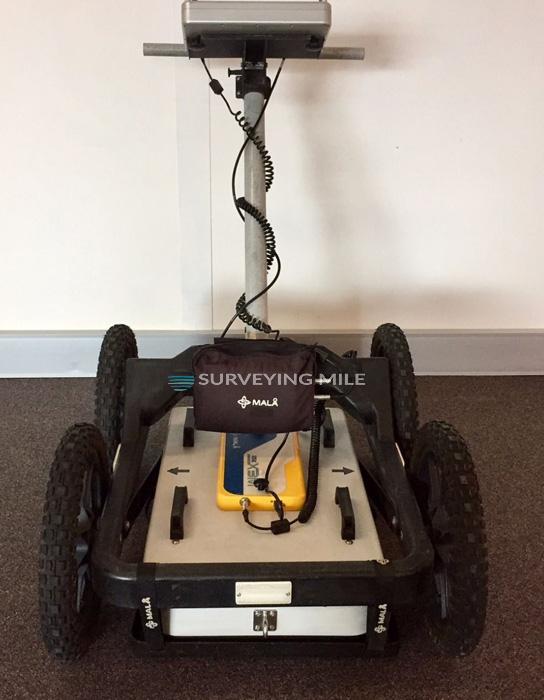

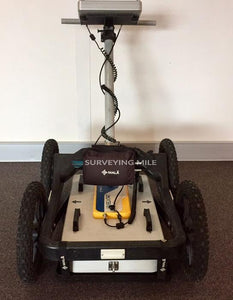

The RAMAC X3M is an intergrated radar control unit, fitted directly on the shielded antenna and powered externally. The built-in electronic design makes it low weight and compact size system, easier to assemble and operate. No cable is required since the unit communicates directly with the laptop.

Features:

Well designed, field-rugged enclosure

Built-in power supply and DGPS

Reduced footprint and weight

Simplified graphical user interface

In-the-field processing and interpretation

Visible cables reduced to a minimum

High resolution HDR controller display

Two component system with one cable

All antennas meet FCC, EC and IC regulatory limits on radio emissions

Quantity must be 1 or more
Equipment available for both rental and purchase
Request a Quote

Specifications

Technical Specifications

Pulse repetition frequency100 kHz (standard)
Data bits16
Communication Speed>700 kb/s
Data transfer rate40-400 kB/s at 4Mbit/s
Acquisition Modedistance/time/manual
Operating Time>10 hours with standard battery accessories
ChargerQuick Charger automatic charge cycle 110-240 VAC input
Charge Time3-5 h (80-100%)
SoftwareCompatible with Ground Vision
Power SupplyExternal 12V DC battery
Operating Temperature-20ºC to +50ºC
DimensionsUS: 12.2 x 7 x 1.2 in. Metric: 310 x 180 x 30 mm
