Pine Item #52171

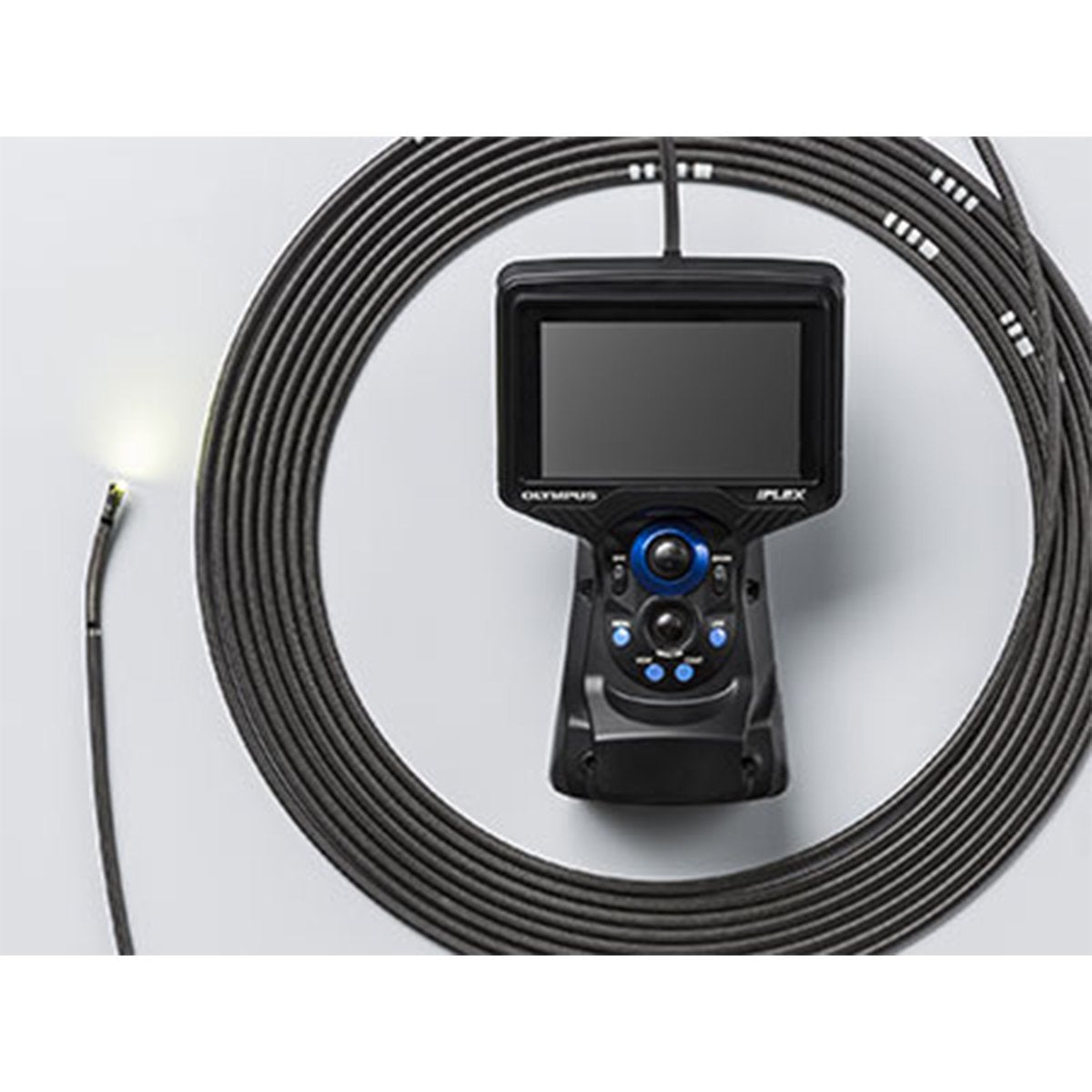

Small and Tough Enough to Use Almost Anywhere The IPLEX G Lite industrial videoscope packs powerful imaging capabilities into a small, rugged body. Lightweight and able to go almost anywhere, the IPLEX G Lite videoscope provides users working in challenging environments with a remote visual inspection tool that has the image quality and ease of use to get the job done.

Features:

LED illumination is 2x brighter than IPLEX UltraLite

Advanced image processing technologies such as PulsarPic, WiDER and Dynamic Noise Reduction provide a higher probability of detection

Powerful video recording functions such as constant video, 60 frames per second frame rate, bookmarks, image capture from video allow faster inspections and better documentation

In addition to the standard white light, interchangeable ultra-violet and infrared light sources lets you see the invisible and in the dark

Share live images with WiFi connectivity on iOS devices and HDMI video output

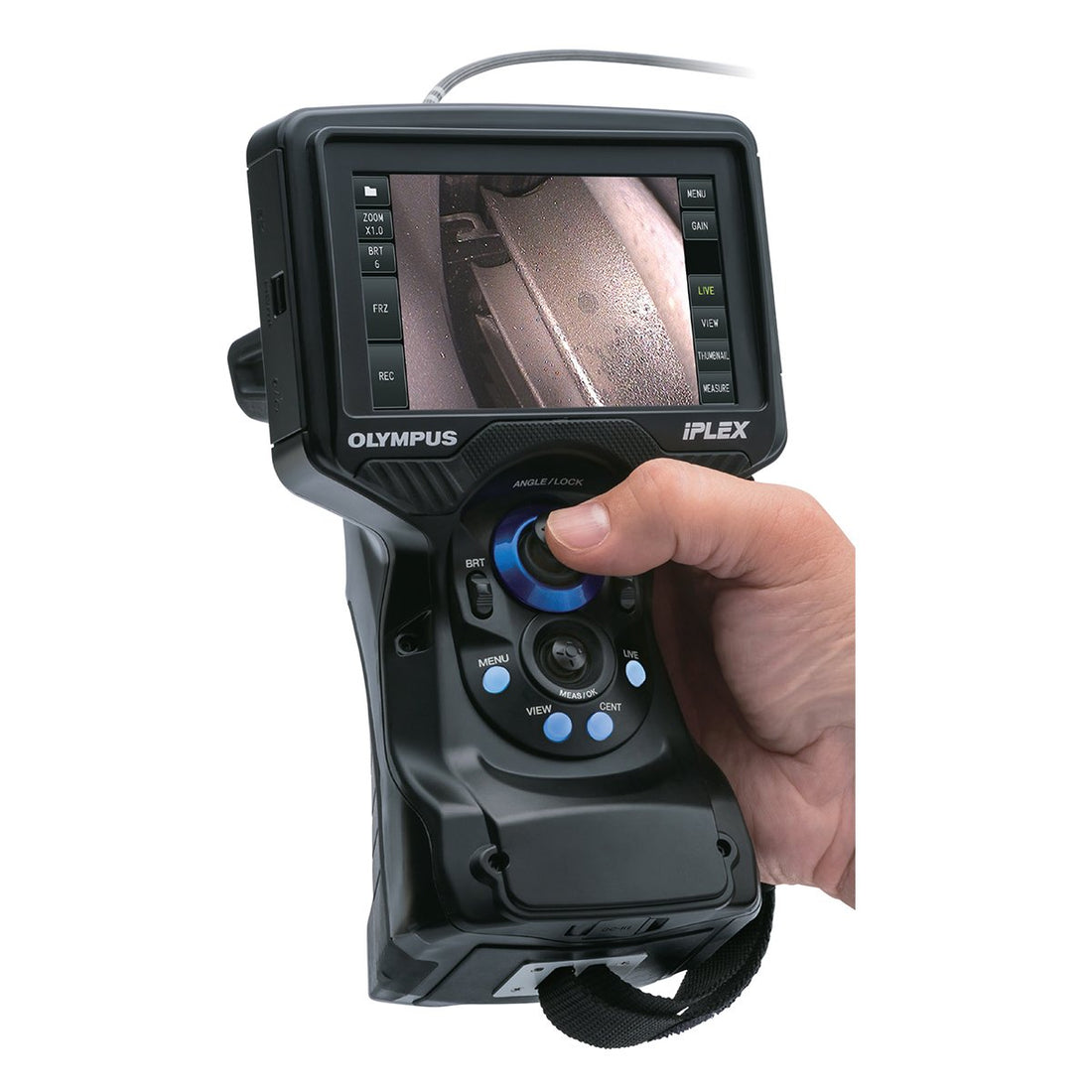

The IPLEX G Lite videoscope's ergonomic design is complemented by TrueFeel articulation, making the joystick incredibly responsive for one-handed operation.

The IPLEX G Lite can go anywhere with IP65 and U.S. Military Standard compliance

Touch screen and hotkeys mean intuitive operations

Oil clearing design on all standard direct-view tip adaptors ensures clear images and reduces inspection time

Applications:

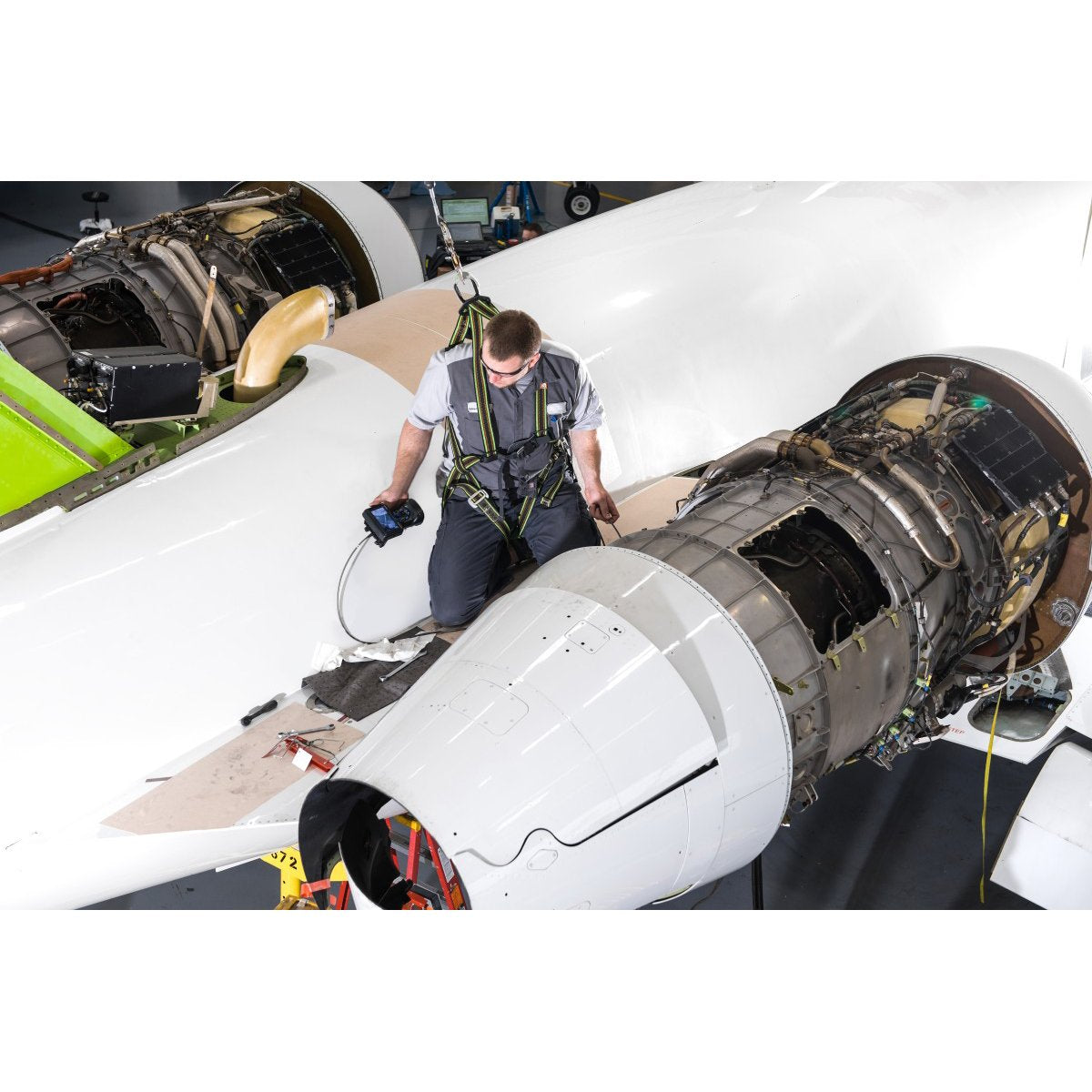

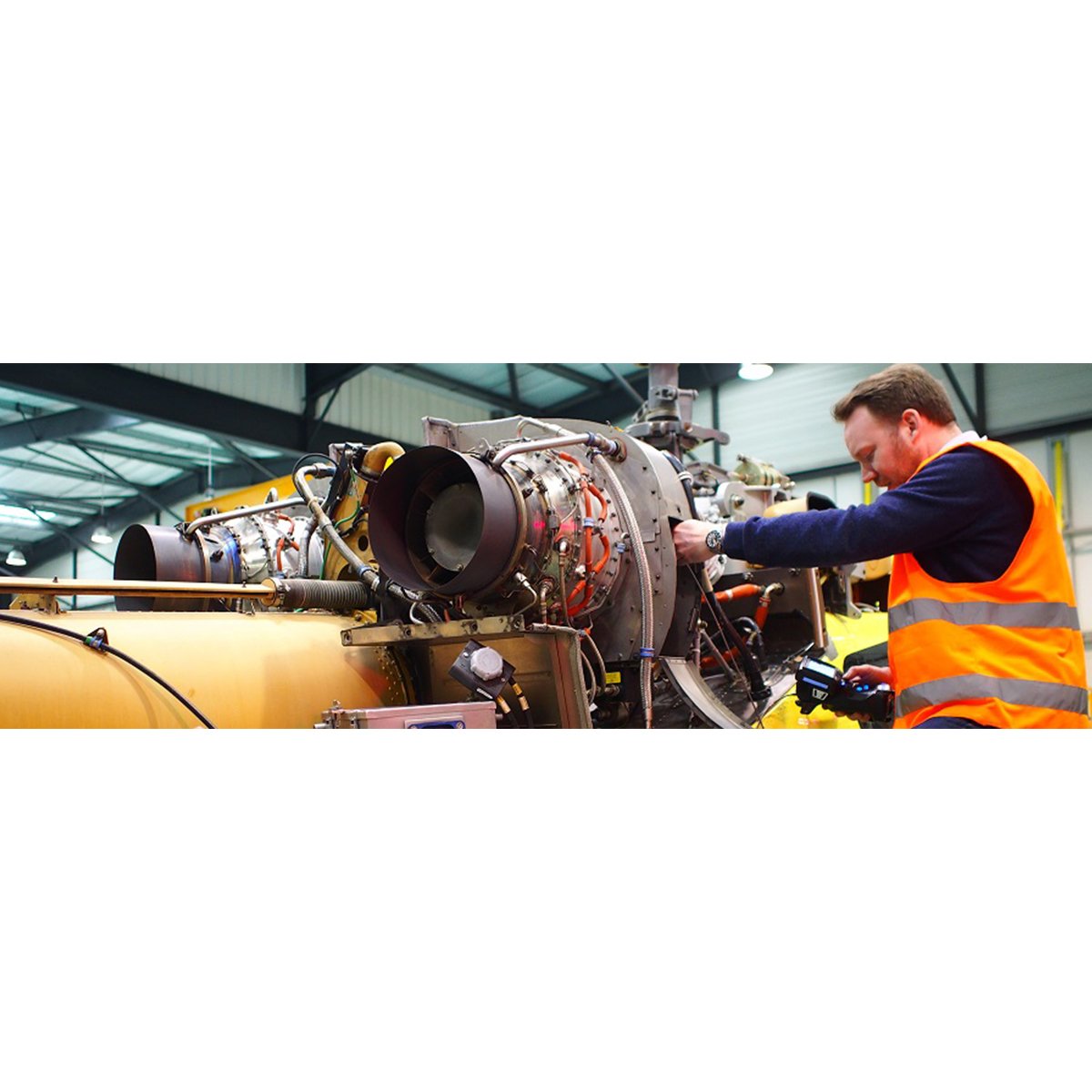

Aerospace

Oil & Gas

Power Generation

Wind tower

Process Industries

The videoscope and its accessories fit neatly in a lightweight travel case small enough to fit under an airplane seat.

Quantity must be 1 or more
Equipment available for both rental and purchase
Request a Quote

Specifications
Light source:built-in LED illumination system
Output:image and video
Tip articulation:forward-facing, up/down, left/right, up to 120°
Power:90-minute battery pack x 2, mains lead and battery charger
Image features:5X digital zoom, 16-step brightness control
Internal memory:Available (only the still images are recorded)
Operating temp insertion tube:In air: -25 °C to 100 °C (-13 °F to 212 °F); in water: 10 °C to 30 °C (50 °F to 86 °F)
Liquid resistance:Operable when exposed to machine oil, light oil, or 5% saline solution
