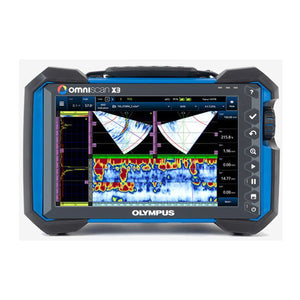

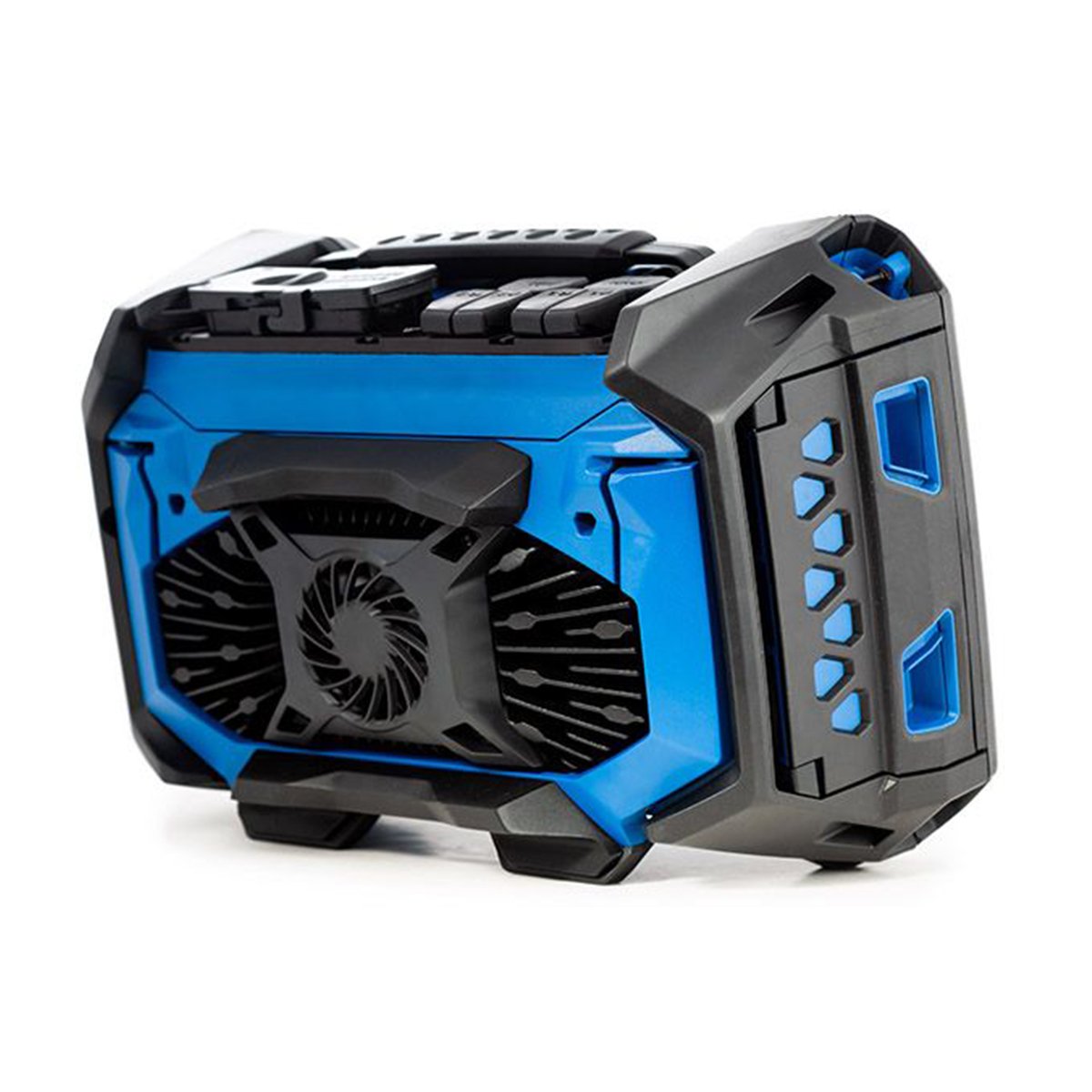

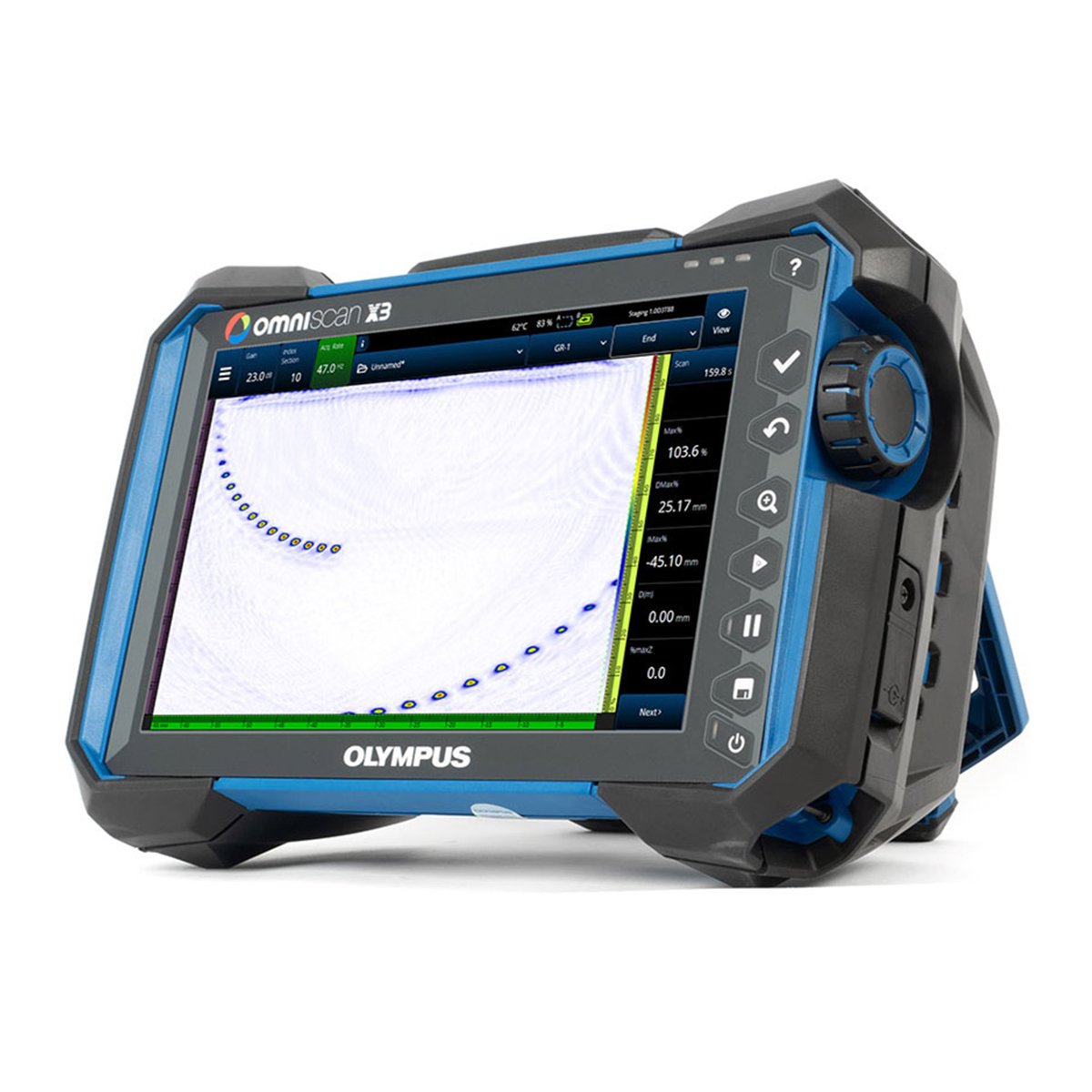

The OmniScan X3 flaw detector has the tools to help you complete your work efficiently. Its range of applications include welds, pipelines, pipes, corrosion-resistant alloys, corrosion mapping, HTHA inspection, detection of stepwise cracking, composite inspection, and flaw imaging.

  • Compatible with existing probes and scanners
  • 32:128PR model, featuring 64-element TFM
  • 16:64PR and 16:128PR also available
  • Up to 8 groups, 1,024 focal laws
  • Compatible with MX2/SX files for convenience
  • 64 GB internal storage, extendable with an external USB drive
Features:

Powerful software that’s intuitive for new and existing OmniScan users with a modern, simplified menu structure that minimizes button presses.

Live TFM Envelope Processing. The instrument’s unique envelope processing provides clear, high-resolution TFM images of flaws.

Facilitate Flaw Interpretation and Sizing. Using different TFM modes (wave sets) in the same inspection provides more chances to detect oddly oriented indications.

Confirm Your Coverage in Advance. The acoustic influence map (AIM) tool provides you with an instant visual model of the sensitivity based on your TFM mode, probe, settings, and simulated reflector.

Get to Work, Quickly. The onboard scan plan tool helps you visualize your inspection before you begin.

Improved Fast Calibration. The OmniScan X3 calibration menus track the signals at high speed. You can perform multiple group calibrations in minutes with minimal frustration

Harness the Power of Your PC. OmniPC™ software offers a suite of advanced tools, such as a side-by-side view that enables you to compare two files onscreen at the same time to maximize the power of your PC when analyzing data.

Applications:

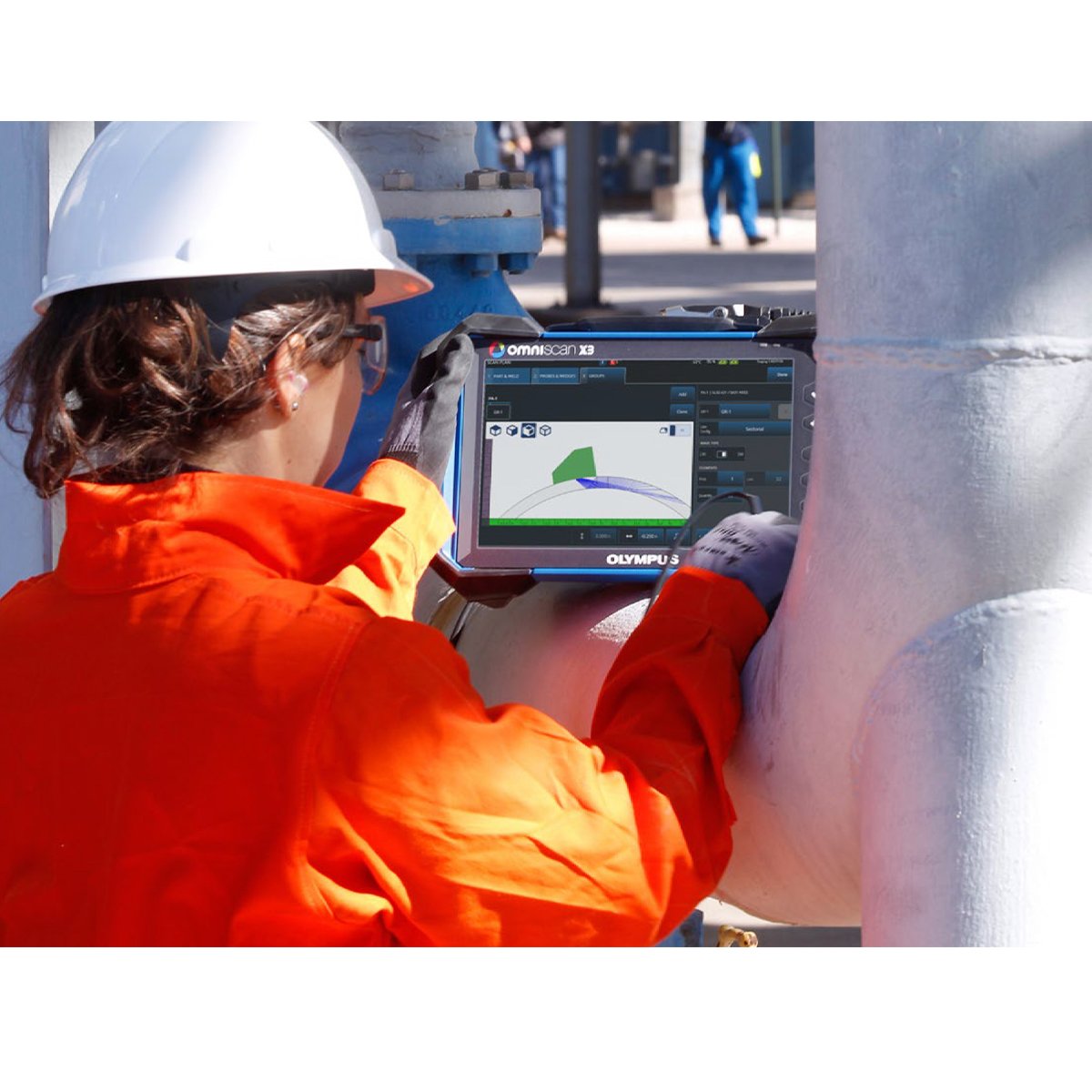

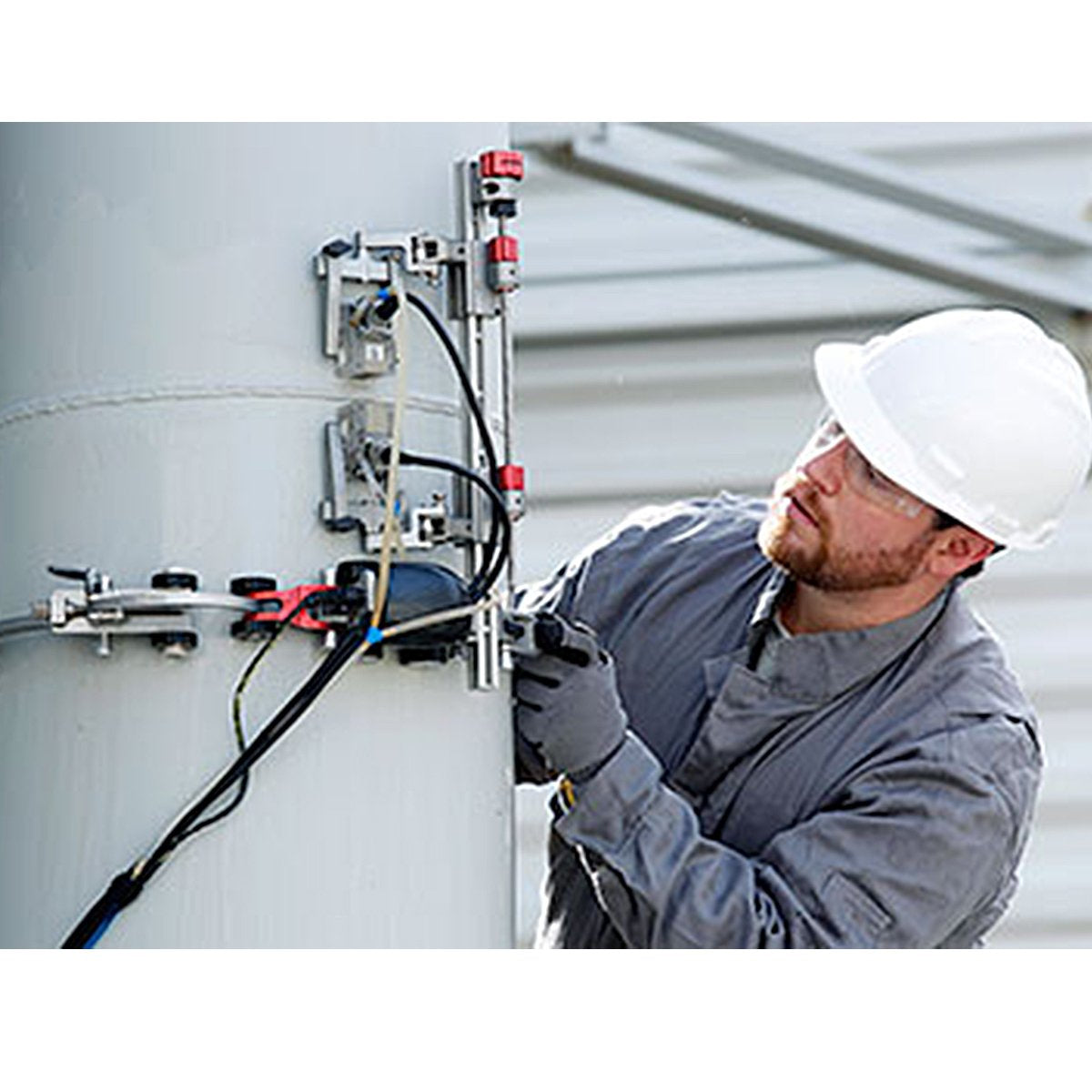

In-service and construction welding

Pressure vessels

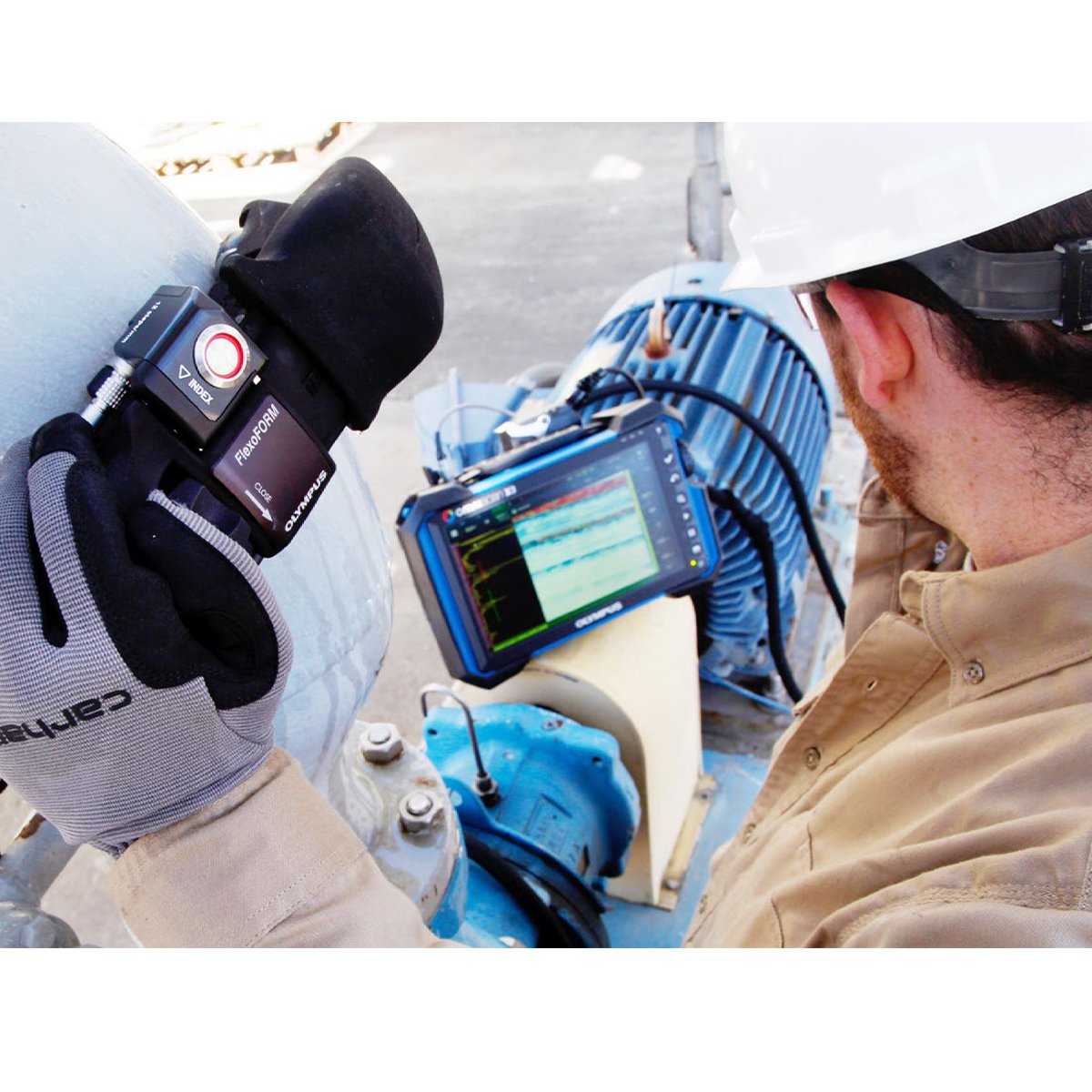

Process pipes

Wind tower

Structural construction

Corrosion-resistant alloys and cladded materials (austenitic, nickel, and other coarse-grained materials)

Quantity must be 1 or more
Translation missing: en.products.product.equipment_available
Request a Quote

Specifications
Storage Devices:Storage Devices: SDHC™ and SDXC™ cards or most standard USB storage devices
Hard Drive Capacity:Hard Drive Capacity: Internal 64 GB SSD, extendable using an external USB drive
GPS:GPS: Yes (unless specified otherwise for some regions)
Wireless Connection:Wireless Connection: Yes (USB dongle sold separately as an accessory)
Lithium-ion Battery:Lithium-ion battery: 5 hours using 2 batteries (hot-swap capable)
Number of Receiving Elements:Number of Receiving Elements: OMNIX3-PATFM32128PR = 128 receiving elements
Ingress Protection Rating:Ingress Protection Rating: IP65 certified (completely protected against dust and water jets from all directions (6.3 mm nozzle)
Operating Temperature:Operating Temperature: 0 °C to 45 °C (32 °F to 113 °F)
Storage Temperature:Storage Temperature: −20 °C to 60 °C (−4 °F to 140 °F) (with battery inside) −20 °C to 70 °C (−4 °F to 158 °F) (with no battery inside)
Weight:5.7 kg (12.6 lb) (with 1 battery)
Dimensions:(W × H × D): 335 mm x 221 mm x 151 mm (13.2 in. x 8.7 in. x 5.9 in.)
