Olympus Epoch 600 Ultrasonic Flaw Detector
Pine Item #54135

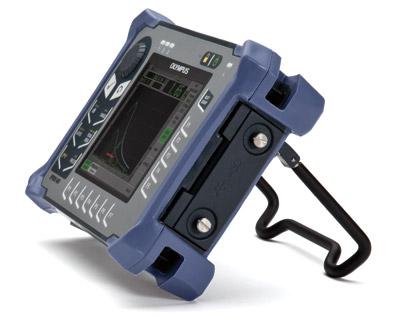

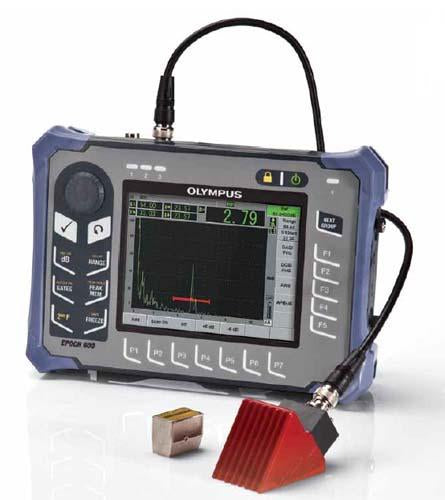

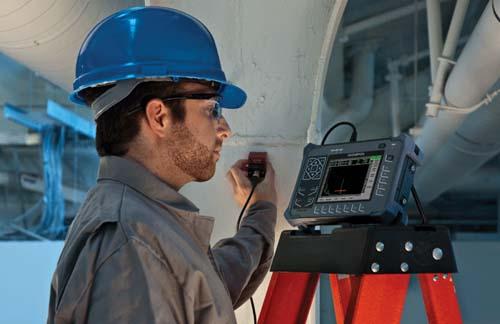

The EPOCH 600 Digital Ultrasonic Flaw Detector combines Olympus' industry leading conventional flaw detection capabilities with the efficiency of a highly portable, intuitive instrument. The EPOCH 600 flaw detector's blend of efficient menus and direct access keys allows you to take advantage of the highest quality flaw detection platform with exceptional ease of use.
The large, full VGA transflective display combined with our patent-pending digital high dynamic range receiver provides a stable, striking A-scan representation in any lighting condition. Available in two hardware configurations, the EPOCH 600 offers you the choice to adjust parameters with a knob or with a navigation area on the keypad. The EPOCH 600 is designed to meet the requirements of EN12668-1 and allows a full range of standard and optional flaw detection features. The rugged, ergonomic design allows use in nearly any inspection environment, while the flexible PerfectSquare™ pulser and digital filtering capabilities can tackle nearly any application.
Features:
Designed to meet the requirements of EN12668-1
PerfectSquare tunable square wave pulser
Digital high dynamic range receiver
Eight digital filters for enhanced signal-to-noise ratio
2 kHz PRF for rapid scanning
Knob or navigation pad adjustment configurations
Large full VGA sunlight readable display
Long battery life supporting lithium-ion or alkaline batteries
Standard dynamic DAC/TVG and onboard DGS/AVG
2 GB MicroSD memory card for data transfers and storage
USB On-The-Go (OTG) for PC communication
Optional analog output
Alarm and VGA outputs
Equipment available for both rental and purchase
Request a Quote
Specifications
Manuals & Data Sheets
Videos
| Languages | English Spanish French German Japanese Chinese |
| Transducer connections | BNC or Number 1 LEMO |
| Data storage | 50000 IDs onboard removable 2 GB MicroSD card (standard) |
| Battery type | Single lithium-ion rechargeable standard |
| Battery life | 12 h to 13 h (lithium-ion) 3 h (alkaline) |
| Power requirements | AC Mains: 100 VAC to 120 VAC 200 VAC to 240 VAC 50 HZ to60 Hz |
| Display type | Full VGA (640 x 480 pixels) transflective color LCD 60 Hz update rate |
| Display dimensions (W x H Diag.) | 117 mm x 89 mm 146 mm (4.62 in. x 3.49 in. 5.76 in.) |
| Pulser | Tunable Square Wave |
| PRF | 10 Hz to 2000 Hz in 10 Hz increments |
| Energy settings | 100 V 200 V 300 V or 400 V |
| Pulse width | Adjustable from 25 ns to 5000 ns (0.1 MHz) with PerfectSquare technology |
| Damping | 50 100 200 400 O |
| Gain | 0 to 110 dB |
| Maximum input signal | 20 V p-p |
| Receiver input impedance | 400 O ± 5% |
| Receiver bandwidth | 0.2 MHz to 26.5 MHz at -3 dB |
| Digital filter settings | Eight digital filter sets standard (0.2-10 MHz 2.0-21.5 MHz 8.0-26.5 MHz 0.5-4 MHz 0.2-1.2 MHz 1.5-8.5 MHz 5-15 MHz DC-10 MHz) |
| Rectification | Full-wave Positive Half-wave Negative Half-wave RF |
| Horizontal linearity | ± 0.2% FSW |
| Vertical linearity | 0.25% FSH amplifier accuracy ± 1dB |
| Reject | 0 to 80% FSH with Visual Warning |
| Amplitude measurement | 0 to 110% full screen height with 0.25% resolution |
| Measurement rate | Equivalent to PRF in all modes |
| Measurement display locations | 5 locations available (manual or auto selection) |
| Gate 1 | Thickness Soundpath Projection Depth Amplitude Time-Of-Flight Min./Max. Depth Min./Max. Amplitude |
| Gate 2 | Same as Gate 1 |
| Echo-to-Echo | Standard Gate 2-Gate 1 |
| Other measurements | Overshoot (dB) value for DGS/AVG ERS (equivalent reflector size) for DGS/AVG AWS D1.1/D1.5 rating (D) Reject Value |
| DAC/TVG | Standard |
| DAC points | Up to 50 points 110 dB dynamic range |
| Special DAC modes | Custom DAC (up to 6 curves) |
| Curved surface correction | Standard OD or Bar correction for Angle Beam measurements |
| Dimensions | US: 9.3 x 6.6 x 2.76 in. Metric: 236 x 167 x 70 mm |
