Olympus EPOCH XT
Olympus IMS

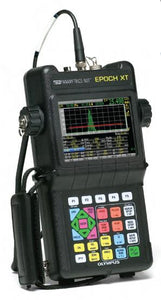

Olympus EPOCH XT

Pine Item #54125

The Olympus EPOCH XT Ultrasonic Flaw Detector is designed for great inspection flexibility and for use in extreme environments. It combines a multitude of enhanced flaw detection and measurement features, a bright multicolor LCD, versatile battery options, powerful data management, and numerous software features in a compact unit with a sealed case designed to meet IP67 requirements. The EPOCH XT incorporates many standard measurement features including a tunable square wave pulser, selectable narrow-band and broad-band digital filters, gain range from 0 to 110 dB, peak memory and peak hold, adjustable PRF, 0.001 in. (0.01 mm) measurement resolution, and two gates with programmable alarms. In addition, the unit offers many standard and optional application-specific software features: Dynamic DAC/TVG (Distance Amplitude Correction/ Time Varied Gain), On-board DGS/AVG, AWS D1.1 & D1.5, Curved Surface Correction, and GageView Pro.

Features:

EN 12668-1 compliant

Client USB Port for PC communication

Designed to meet IP67 requirements. Sealed to withstand harsh environments.

Dynamic DAC/TVG Standard

Host USB Port for direct printing and storage to USB drives

Multi-color LCD display

Multiple Battery Options can be used with Lithium Ion NiMH or C-Cells

Quantity must be 1 or more
Equipment available for both rental and purchase
Request a Quote

Specifications

Technical Specifications

KeypadEnglish International Japanese or Chinese
LanguagesEnglish Spanish French German Italian Japanese Chinese Russian Korean Norwegian Swedish. Custom languages available.
Transducer Connections:BNC or Number 1 Lemo (BNC rated to IP67)
BatteryChoice of Lithium Ion Nickel Metal Hydride and Alkaline C-Cells
Battery Operating TimeLithium Ion: 9-10 Hours NiMH: 5 Hours C-Cells: 1-2 Hours
Power RequirementsAC Mains: 100-120 VAC 200-240 VAC 50-60 Hz
DimensionsUS: 10.9 x 5.9 x 2 in. Metric: 277 x 150 x 51 mm
