Olympus Multiscan MS 5800 ER
Olympus IMS

Olympus Multiscan MS 5800 ER

Pine Item #54110

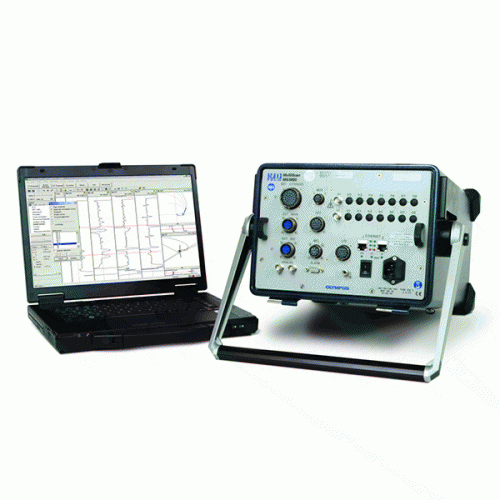

The Olympus Multiscan MS 5800 ER is a versatile and complete testing tool. It can be configured as a single- or multiple-technique system using eddy current, remote field and magnetic flux leakage. It can also perform manual or automated inspection. This portable instrument can be used anywhere in the field. The MS 5800 ER is PC-based and equipped with user-friendly software packages as well as fast reporting capabilities.

Features:

Four simultaneous frequencies per input.

Electronic probe balancing.

4 ECT inputs and up to 64 multiplexed channels.

High-Speed

Multichannel

Multifrequency

Quantity must be 1 or more
Equipment available for both rental and purchase
Request a Quote

Specifications

Technical Specifications

Computer Interface100Base-T Fast Ethernet
Environment-20°C to 45°C operating ambient -20°C to 70°C storage. 95% relative humidity noncondensing.
Power120 VAC or 220 VAC ±10% automatic selection 48 Hz to 63 Hz
SoftwareOperating System
NULLEncoders: 2 quadrature encoders or digital inputs
Software OptionsMultiView/T: Tube analysis and report package
CARTOInspection planning tubesheet mapping and report software
Eddy CurrentProbe Inputs: 4 independent differential inputs and up to 64 multiplexed inputs (16 time slots)
Remote Field and Magnetic Flux LeakageProbe inputs: 4 independent inputs for RFT / 4 independent inputs for MFL
DimensionsUS: 17.7 x 11.8 x 8.6 in. Metric: 45 x 30 x 22 cm
