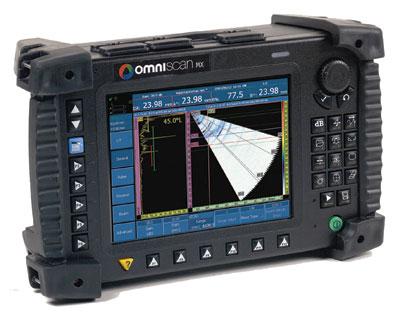

Olympus Omniscan MX Ultrasonic Flaw Detector

Pine Item #54866

Built to cope with the harshest of work environments, the new OmniScan MX is a compact, portable and rugged modular NDT inspection system. Ultrasound, Phased Array and Time-Of-Flight-Diffraction (TOFD) inspection techniques are all supported, with the modules* able to be changed and installed onto the platform in a matter of seconds and without any tools. The user-interface features a large clear display and functions controls that are easily to hand. Along with the above test modules, a variety of probes and callipers are available to rent.


Compact rugged and battery-operated design

Shock impact and water resistant.

Interchangeable modular design that automatically detects and presets system according to chosen module.

Clear 8.4inch screen with 60Hz refresh rate.

Probe iD feature to automatically identify and configure the system for the connected probe

6-hour run time with two Li-Ion batteries

Quantity must be 1 or more
Translation missing: en.products.product.equipment_available
Request a Quote


Technical Specifications

Display Type:TFT Liquid Crystal Display
Display Size & Resolution:8.4 inches (diagonal)
Power Supply + Battery Life:2 x Smart Li-Ion Batteries / 15V - 18V DC-in (min 50W)
Operating Temperature:0°C - 45°C
Relative Humidity:0 to 95% non-condensing
OmniScan MX Interface:NULL
Data Storage:Compact Flash Card USB storage device or Ethernet Internal 32Mb DiskOnChip©
I/O Ports:3 x USB ports 10-100Mb/s Ethernet port Speaker & Video out Microphone & Video in
I/O Lines:2 x Digital inputs TTL 4 x Digital outputs TTL 2 x Analogue outputs (12bits) ±5V RS-232 or RS-385 remote communication


Overall Dimensions (including module & batteries)12.6 x 8.2 x 5 inches321 x 209 x 125 mm
Test Module Dimensions9.6 x 7.1 x 2.1 inches244 x 182 x 57 mm


Overall Dimensions (including module & batteries)10.1 lb4.6 kg
Test Module Dimensions2.6 lbs1.2 kg
