P341 Flexiprobe 200'

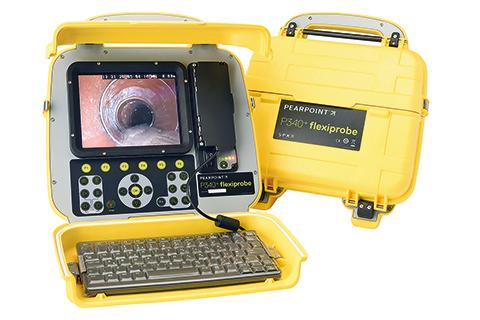

At the heart of the P340 flexiprobe system is the weatherproof P340+ flexiprobe controller, which displays color footage in digital quality on an ultra-bright 8" TFT screen. USB flash drive and Compact Flash storage options along with PC connectivity provide flexible data storage and comprehensive reporting capabilities.
The P340+ controller features an internal lithium-ion battery, providing convenient power for up to a full day’s typical usage, removing the inconvenience and set-up time of an external power lead.

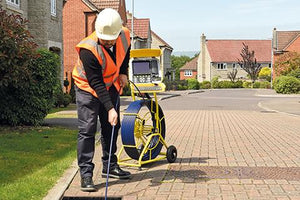

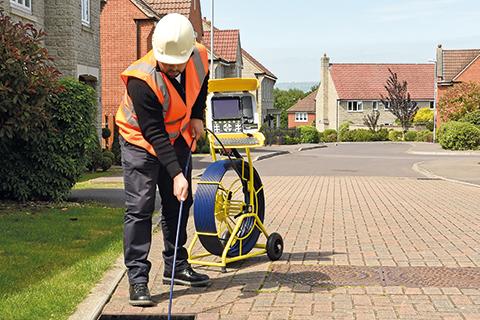

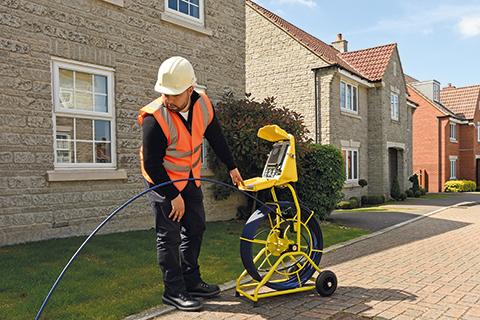

P340 flexiprobe systems have been designed to deliver controllable and high quality video inspection for any situation, from residential work and commercial use through to specialist plant and municipal applications.

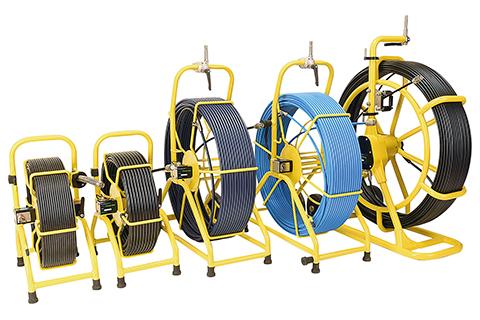

A choice of 3 sealed cameras can be mounted on a range of rods: from the ultra-flexible 100' (30m) Plumbers reel, designed for transiting tight bends, to the 500' (150m) P343 reel designed to push for long distances. A range of compatible sondes, skids, brushes and accessories completes the package.
Features:
In-built high capacity Lithium-Ion battery (P340+ controller)
One-touch recording to USB memory sticks and Compact Flash cards
Outstanding picture quality from toughened cameras
Super-flexible Plumbers system for residential and commercial plumbing
High quality digital video with digital pan and zoom
Inspection reports prepared on-site with integrated report writer
Weatherproof, robust and truly portable
Applications:
P341 Plumbers Reel
The second generation of extra-flexible P341 Plumbers reel offers high performance around tight bends and traps in short range surveys’ and is ideal for use in most waste water systems (from 1¼” / 32mm) found in commercial and residential properties.
A built-in flexi-sonde allows the user to pinpoint its location and depth without compromising maneuverability around tight corners – this can be located using a suitable pipe or cable locator, such as the RD7100DL.
The P342 rod offers a balanced compromise between bendability and stiffness, allowing good maneuverability and push performance.
A built-in flexi-sonde allows the user to pinpoint its location and depth without compromising bend performance – this can be located using a suitable pipe or cable locator, such as the RD7100DL.P341 Plumbers reels are offered in 2 different length: 100’ / 30m or 200’ / 60m.
P341 Reel
The P341 115’ / 35m is designed for small diameter pipes (from1 ¼” / 32mm) and for distance. The P341 pushrod has been engineered to offer the optimum stiffness to offer long range push whilst maintaining the offer the ability to go through bends.
Often used to go from smaller pipes into larger ones, the P341 reel can be fitted with either the 1” / 25mm or 2” /50mm cameras, and a 1” 512 or 640 flexisonde for maximum configurability.
P342 Reel
The P342 system is designed to deliver optimum performance in medium-diameter pipes starting from 4”/100mm. However, its compact and robust design allows the user to extend its use to smaller pipes (will fit in a 2”/50mm pipe).
The P342 rod offers a balanced compromise between bendability and stiffness, allowing good maneuverability and push performance.
A built-in flexi-sonde allows the user to pinpoint its location and depth without compromising bend performance – this can be located using a suitable pipe or cable locator, such as the RD7100DL+.The P342 reel is offered in 2 lengths: 200’ / 60m or 400’/120m.
P343 Reel
The P343 system is designed to deliver exceptional push performance when used to inspect main drains and pipes, characterized by relatively straight route.
In the right conditions, the P343 reel can push the camera up to its full length of 492’/150m.
Technical Specifications
P540c Controller | ||
Power supply: | Mains Input | 100-240VAC, 50-60Hz, 1.7A |
DC Output | 16V, 3.75A, 60W | |
Input power requirements | 10-30V, 60W | |
Battery capacity: | Internal Li-Ion Battery (4S2P) | 14.68V, 6.4Ah (93.95Wh) |
Battery run-time: | Up to 1 day's typical usage, 7.5hrs view only/5hrs continuous recording* | |
Battery level indication: | 5 LEDs in handle (user activated) and on-screen symbol | |
Charging status: | 2 LEDs | |
WiFi Status: | 1 LED and on-screen symbol | |
Display: | 10.1", 1280x800 transmissive HD color TFT | |
Storage: | Integral 128Gb and support of USB flash storage | |
Recording formats: | Video: H.264. Audio: MP3. File format: MP4 | |
Connectivity: | USB 2.0 (x3), HDMI video out, Analog video in (PAL/NTSC), Headphones out Microphone in, Rod/Camera connectivity and 802.11 b/g/n WiFi | |
Environmental Protection | P540c controller Power supply / charger | IP55 IP54 rated for indoor use |
Temperature: | Storage Operating Charging | -4°F to 176°F/-20°C to +80°C 14°F to 122°F/-10°C to +50°C 32°F to 104°F/0°C to +40°C |
Fuse rating: | 5A | |
Dimensions: | 17.5 x 15.2 x 6.1"/445 x 385 x 155mm | |
Weight: | 16lb/7.25kg | |
Construction: | High impact ABS and powder-coated, zinc-plated mild steel | |
*May vary depending on power management settings chosen, ambient conditions, accessories attached, recording time and other factors |
Rods and Reels | P541 Plumbers | P541 Mini | P542 Reels | P543 Reel |
Dimensions: | 22.4" x 16.9" x 10.6" 570 x 430 x 269mm | 22.4" x 16.9" x 10.6" 570 x 430 x 269mm | 33.5" x 29.5" x 16.5" 850 x 750 x 420mm | 32.0" x 46.0" x 18.7" 813 x 1168 x 475mm |
Weight: | 21lbs / 9.4 kg 25lbs /11.2kg | 24lbs /11kg | 40lbs /18.2 kg 55lbs /25kg | 81.6lbs /37kg |
Construction: | Powder-coated tubular steel frame | |||
Rod: | 100'/30m 200'/60m | 115'/35m | 200'/60m 400'/120m | 500'/150m |
Cameras | 1"/25mm camera | 1 ¼"/32mm self- levelling camera | 2"/50mm self-levelling camera |
Dimensions: | 1" x 1.52"/25.4 x 38.7mm | 1.23" x 2.6"/31.24 x 66mm | 1.89" x 2.87"/48 x 72.8mm |
Weight: | 0.1lbs/0.06kg | 0.4lbs /0.18kg | 0.8lbs /0.36kg |
Construction: | Stainless steel/ polycarbonate | Stainless steel/sapphire glass /polycarbonate | |
Power | 1.8W | 1.3W | 3.8W |
Environmental: | IP68 to 330' (100m)/11bar | IP68 to 230' (70m)/7bar | IP68 to 330' (100m)/11bar |
Temperature: | Storage: -4°F to 176°F/-20°C to +80°C Operating: 14°F to 122°F/-10°C to +50°C | ||
Focus: | Manually adjustable | Fixed | Manually adjustable |
Focal range: | 10mm to ∞ | Fixed | 10mm to ∞ |
Lighting | Ultra bright white LEDs | ||
LED luminance: | ≥ 75lm | ≥ 150lm | ≥ 208lm |
Active pixels (HxV) | 656 x 492 NTSC 768 x 576 PAL | 640 x 480 NTSC 640 x 576 PAL | 768 x 492 NTSC 765 x 582 PAL |
Horizontal resolution: | ≥ 460TVL | ≥ 420TVL | ≥ 460TVL |
