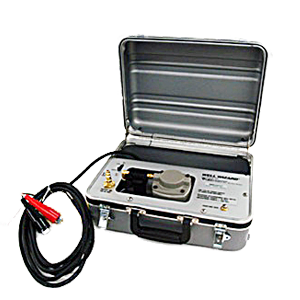

QED Compressor 12V, Model 3020
Pine Item #51878
Oil-less electric compressor
The 3020 Compressor is a useful option for low-flow sampling of wells at depths to 100 feet. It runs on a 12 volt DC electrical supply, and can be connected to your vehicle's battery with the supplied cables, or driven by a separate power source.
At just 15x11x6-1/2'' and 15 pounds, it offers an extremely convenient, portable pneumatic power choice for many sampling systems.
Electric Compressor Specifications:
- Model No. 3020
- Dimensions 15 x 11 x 6.5'' (38x28x17 cm)
- Weight 15 lbs (7 kg)
- Power Supply 12 VDC (battery cable)
- Max. Pressure 100 PSI (6,895 kPa)
- Rec. Max. Lift 100 Feet (30 m) optimal, can reach 200 feet
- Output 0.21 SCFM @ 100 psi (0.357 m3/h @ 6,895 kPa)
