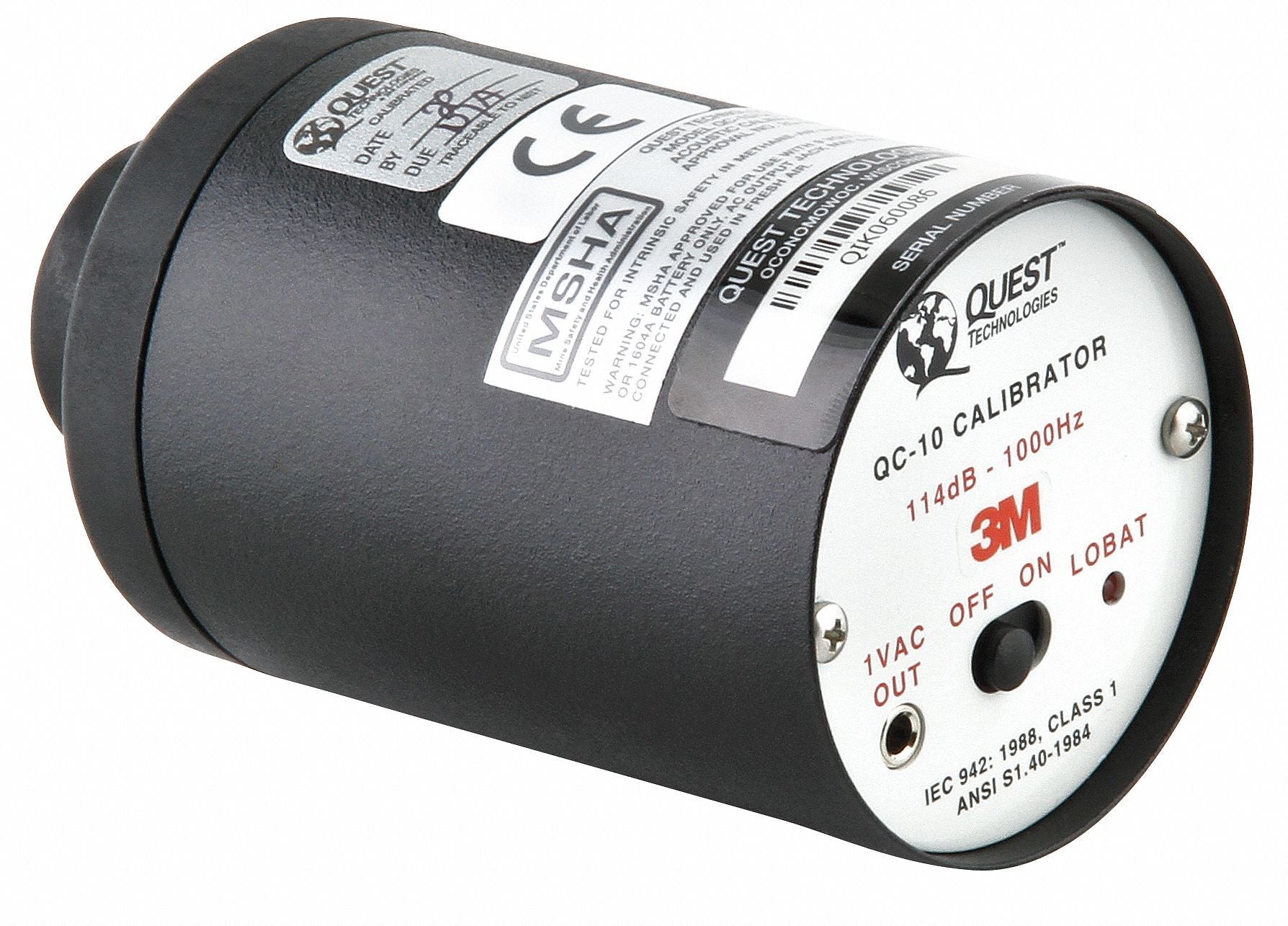

QUEST QC10 CALIBRATOR
Quest models QC10- and QC20 are accurate electroacoustic calibrators that generate a stable acoustic signal at a controlled frequency and aamplitude level. Their principal use is for a calibration accuracy check of sound level meters and oise dosimeters. Other acoustic analyzers, such as FFT or Real Time Spectrum annalyzers, hearing aid test instruments, or other audio systems utilizing a microphone for input signals, may be calibrated with the QC-10 and QC-20.
Features:
For Laboratory and field calibration
Self-contained battery operated
Accurate and stable rugged construction
1? microphone coupler various size snap=in adapters available.
Standards | ANSI S1.40-1984 and IEC 942: 1988 |
Qoutput Frequency: | QC-10: 1000 Hz |
Output Amplitude: | QC-10 114 dB |
Output Accuracy | +/- 0.3 dB @ 20 degrees C 760mm Hg |
Distortion | Less than 1% within temperature and humidity operating ranges. |
Electrical Output | 1 volt RMS sine wave +/-5% (0.4 dB). Output impedance= 1000 ohms. Phone jak (1/8\) compatible with switchcraft 780 plug or equivalent. |
Temperature | Operating range: -10 to +50 degrees C. 1KHz: within +/- 0.3 dB from +5 to 50 degrees C. Below +5 degrees C coefficient of SPL is 0.0 to 0.01 |
Humidity | Relative humidity 5 to 95% with less than 0.1 dB change in output (non-condensing). |
Effects due to external fields | 60Hz: No measureable effect up to 5 Oersted (1 Oe = 80 A/m). 400 Hz: No measurable effect up to 2 Oersted (Stated field strengths are magnet |
Power | Battery operated 9 volt transistor battery. NEDA 1604 type. Projected battery life greater than 25 operating hous with intermittent use. Ba |
Dimension
US | Metric | |
L x D | 4.1 x 2.4\"""\""" | 104mm x 60mm |
Weight
US | Metric | |
L x D | 0.77 lbs | 0.35 kg |
