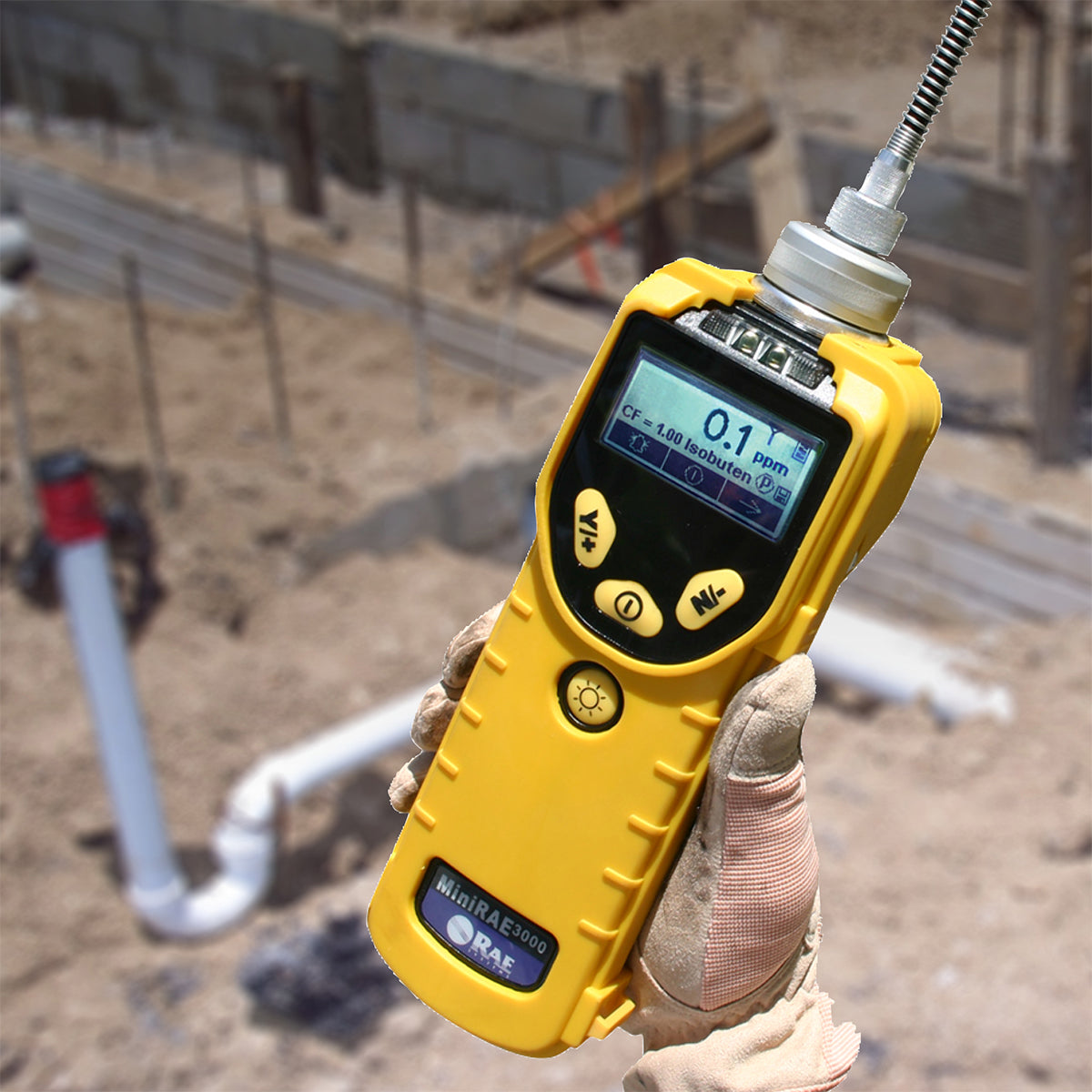

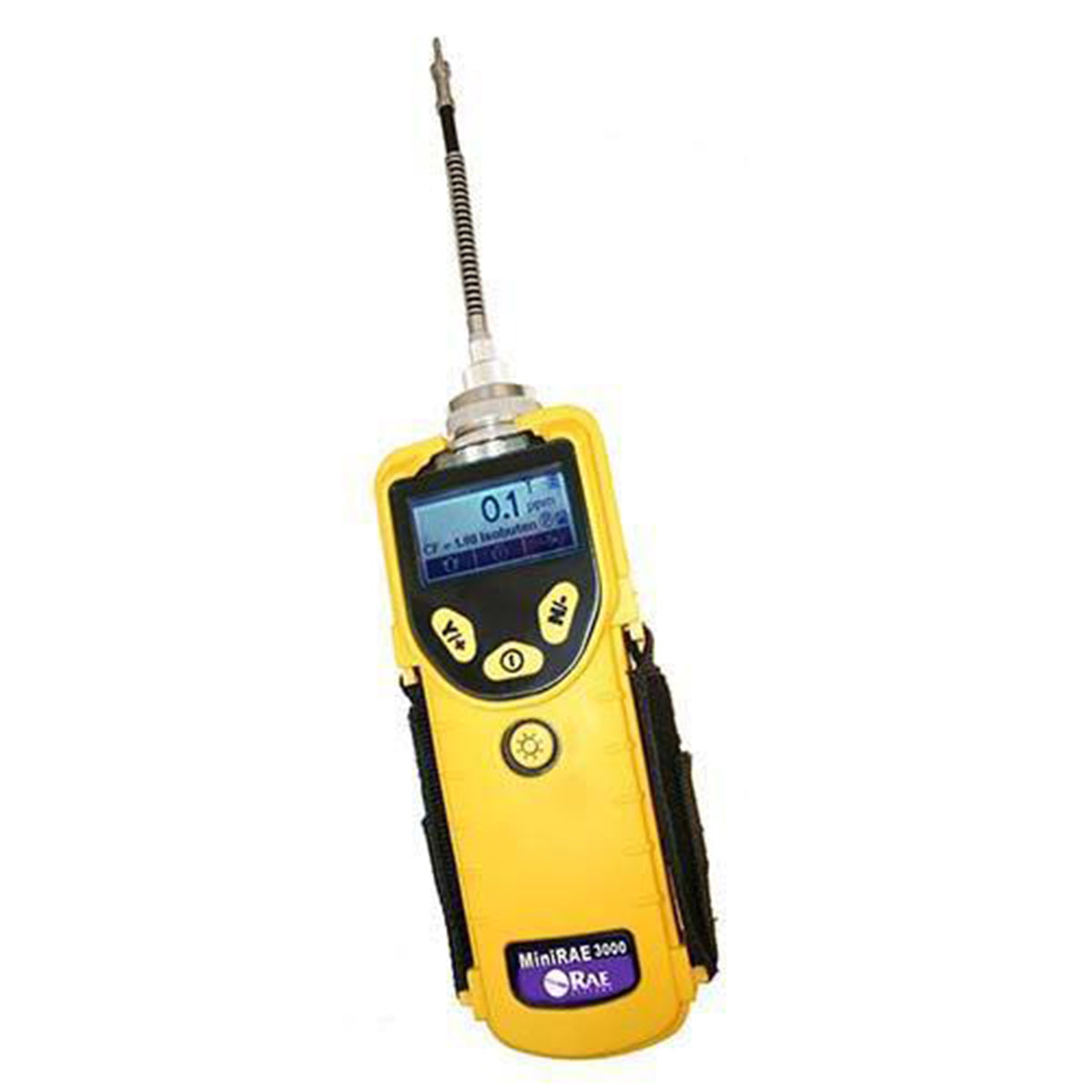

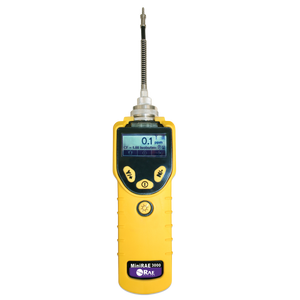

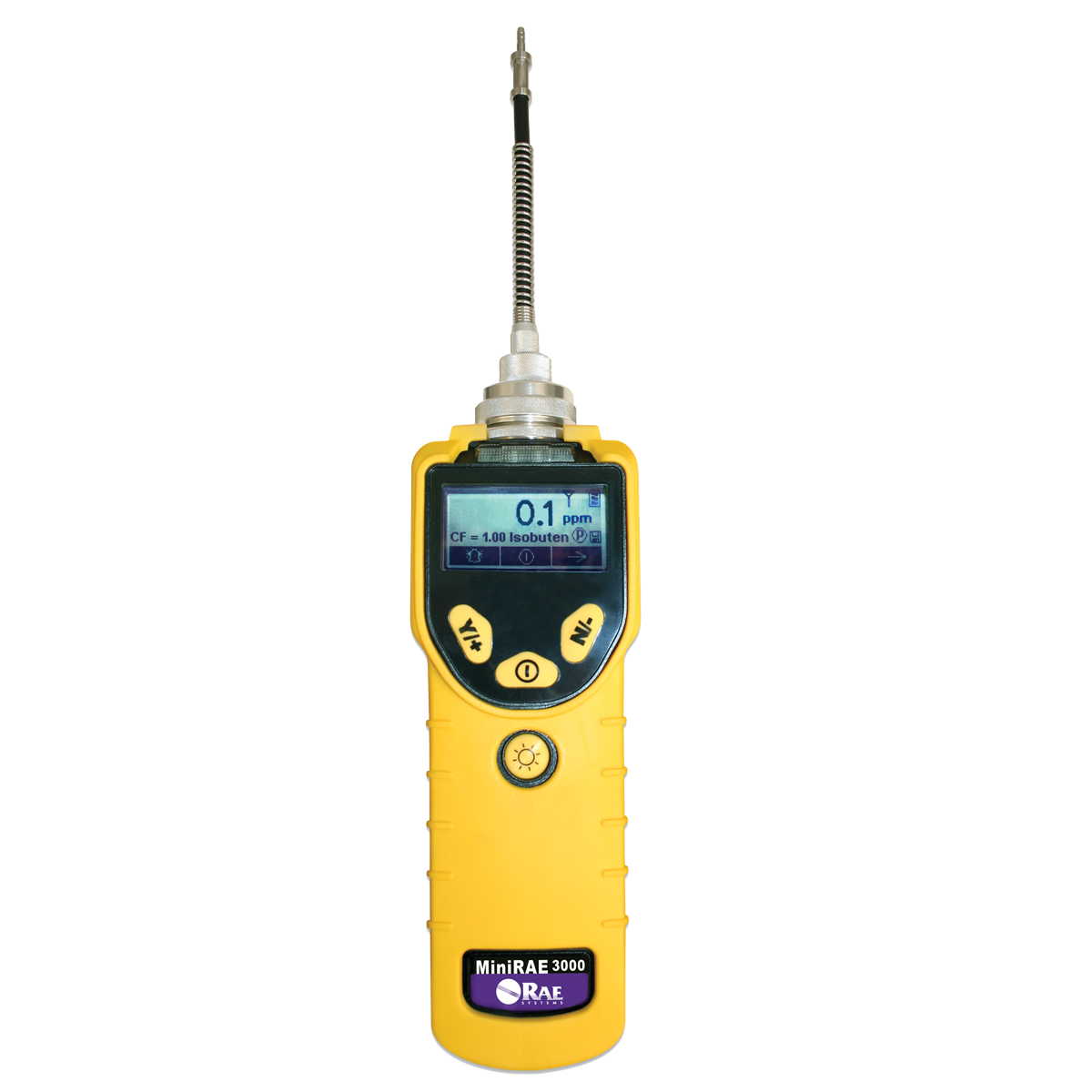

RAE Systems MiniRAE 3000 PID
The MiniRAE 3000 PID is the most advanced handheld volatile organic compound (VOC) detector on the market. Its Photoionization Detector (PID) extended range of 0 to 15,000 ppm makes it an ideal instrument for applications from industrial hygiene, to leak and hazmat detection.
The RF modem allows real-time data transmissions with a base controller located up to 500 feet (or two-miles with optional RAELink2 portable modem) away from the MiniRAE 3000 detector.
A personal computer can be used as the base station for a Mini-RAE 3000 system. The standard ProRAE Remote software is capable of monitoring the input of up to 64 remotely-located monitors like MiniRAE 3000, or AreaRAE, etc.
A list of the gases detectable by this instrument are available to download in the TN-106 PDF document under the Download tab.
Rugged construction for use in harsh environments
Easy-to-use PID with 10.6 eV lamp as standard
Easy access to lamp and sensor in seconds without tools.
Inbuilt full RAE Systems 350 compounds correction factors list measure more chemicals than any other PID
Real-time wireless data transmission with built-in RF modem or Bluetooth
Other lamps (9.8 and 11.7 eV) available on request
Measures a wide range of VOCs
Simple to operate
Long battery life for extended sampling

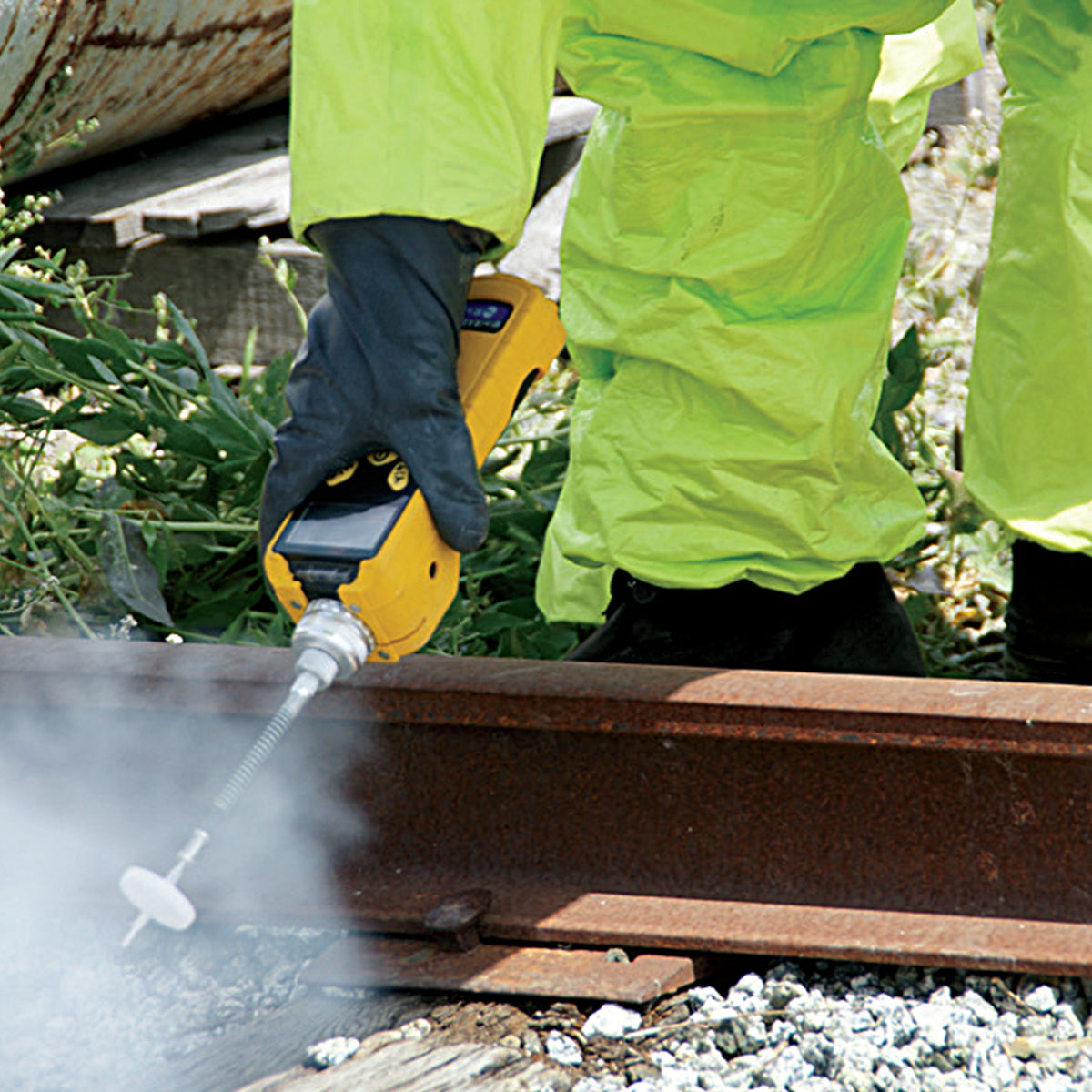

Environmental Cleanups and Remediation
|Sensors||Photoionization sensor with standard 10.6 eV or optional 9.8 eV or 11.7 eV lamps|
|Battery||Rechargeable external field-replaceable Lithium-Ion battery pack Alkaline battery adapter|
|Display Graphic||4 lines 28 x 43 mm with LED backlight for enhanced display readability|
|Calibration||Two-point or three-point calibration for zero and span. Calibration memory for 8 calibration gases alarm limits span values and calibratio|
|Datalogging||Standard 6 months at one-minute intervals|
|Sampling Pump||Internal integrated flow rate at 500 cc/mn Sample from 100' (30m) horizontally and vertically|
|Frequency||902 to 928 MHz (license-free) 2.400 to 2.4835 GHz (license-free) 433 MHz 869 MHz|
|RF Range||Up to 500' (900 MHz 433 Mhz 869 Mhz) extendable with RAELink3 Repeater to 2 miles|
|Humidity||0% to 95% relative humidity (non-condensing)|
|Temperature||-4° to 113° F (-20° to 50° C)|
|Dimensions||US: 10 x 3" x 2.5 " Metric: 25.5 x 7.6 x 6.4 cm|
|Weight||US: 26 oz Metric: 738 g|
