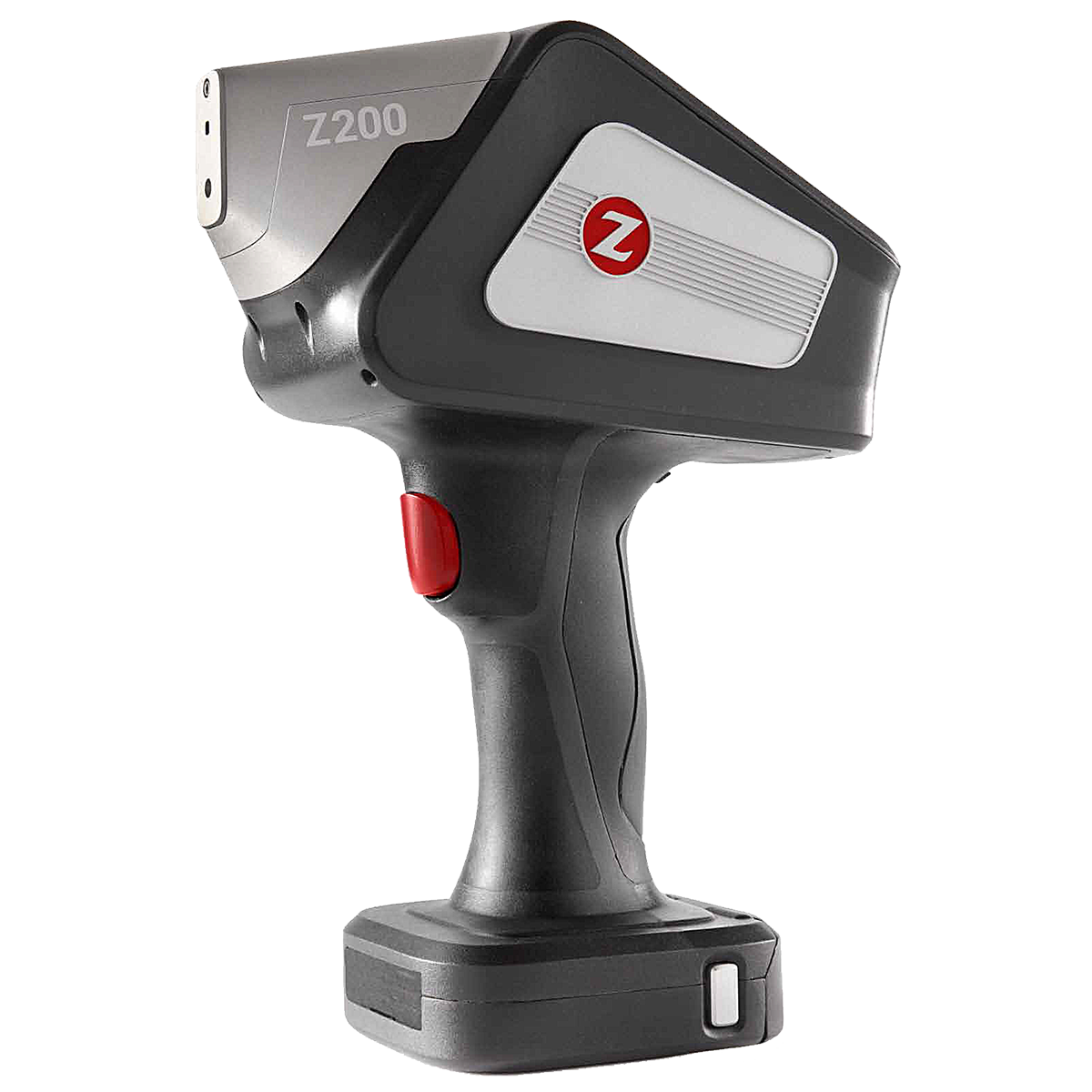

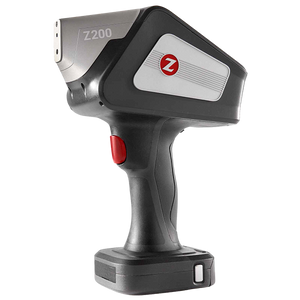

SciAps Z-200 C+ LIBS Analyzer
SciAps Z-200 C+ LIBS Analyzer
SciAps Z-200 C+ LIBS Analyzer
SciAps Z-200 C+ LIBS Analyzer
SciAps Z-200 C+ LIBS Analyzer
SciAps Z-200 C+ LIBS Analyzer

SciAps Z-200 C+ LIBS Analyzer

Pine Item #52324

The world’s only handheld analyzer that delivers carbon content in stainless, steels, and cast irons…yes even L-grades.

The Z-200 C+ is a dedicated analyzer for alloy analysis including carbon content. It analyzes carbon content in stainless, down to 0.007 ppm, for dependable separation of L and H grades. The C+ also analyzes carbon steels, including carbon equivalents (CE) for weldability. The analyzer is available in two versions. The Z-200 C comes with iron-base calibrations including carbon. The Z-200 C+ includes both iron and stainless bases and carbon.

The Z uses the technique laser-induced breakdown spectroscopy (LIBS), which has many similarities to spark OES. LIBS has been an established laboratory technique for 20+ years. It fires a pulsed laser at the material to create a plasma, instead of a continuous electric spark-like spark OES. Light from the plasma is measured with an onboard spectrometer to determine individual wavelengths and thus what elements are present. The elemental content is quantified via onboard calibrations.


High-purity Argon and Purge. Argon purge is essential for quantitative analysis with LIBS and OES, and for carbon it is critical

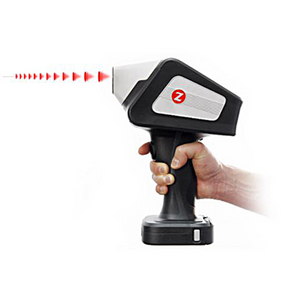

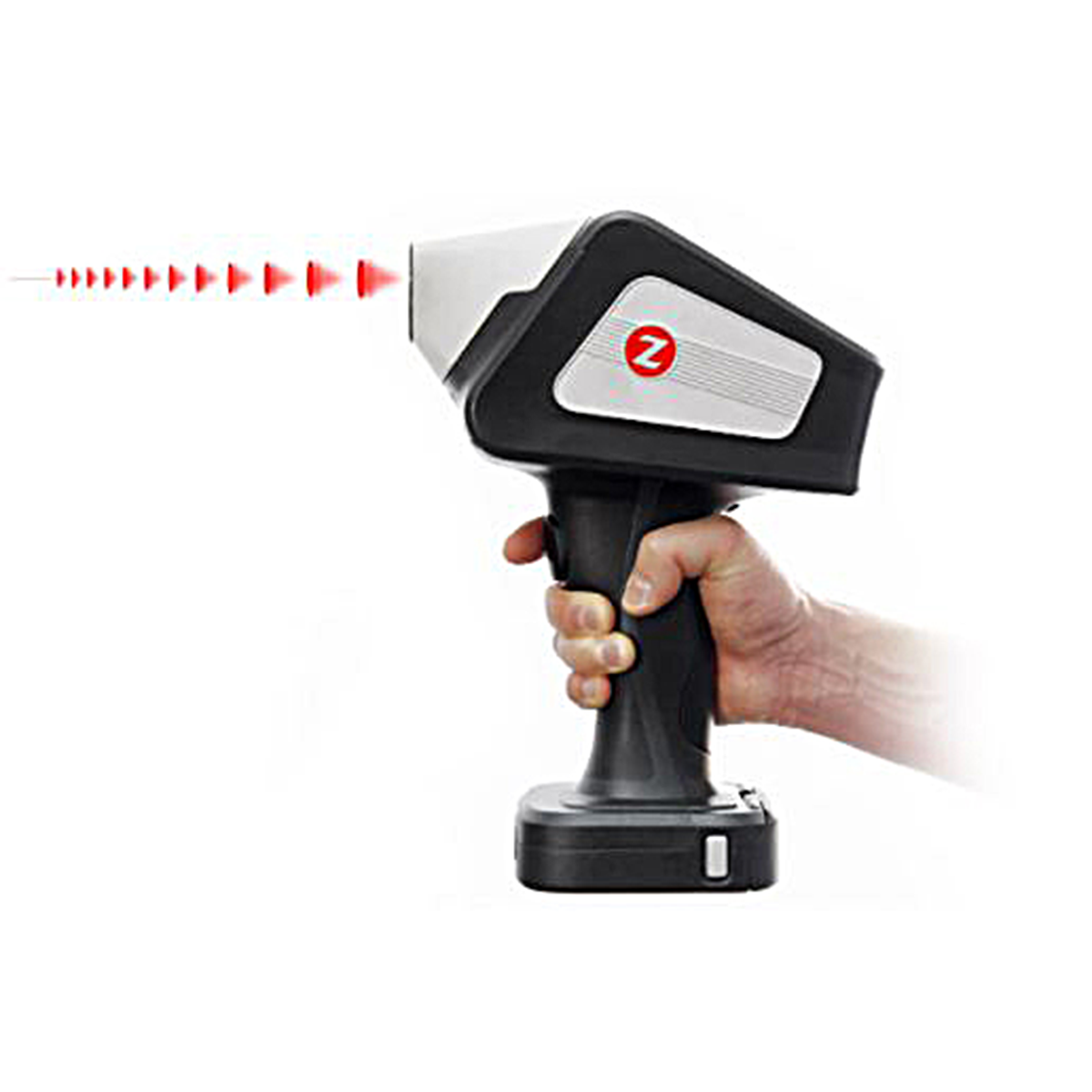

High laser pulse energy and frequency. The SciAps laser delivers 5-6 mJ/pulse on the sample, with a 50 Hz repetition rate

Laser Raster. Rastering is a must for accurate carbon tests with LIBS. The laser is typically 100 um diameter beam and even the best sample prep may not completely remove surface contamination on this distance scale

High speed laser cleaning shots. Eliminates most surface sample prep

Eliminates bad burns. On-board camera and laser targeting eliminates poor quality “burns”

Android OS and Data SHARE Apps. Share data direct to your phone, sync with any computer globally, print to wireless printers


Refinery companies

Inspection companies

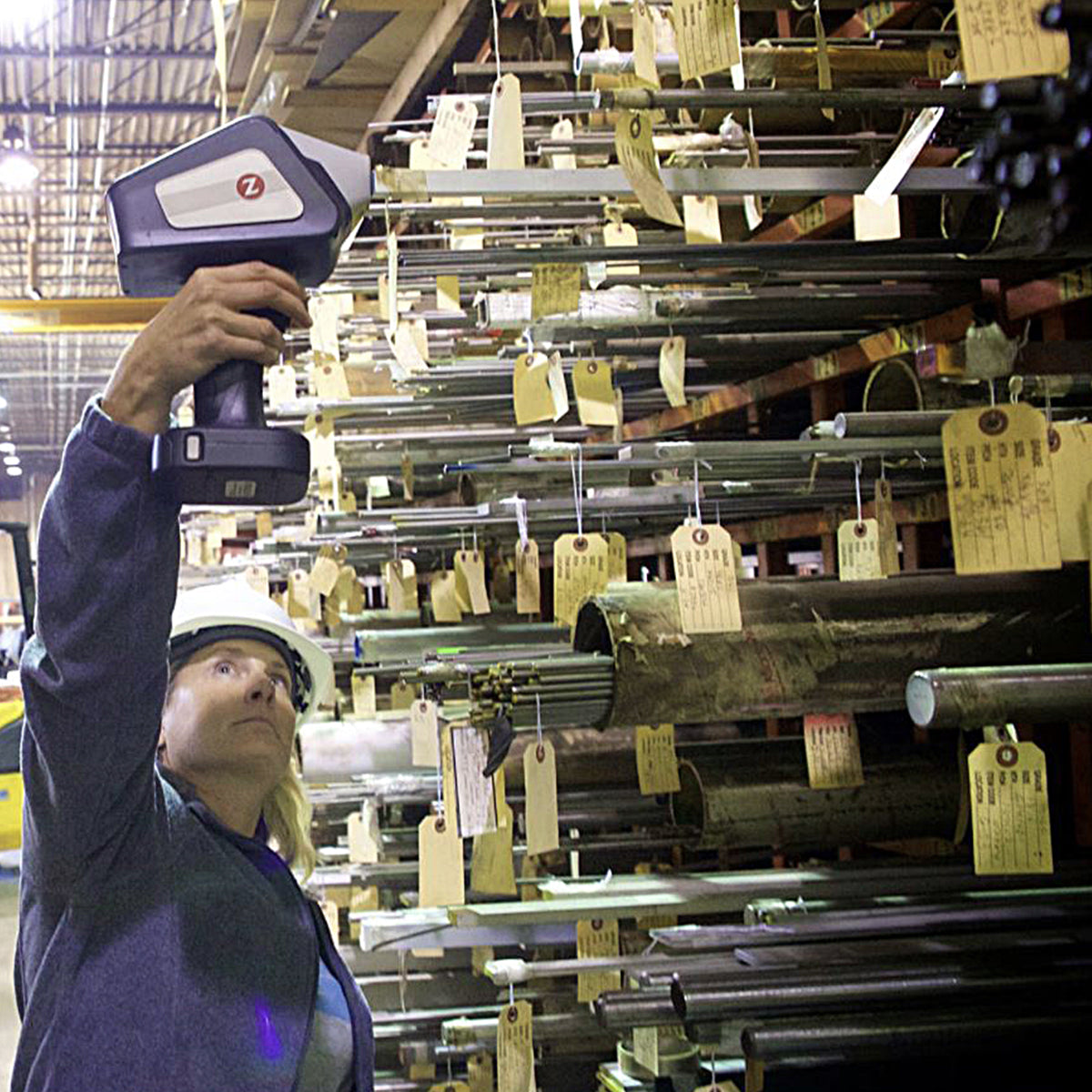

Carbon analysis in alloys in the field in seconds

Carbon analysis in L, H and Standard Grade Stainless

Quantity must be 1 or more
Translation missing: en.products.product.equipment_available
Request a Quote

Weight4 lbs with battery
Dimensions8.25″ x 11.5″ x 4.5″

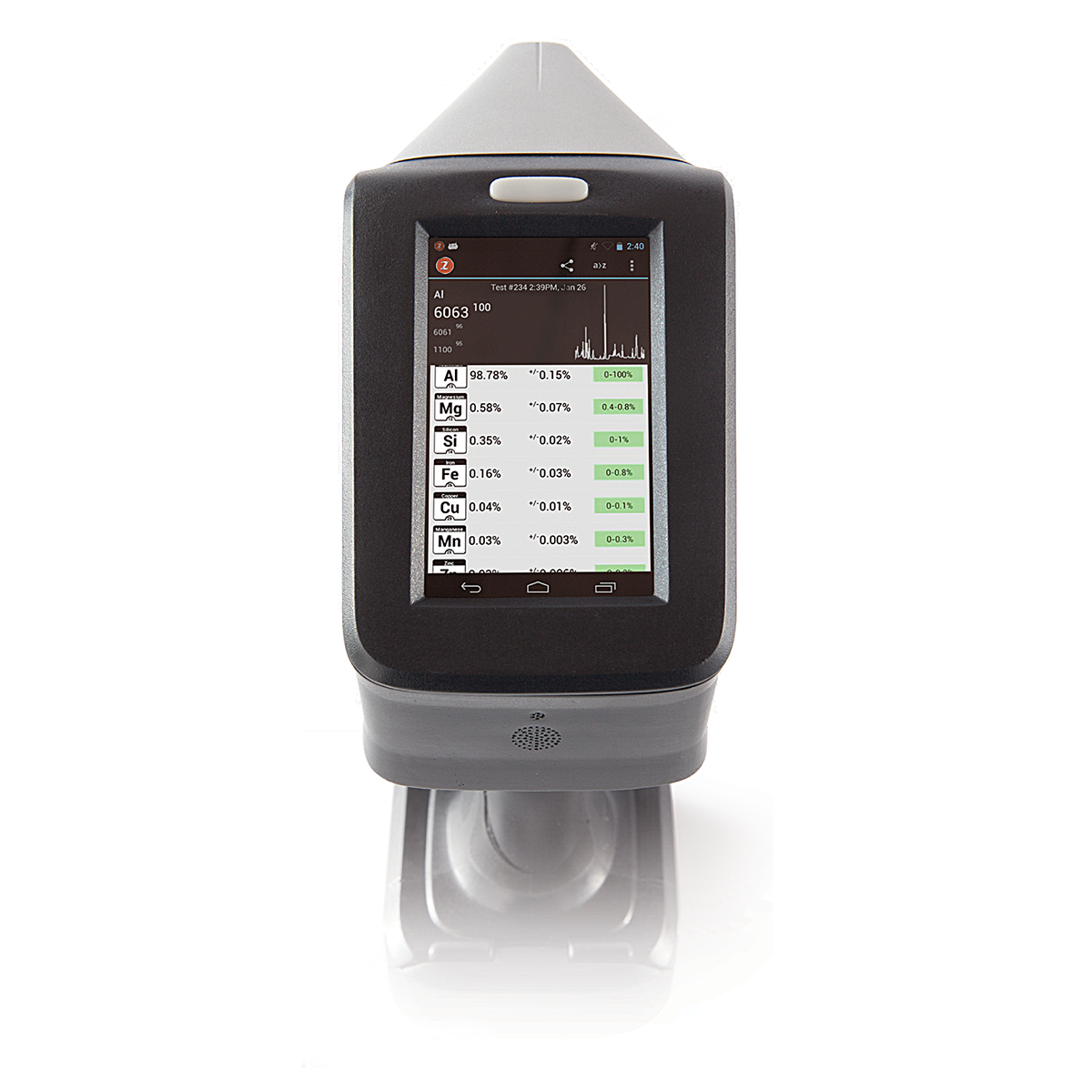

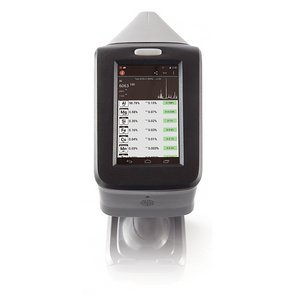

Display5″ color touchscreen Smartphone type display – PowerVR SGX540 3D graphic
Sample viewingOn-board camera/video for viewing sample before, during analysis, laser spot finder to show where laser strikes sample.
Auto-focusZ-direction stage, computer controlled for manually or automatically adjusting laser focus location on sample. Essential for liquids analysis.
Comms/Data TransferWifi, Bluetooth, USB. Connectivity to most devices, including SciAps Profile Builder PC software.
Available AppsAlloy, Geochem (Mining), Empirical, Environmental Apps. New Apps are added regularly please check with company or website.
Excitation Source5-6 mJ/pulse, 50 Hz repetition rate, 1064 nm laser source
Processing ElectronicsARM Cortex -A9 dual-core / 1.2 GHz Memory: 1 GB DDR2 RAM, 1 GB NAND
Spectral Data AcquisitionSpectral data collected in either ungated or gated operation, with user settable gate delays

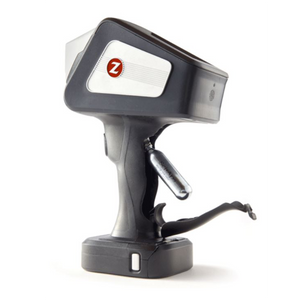

Operation/Argon PurgeOn-board, user replaceable argon cartridges for operating in argon purge environment. Air-based operation optional. Argon canister provides approximately 600 tests before replacement.

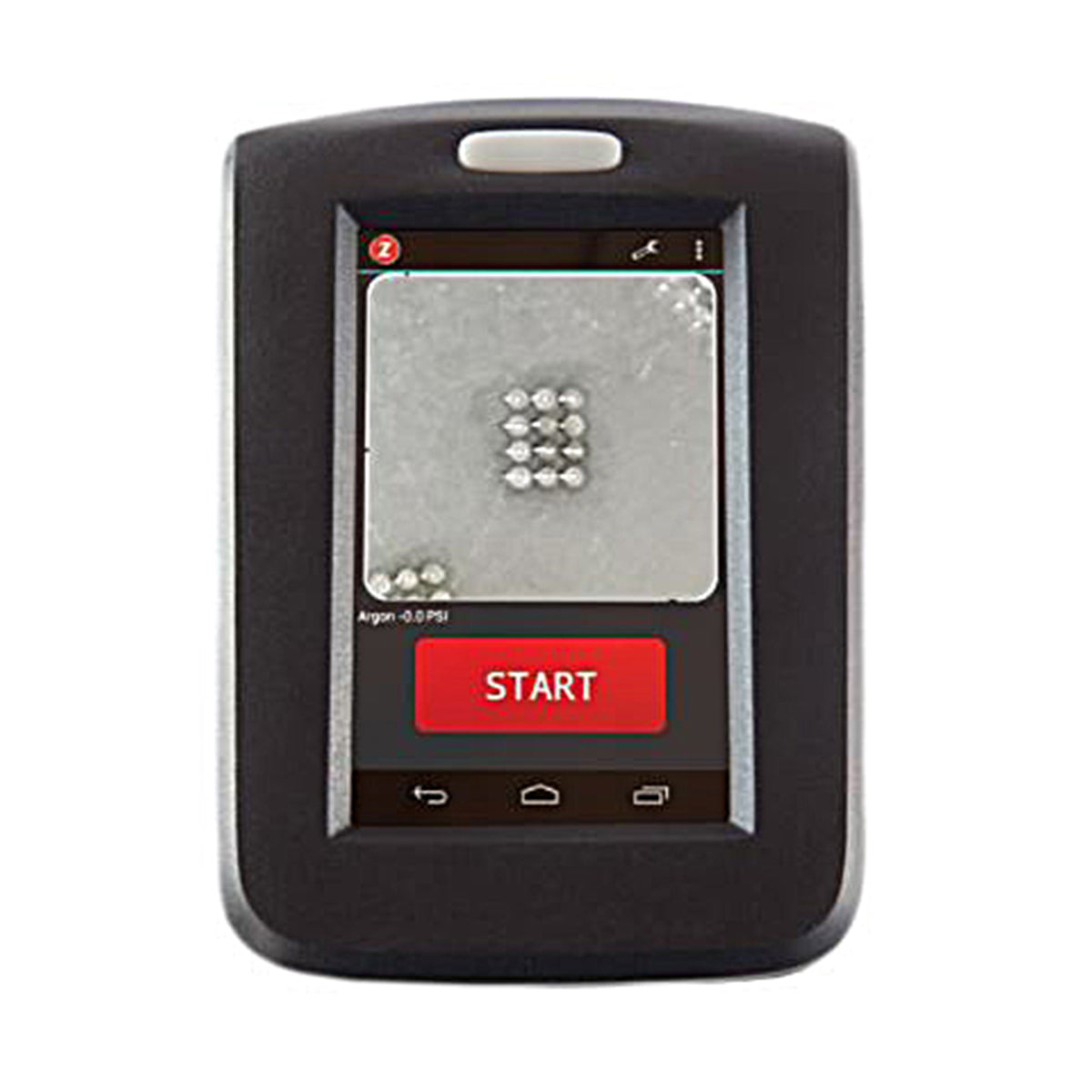

Laser RasterOn-board XY stage for rastering laser to discrete locations for targeted analysis or averaging. Raster pattern up to 16 x 16 grid, 256 locations.
Calibration CheckInternal shutter is also 316 stainless for totally automated calibration and wavelength scale validation.
PowerOn board rechargeable Li-ion battery, rechargeable inside device or with external charger, AC power.
Drift CorrectionOnly needed for higher accuracy analysis (argon purge). Automated drift correction using factory provided or user provided reference materials.
Grade library (alloy)500+ grades, multiple libraries supported, grades may be added on analyzer or via PC software package (ProfileBuilder).
Data StorageResults Storage: 8 GB SD
SecurityPassword protected usage (user level) and internal settings (admin).
RegulatoryCE, RoHS, USFDA registered. Class 3b laser. Sample sensor on-board, allows for operation under Class 1 conditions, subject to local LSO approval. CE, RoHS, USFDA registered.
