SciAps Z-902C+ Premium LIBS Analyzer

Pine Item #52476

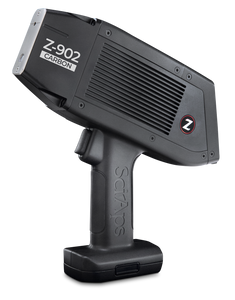

Z-902 Carbon: A new industry standard

The key to rock-solid, in-field carbon analysis for alloys.

  • Identification of stainless steel and low alloy steels, including carbon analysis down to 70 ppm and instant CE (carbon equivalents) calculations.
  • Powerful laser, onboard argon purge, and high-resolution spectrometer are built for carbon.

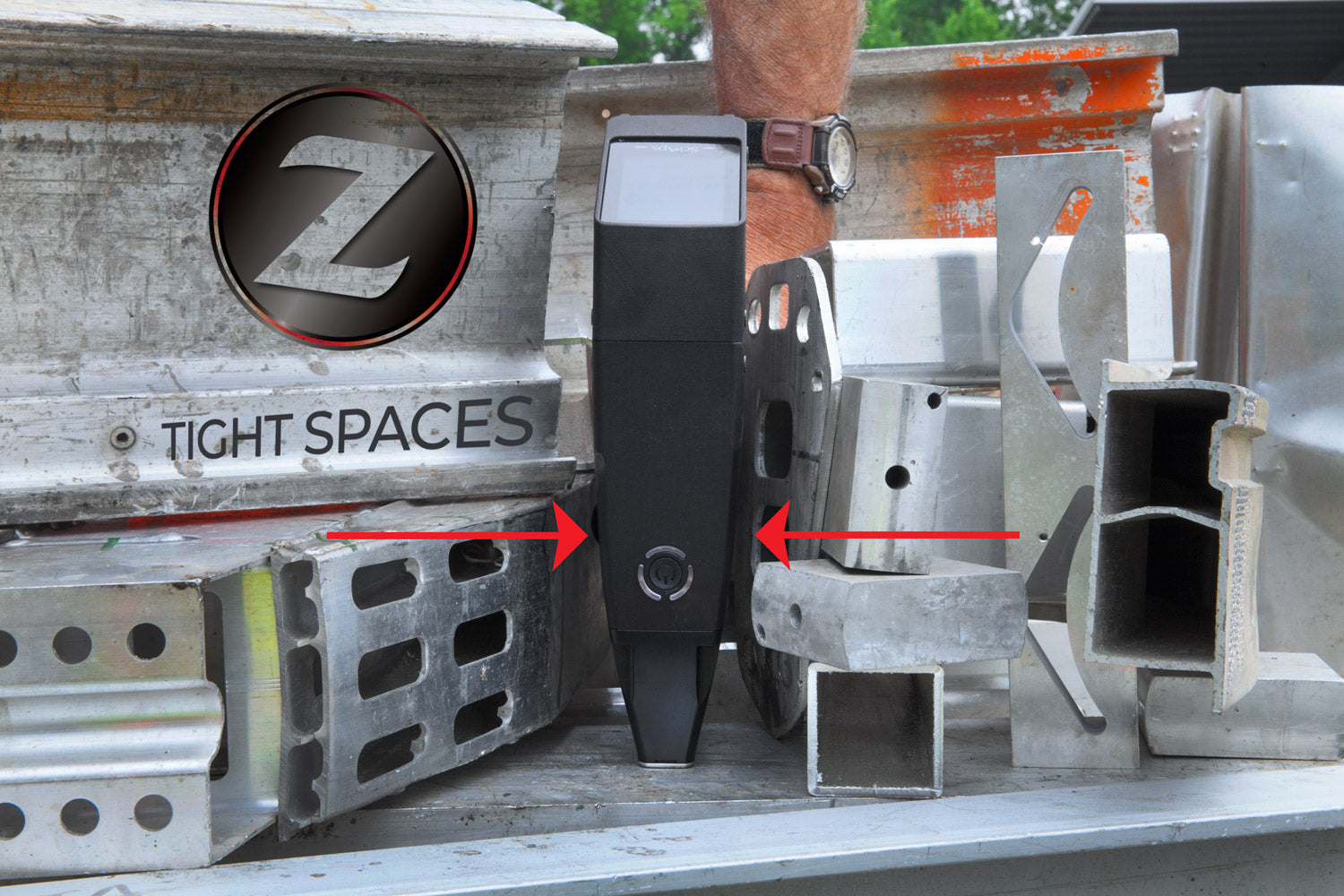

  • Narrow profile for accessing the tightest spaces, aerospace-grade aluminum body for improved performance in high ambient temperatures, and re-designed user interface. The most usable platform on the market, at only 4.35 lbs. (1.97 kg).

Spectrometer range 190 nm – 420 nm. Includes a second, dedicated spectrometer for superior resolution in the 190 – 230 nm range for carbon.

Handheld LIBS analyzers are instruments used to determine the elemental composition of materials. LIBS is an acronym for the analytical technique Laser-Induced Breakdown Spectroscopy.


In use globally

PMI and NDT
Confirm alloy type and grade 300 series stainless steels into L, H, and S series. Carbon equivalent for welding. Material verification pre- and post-fabrication. Validating mill test reports. Material verification in chemical plants and refineries. Re-rating vessels.

Pipeline integrity management
Grading. Determining carbon equivalents. Validating MTRs.

Steel production

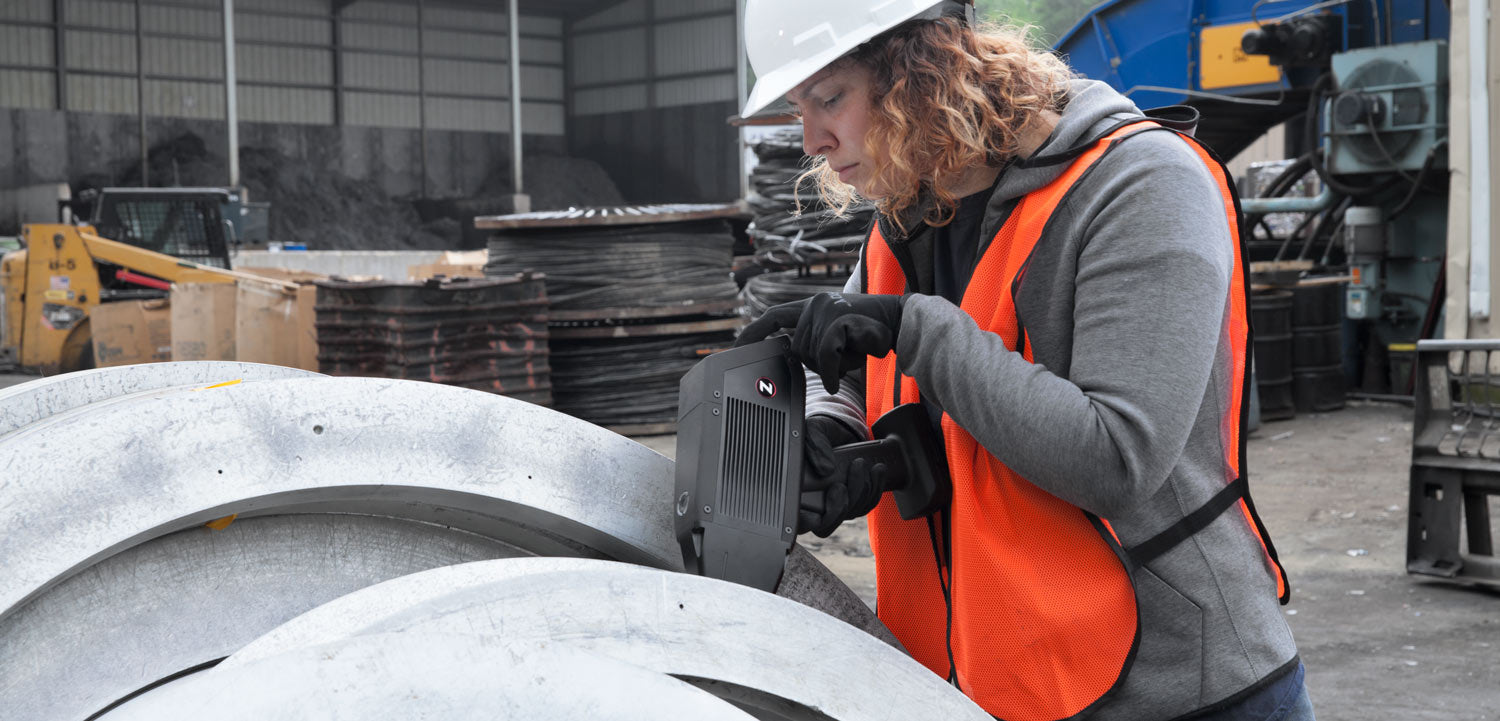

Screen incoming scrap material. In-process quality control. Resolving material mix-ups. Rapid screening of material at EAF for heat compliance.

Features:

LIBS Sensor - Advanced spectrometer design for high resolution and wide range.

Internal-Camera - Precise targeting of analysis location

Macro-Camera - Photo documentation of samples, reading barcodes and QR codes

Report Generation - Full-featured, with available cloud data management and reporting

Narrow Snout - Tapered for welds or difficult-to-acces test locations

Laser Safety Sensor - Patented sample sensor allows Class 1 operation, subject to LSO approval

Intuitive Android - Android operating system, with app based software

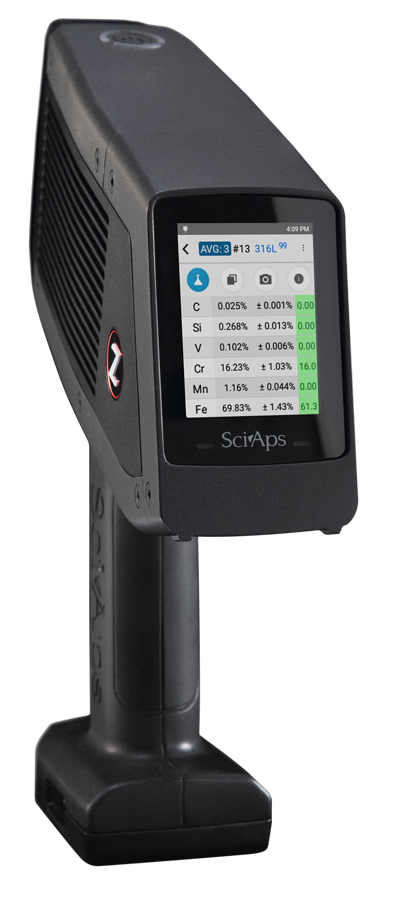

High Resolution Display - Rear-facing display for easy viewing

Rugged Metal Body - Maximum durability and minimal service costs.

Applications:

Oil & Gas

Chemical Refineries

Industrial Manufacturing

Fabrication process

Power generation

Shipbuilders

Steel makers

Scrap processing/Recycling

Quantity must be 1 or more
Equipment available for both rental and purchase
Request a Quote

Specifications
Weight4.35 lbs. (1.97 kg) with battery
Dimensions10.75 x 2.875 x 8.625 inches
Display2.7-inch high-brightness color touchscreen, readable in all conditions. Rear-facing display for easy results viewing.
PowerOn board rechargeable Li-ion battery, rechargeable inside device or with external charger, AC power.
ConnectivityBuilt on Google’s Android platform for real-time data exporting, including built-in WiFi (IEEE 802.11b/g/n), Bluetooth (BR/EDR+BLE), GPS and USB-C to connect to virtually any information management system.
SecurityPassword protected. Multi-user support with configurable access.
RegulatoryCE, RoHS, USFDA registered. Class 3b laser. Sample sensor on board, allows for operation under Class 1 conditions subject to local LSO approval.
Processing ElectronicsARM Quad Cortex -A53 1.2GHz memory: 2 GB LPDDR3, 16 GB eMMC
Data StorageResults Storage: 32 GB SD
Spectral range190-420 nm
Calibrations

Aluminum: Be, Mg, Al, Si, Ti, V, Cr, Mn, Fe, Ni, Cu, Zn, Zr, Pb, Bi, Ag, Sn

Titanium Base: Al, Ti, V, Cr, Fe, Cu, Zr, Nb, Mo, Sn

LAS Base: C, Al, Si, Ti, V, Cr, Mn, Fe, Cu, Ni, Nb, Mo, Pb

Stainless Steels: C, Al, Si, Ti, V, Cr, Mn, Ni, Fe, Ni, Cu, Nb, Mo, W

Nickel Base: Al, Si, Ti, Cr, Mn, Fe, Co, Ni, Cu, Nb, Mo, W

Copper Base: Be, Al, Si, Cr, Mn, Fe, Ni, Cu, Zn, Ag, Sn, Pb, Bi

Cobalt Base: Al, Si, Ti, Cr, Mn, Fe, Co, Ni, Cu, Nb, Mo, W

Specialty Bases: Mg, V, Cr, Mn, Co, Zn, Zr, Nb, Mo, Ag, Sn, Hf, Ta, W, Re, Pb, S

Sample ViewingIntegrated camera and laser target indicator before and during analysis provide proper sample alignment. Includes 2nd “macro camera” for scanning QR or barcodes and for photo-documentation and report generation.
Sample ViewingIntegrated camera and laser target indicator before and during analysis provide proper sample alignment. Includes 2nd “macro camera” for scanning QR or barcodes and for photo-documentation and report generation.
Laser RasterOn-board Y stage for rastering laser to discrete locations for targeted analysis or averaging.
AtmosphereSciAps proprietary Opti-Purge inert argon environment improves spectral signal-to-noise ratio; improves performance in UV range.
Calibration CheckInternal 316 stainless check standard for calibration verification and wavelength scale validation.
Drift CorrectionOn-board automated drift correction software with factory or user-provided reference materials.
Grade Library500+ grades, multi-library support, libraries may be added or edited.
