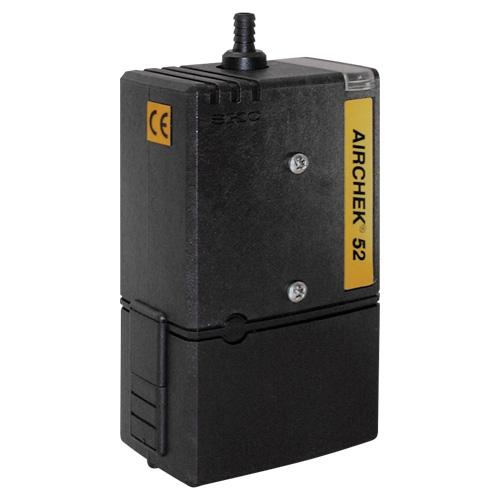

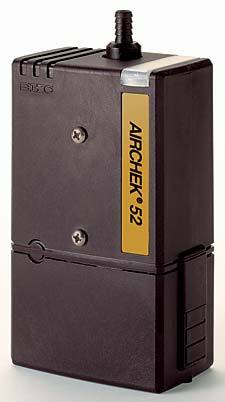

SKC Airchek 52
SKC Airchek 52
SKC

SKC Airchek 52

Pine Item #54480

Ideal for "on worker", short-term or full shift sampling, the AirChek 52 personal sampling pump can be used for STEL, TWA or Ceiling sampling using single sorbent tubes. This unit is the workhorse of air sampling pumps for industrial hygiene studies or environmental testing. This battery-operated pump weighs only 20 ounces, and its modular pneumatic system provides constant flow in a range of 750 to 300 ml/min, reducible to 5 to 500 ml/min with the constant pressure controller. Flow is compensated with up to 25 inches water backpressure and moderated with a built-in pulsation dampener. As backpressure increases, the motor voltage corrects automatically for constant flow, so there is no sacrifice in accuracy, even in dusty environments. If flow is restricted for more than 15 seconds, the pump shuts down automatically, but the timer retains the valid run time.

Features:

Lightweight heavy duty.

Instrinsically safe and EMI RFI

Applications:

Industrial Hygiene Monitoring

Worker Exposure

Area Monitoring

Particulate Monitoring

Vapor/Fumes/Mists/Particulate

Asbestos Monitoring

Mining

Remediation

Quantity must be 1 or more
Equipment available for both rental and purchase
Request a Quote

Specifications

Technical Specifications

Range5 to 3000 ml/min 5 to 500 ml/min with constant pressure controller
Compensation Range750 to 2000 ml/min up to 25 inches 2500 ml/min up to 20 inches 3000 ml/min up to 15 inches
Flow Control± 5% set point constant flow
PowerBuilt-in rechargeable NiCd battery pack 8 hours operation
ApprovalsUL listed for Class I Groups A B C D Class II Groups E F G Class III Temp Code T3C

Dimension

USMetric
Dimensions5 x 3\ x 1.75\"""\"""127 x 76 x 44 mm

Weight

USMetric
Weight1.25 lbs0.567 kg
"""
