SKL 904 Spectrosense2
SKL 904 Spectrosense2
Skye Instruments

SKL 904 Spectrosense2

Pine Item #

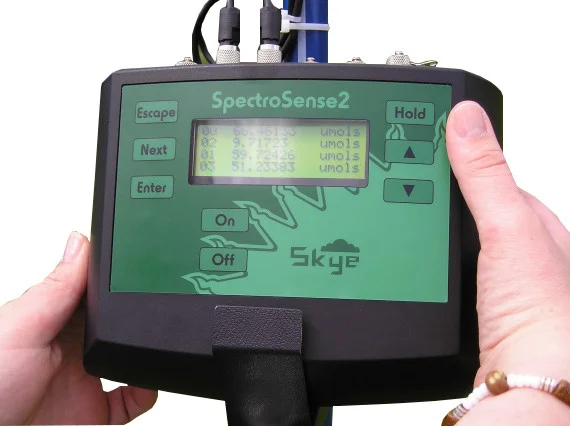

SpectroSense2 is a 4-channel meter which displays from 4 sensors or channels simultaneously. These can be either direct sensor readings or ratios between pairs of sensor channels. The 'hold' button allows the user to freeze the display for easy viewing of all 4 real time measurements. Integration of total solar radiation measurements over time is also available. The meter's memory has storage for up to 16 calibration factors to straightforward interchange of sensors as required. The user can easily select 4 factors to be used for the active sensors currently connected to the meter.

Features:

Multichannel meters for Light Sensors

4 channel SpectroSense Display Meter

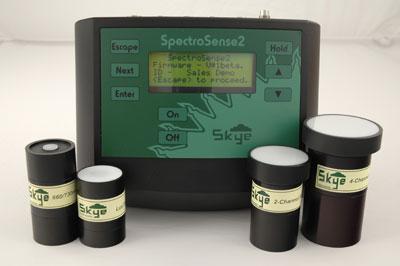

Compatible with Skye light sensors and sensors from other manufacturers

4 line display for up to sensors simultaneously

Applications:

Controlled Environment Chambers

Plant Growth rooms

Audit Checks, Lamp Outputs

Lux, UV or PAR response

Quantity must be 1 or more
Translation missing: en.products.product.equipment_available
Request a Quote

Specifications

Technical Specifications

Operating Range:-20°C to +70°C, 0-100% Relative Humidity
Construction:Black ABS, Sealed to IP54
Display:20 x 4 line, alphanumeric liquid crystal display
Keypad:Membrane keypad. Audible key press, 8 keys
Power:Internal 9 volt PP3/MN1064/6LF22 battery. External 12VDC power supply via RS232 socket, from solar power, mains transformer or vehicle
Battery Life:40-50 hours in display mode, up to 300 hours in log mode
Memory:Sensor library for 16 calibration factors. Non volatile EEPROM Memory, no data loss if power fails. Over 2000 readings of 8 inputs stored with date and time
Sensor Inputs:Choose 4 inputs from Current & Voltage
DimensionsUS: 5.9 x 7.9 x 2.76 in. Metric: 150 x 200 x 70 mm
WeightUS: 1.54 lb . Metric: 700 g
Manuals & Data Sheets
