Solinst DataGrabber (for use with Model 3001/3002)
The Model 3001 DataGrabber for Leveloggers provides an inexpensive, and very portable option for Levelogger users to download data directly to a USB flash drive key.
How the DataGrabber Works

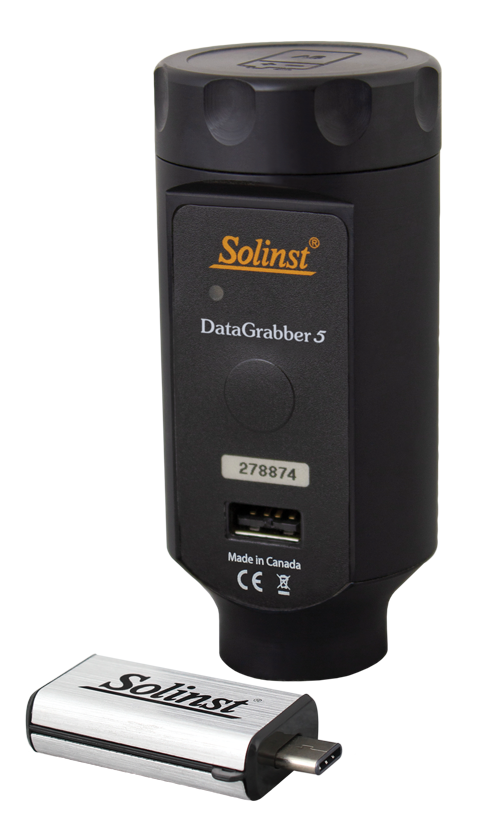

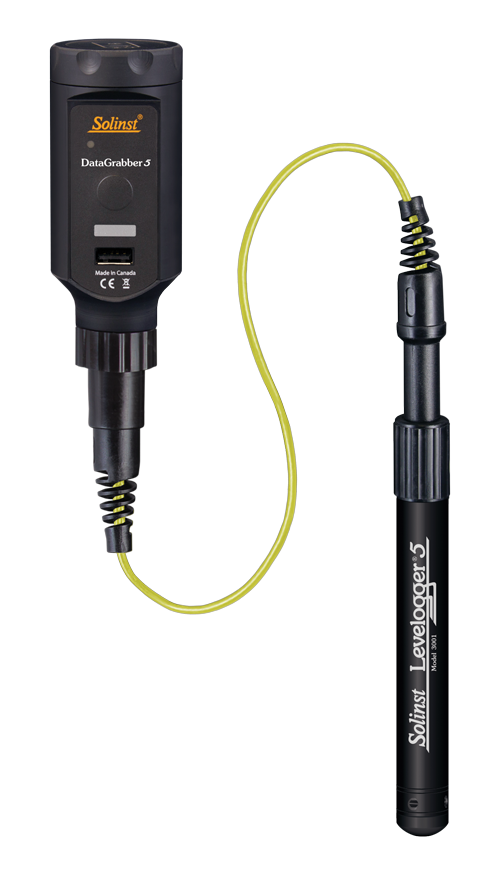

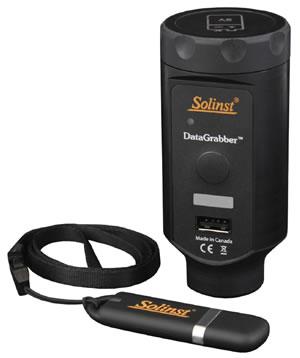

The DataGrabber connects to a Levelogger's Direct Read Cable; alternatively, a Direct Read to Optical Adaptor allows you to connect it directly to a Levelogger's optical end. The USB flash drive key is plugged into the socket on the front of the DataGrabber. A push-button on the DataGrabber starts the downloading process. All of the data in the Levelogger's memory is transferred to the USB device. The DataGrabber comes with a 512 Mb USB flash drive key; it is also compatible with most other USB flash drives. The Levelogger is not interrupted if it is still logging. The data in the Levelogger memory is not erased. A light changes colour to indicate when the DataGrabber is properly connected, when the data transfer is taking place, and when the data has been successfully downloaded. The DataGrabber uses one 9 volt alkaline or lithium battery that is easy to replace when required.
