Thermo 15I
Thermo Scientific

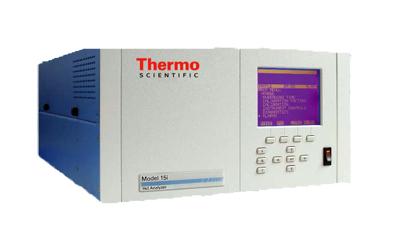

Thermo 15I

Pine Item #54401

Now available for rent, model 15i HCl analyzer. Using gas filter correlation technology, the Model 15i HCl measures the amount of Hydrogen Chloride in the sample. The Model 15i is based on the principle that Hydrogen Chloride (HCl) absorbs infrared radiation at a wavelength of 3.4 microns. Because infrared absorption is a nonlinear measurement technique, it is necessary for the instrument electronics to transform the basic analyzer signal into a linear output. The Model 15i HCl uses an exact calibration curve to accurately linearize the instrument output over any range up to a concentration of 5,000ppm. This state-of-the-art gas analyzer offers features such as an ethernet port, flash memory for increased data storage as well as being field upgradable. Ethernet connectivity provides efficient remote access, allowing the user to download measurement information directly from the instrument without having to be on-site. Easily programmable shortcut-keys allow you to jump directly to frequently accessed functions, menus or screens The larger interface screen can display measurement information and status while viewing menu and operational screens.


Enhanced electronics design optimizes product commonality

Enhanced user interface with one button programming and large display screen

Ethernet connectivity for efficient remote access

Flash memory for increased data storage and user downloadable software

Improved layout for easier accessibility to components

Quantity must be 1 or more
Translation missing: en.products.product.equipment_available
Request a Quote


Technical Specifications

Preset Ranges0-5 10 20 50 100 200 500 1000 2000 and 5000 ppm
Custom Ranges0-5 to 5000 ppm
Zero Noise0.1 ppm RMS (5 minute averaging time)
Lower Detectable Limit0.20 ppm
Zero Drift+/- 0.2 ppm
Span Drift+/-2% full scale
Response Time120 seconds (30 second average time)
Precision+/- 0.1 ppm
Linearity+/-2% full scale < 1000 ppm +/- 5% full scale >1000 ppm
Sample Flow Rate1.0 liters/min. nominal
Operating Temperature5°C - 45°C
Power Requirements100 vac 115 vac 220-240 vac +/-10% @ 275W
OutputsSelectable Voltage RS232/RS485 TCP/IP 10 Status Relays and Power Fail Indication (standard). 0-20 or 4-20 mA Isolated Current Output (op
Inputs16 Digital Inputs (standard) 8 0-10vdc Analog Inputs (optional)


Dimensions16.75(W) x 8.62\(H) x 23\"""(D)425 mm (W) x 219 mm (H) x 584 mm (D)


Weight49 lbs22.2 kg\"""
