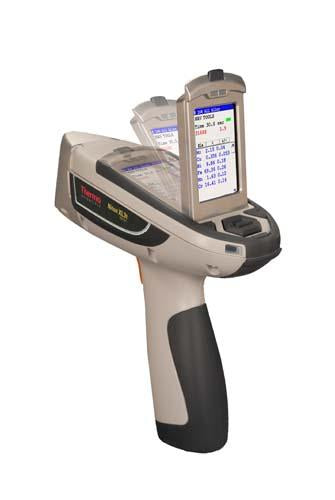

Thermo Scientific Niton XL3t GOLDD+ XRF Analyzer
Thermo Scientific

Thermo Scientific Niton XL3t GOLDD+ XRF Analyzer

Pine Item #55155

The Thermo Scientific Niton XL3t x-ray tube-based x-ray fluorescence (XRF) analyzer with GOLDD+ technology is purpose-built for your most demanding applications. Where low detection limits and high sample throughput are critical, our combination of hardware, software, features, and direct industry experience are combined to provide you with a solution to your most difficult analytical requirements.

Features:

Superior light element detection (Mg Al Si P S) without helium purge or vacuum

High count rate for lower detection limits and faster analysis

True lab-quality performance in a handheld instrument including tramp/trace elements

Applications:

Superior light element detection (Mg Al Si P S) without helium purge or vacuum

High count rate for lower detection limits and faster analysis

True lab-quality performance in a handheld instrument including tramp/trace elements

Quantity must be 1 or more
Translation missing: en.products.product.equipment_available
Request a Quote

Specifications

Technical Specifications

TubeAg anode (6-50 kV 0-200 µA max)
DetectorGeometrically Optimized Large Area Drift Detector (GOLDD)\nProprietary detector with 180000 throughput cps\nResolution: < 185 eV @ 60000 cps
DisplayTilting color touch-screen display
Standard Analytical RangeUp to 30 elements from Mg to U (varies by application)
Optional Light ElementsUltra-low light element detection via He purge
Data StorageInternal >10000 readings with spectra
Data TransferUSB Bluetooth and RS-232 serial communication
Alloy ModesMetal Alloy Electronics Alloy Precious Metals
Bulk ModesSoil Mining TestAll™
Plastic ModesRoHS Plastics Toy & Consumer Goods Plastics TestAll Painted Products
ComplianceCE RoHS

Dimension

USMetric
Size9.60 x 9.05 x 3.75244 x 230 x 95.5

Weight

USMetric
Weight< 3.0 lbs< 1.3 kg
