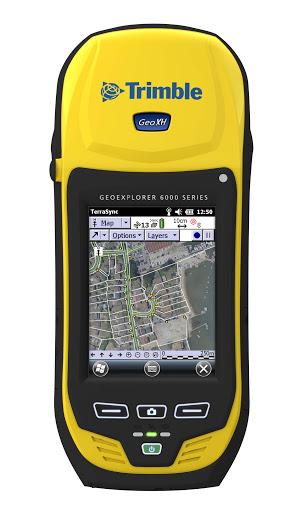

Trimble GeoXH

Pine Item #51462

Offering the latest in surface positioning technology, Pine now offer the Trimble GeoXH handheld. Trimble ’s top-of-the-line solution for high accuracy GIS data collection. Engineered with H-Star technology, the GeoXH handheld delivers the subfoot (30 cm) accuracy required by electric and gas utilities, water and wastewater services, land reform projects, and other applications where on-the-spot positioning is crucial.

Features:

\r

512 MB onboard memory plus removable SD memory\r

Bluetooth and wireless LAN connectivity options\r

H-Star technology for subfoot postprocessed accuracy\r

Microsoft Windows Mobile 5.0 software allowing maximum flexibility in software choice\r

Rugged handheld with all-day battery\r

TrimPix technology for wireless camera support

Applications:

Robotics Solutions

Mining Solutions

Precise Positioning

Geospatial solutions

Agricultral solutions

Construction Solutions

Navigation Guidance

Marine Solutions

Quantity must be 1 or more
Equipment available for both rental and purchase
Request a Quote

Specifications

Technical Specifications

PHYSICALNULL
Processor416 MHz Intel PXA-270 X-Scale processor
Memory64 MB RAM and 512 MB internal Flash disk
PowerLow (no GPS or backlight) - 1.5 Watts. Normal (with GPS and backlight) - 2.7 Watts. High (with GPS backlight Bluetooth and wireless LAN) - 3.7 Watts (note c)
BatteryInternal 7500 mAh lithium-ion rechargeable in unit 27.8 Watt-hours
ENVIRONMENTALNULL
TemperatureOperating: -10 ºC to +50 ºC (14 ºF to 122 ºF). Storage: -20 ºC to +70 ºC (-4 ºF to 158 ºF)
CasingWind-driven rain and dust-resistant per IP 54 standard. Slip-resistant grip shock and vibration resistant
INPUT/OUTPUTNULL
CommunicationsBluetooth (note d) 802.11b wireless LAN USB client v1.1 compliant (note e) via support module Serial via optional DE9 serial clip adaptor Ethernet 10/100 BaseT compatible via support module
Bluetooth ProfilesClient and host support - Serial Port Object Push. Client support only - Dial-Up Networking. Host support only - File Transfer (using OBEX)
DisplayAdvanced outdoor TFT 240 × 320 pixel 65536 colors with backlight
AudioMicrophone and speaker record and playback utilities
InterfaceTouch screen Soft Input Panel (SIP) virtual keyboard. 11 hardware control keys handwriting recognition software. Audio system events warnings and notifications
GPSNULL
Channels12 (L1 code and carrier/L2 carrier)(note f)
Integrated real-timeSBAS (note a)
Update Rate1 Hz
Time to first fix30 seconds (typical)
ProtocolsTSIP NMEA (GGA VTG GLL GSA ZDA GSV RMC)
ACCURACY (HRMS) AFTER DIFFERENTIAL CORRECTION(note g)
H-Star postprocessed (note h)With internal antenna - 30cm. With optional Zephyr antenna - 20cm
Code postprocessedSubmeter
Carrier postprocessed (note i)With 20 minutes tracking satellites - 10cm. With 45 minutes tracking sateliites - 1cm.
Real-time (SBAS or external RTCM source)Submeter
NOTES(a) SBAS (Satellite Based Augmentation System). Includes WAAS (Wide Area Augmentation System) available in North America only. And EGNOS (European Geostationary Navigation Overlay System) available in Europe only. (b) Serial clip also required. (c) Power

Dimension

USMetric
Dimensions8.5 in ? 3.9 in ? 3.0 in21.5 cm ? 9.9 cm ? 7.7 cm

Weight

USMetric
Weight1.76 lb (with battery) 0.78kg (with battery)
