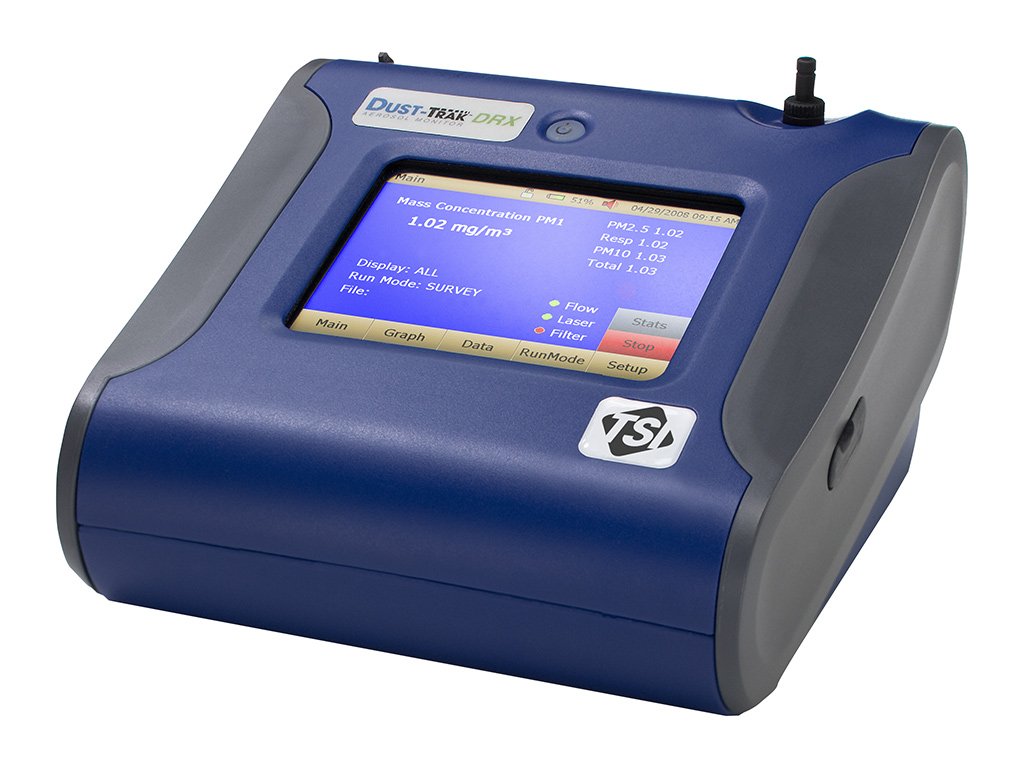

TSI DUSTTRAK DRX Desktop 8533 Dust/Aerosol Monitor
TSI Instruments

TSI DUSTTRAK DRX Desktop 8533 Dust/Aerosol Monitor

Pine Item #51361

Real-Time Dust Monitoring Takes a Giant Leap Forward! Only the new DustTrak™ DRX Aerosol Monitor can simultaneously measure both mass and size fraction - no other monitor can do both. The DustTrak DRX desktop monitor is a battery-operated, data-logging, light-scattering laser photometers that give you real-time aerosol mass readings. It uses a sheath air system that isolates the aerosol in the optics chamber to keep the optics clean for improved reliability and low maintenance. The DustTrak DRX is suitable for clean office settings as well as harsh industrial workplaces, construction, environmental sites, and other outdoor applications. The DustTrak DRX monitor measures aerosol contaminants such as dust, smoke, fumes, and mists.

Features:

Aerosol Concentration range 0.001 to 150 mg/m3

Automatic zeroing (with optional zero module) minimizes the effect of zero drift

Desktop Unit

Manual and programmable data logging functions

Perform in-line gravimetric analysis for custom reference calibrations

Simultaneously measure size-segregated mass fraction concentrations corresponding to PM1 PM2.5 PM10 Respirable and Total PM size fractions

STEL alarm setpoint

Applications:

Industrial/occupational hygiene surveys

Indoor air quality investigations

Outdoor environmental monitoring

Baseline trending and screening

Engineering control evaluations

Remote monitoring

Process monitoring

Emissions monitoring

Aerosol research studies

Quantity must be 1 or more
Equipment available for both rental and purchase
Request a Quote

Specifications

Technical Specifications

Internal Battery Pack12 VDC 36 Ah
Battery Run-time24 to 40 hours (typical)
External Battery Pack12 VDC 100 Ah
Nominal Voltage12 volts
Indoor/Urban Range - w/ 2.1 dB dipole antennaUp to 1500 feet (450 m) @ 922 MHz Up to 600 feet (180 m) @ 2.4 GHz
Outdoor RF line-of-sight range w/ 2.1dB antennaUp to 7 mi (11 km) @ 922 MHz Up to 3 mi (5 km) @ 2.4 GHz
Outdoor RF line-of-sight range w/ high gain ant.Up to 20 mi (32 km) @ 922 MHz Up to 10 mi (16 km) @ 2.4 GHz
Transmit Power Output100 mW (20 dBm) @ 922 MHz 50 mW (17 dBm) @ 2.4 GHz
Data Rate9600 bps
Dimensions (H x W x D)US: 5.3 x 8.5 x 8.8 in. Metric: 13.5 x 21.6 x 22.4 cm
WeightUS: 3.9 lb. Metric: 1.6 kg / 4.5 lb. (2.0 kg) - 1 battery / 5.5 lb. (2.5 kg) - 2 batteries
