TSI AeroTrak 9306-V2 Particle Counter
TSI AeroTrak 9306-V2 Particle Counter
TSI Instruments

TSI AeroTrak 9306-V2 Particle Counter

Pine Item #54356

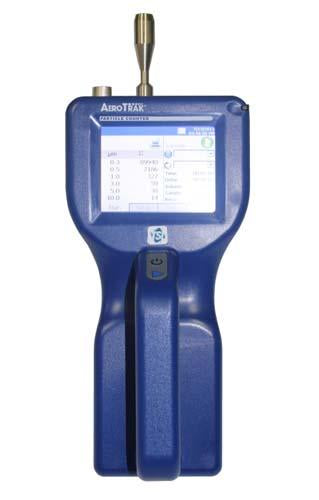

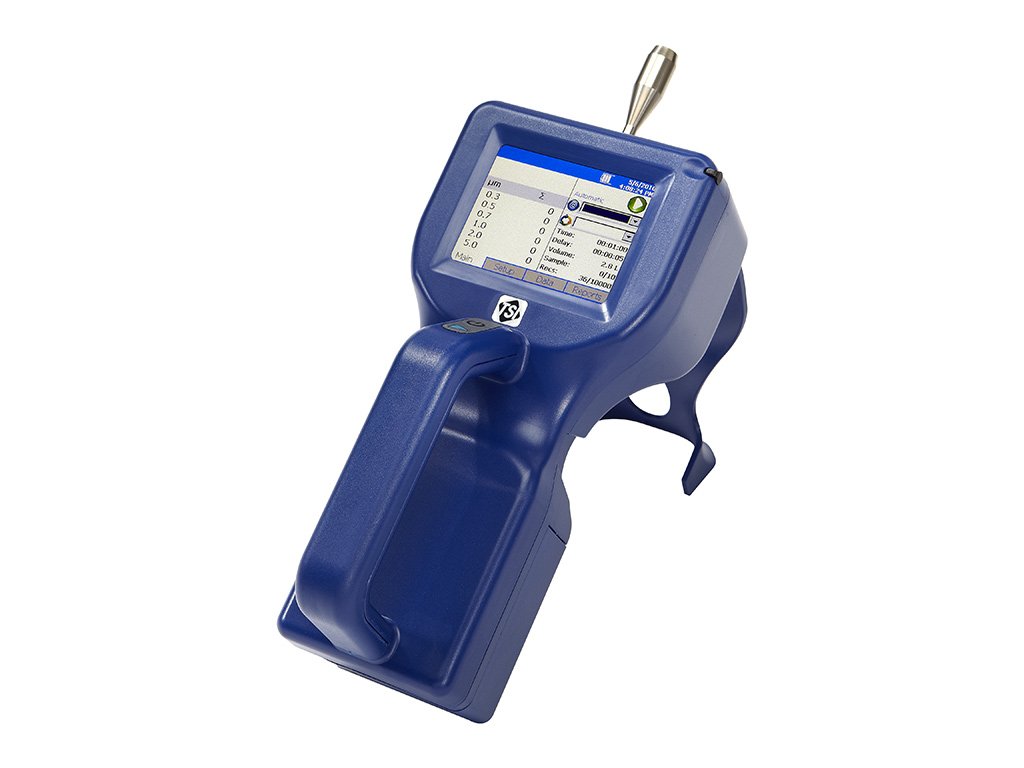

The TSI AEROTRAK™ 9306 Handheld Particle Counter offers the most features and flexibility for customers interested in versatile handheld particle contamination monitoring. The Model 9306 features an ergonomic handle with thumb controls, for easy one-hand operation. The 3.6-inch (9.1-cm) color touch screen interface makes it easy to configure and operate. The Model 9306 can generate Pass/Fail reports for ISO 14644-1, EU GMP Annex 1, and FS209E. The internal memory can store up to 10,000 sample records of particle count data which can be conveniently viewed on screen, downloaded using TRAKPRO™ Lite Software, or printed directly to an optional external printer.

Features:

Complies with all requirements of ISO 21501-4

0.3 to 25 μm size range

0.1 CFM (2.83 L/min) flow rate

Measures up to six channels of simultaneous data

Model 9306-V2 provides unique variable binning option

Mass Concentration option (density parameter is user-configurable)

Integrated handle for one hand operation

Removable, rechargeable Li-ion battery

Long life laser diode

Applications:

Classification of Clean Areas

Particulate Contamination Sources

Filter Leakds

IAQ Investigations

Compounding Pharmacies

Quantity must be 1 or more
Equipment available for both rental and purchase
Request a Quote

Specifications

Technical Specifications

Size Range0.3 to 25 µm
Size Resolution<15% @ 0.5 µm (per ISO 21501-4 requirements)
Counting Efficiency50% at 0.3 µm; 100% for particles >0.45 µm (per ISO 21501-4 and JIS)
Concentration Limit5,950,000 particles/ft3 (210,000,000/m3) @ 10% coincidence loss
Light SourceLong life laser diode
Zero Count<1 count per 5 minutes (per ISO 21501-4 and JIS B9921)
Flow Rate0.1 CFM (2.83 L/min) with ±5% accuracy (meets ISO 21501-4 and JIS requirements)
DimensionsUS: 9.4 x 4.6 x 4.9 in. Metric: 23.9 x 11.7 x 12.4 cm
WeightUS: 2.2 lb. Metric: 1.0 kg
