Ultraprobe 9000 Acoustic Leak Detector

Pine Item #54835

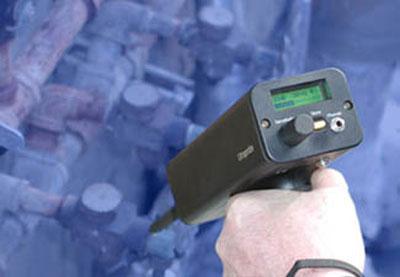

The Ultraprobe® 9000 is a digital ultrasonic inspection, information, storage and retrieval system that’s versatile and easy to use (most operators learn within 15 minutes!). This Ultraprobe® will help move you through inspections quickly. Whether used for trouble-shooting or a pre-planned route, data is easily viewed on the display panel and stored with the push of a button.

The easy-to-read display panel offers calibrated decibel readout and a 16-segment bar graph, which instantly registers sound intensity changes and simultaneously registers peak hold as you scan.


Open Platform Software

Interchangeable Modules

Frequency Tuning

Spin and ClickTM Technology

Ultratrend Sound Filtration

120 dB Dynamic Range

Acoustic Isolating Headphones

Environmentally friendly rechargeable


Easy interface for most Vibration

Analyzers including SKF, ENTEK, DLI, CSI, DI


Bearing Conditions

Rubbing Conditions


Gears/Gear Boxes


Lack of Lubrication

Quantity must be 1 or more
Translation missing: en.products.product.equipment_available
Request a Quote


Technical Specifications

Construction:Hand-held pistol type made with coated aluminum and ABS plastic
Circuitry:Solid State SMD Digital Circuitry with temperature compensation
Frequency:20 kHz to 100 kHz (tunable in 1 kHz increments)
Response Time:< 10 ms
Display:16 x 2 LCD with LED Backlight
Memory:400 storage locations
Battery:NiMH Rechargeable
Operating Temperature:0°C to 50°C (32°F to 122°F)
Outputs:Calibrated heterodyned output, decibel (dB) frequency
USB data output
Probes:Trisonic Scanning Module and Stethoscope Module
Headset:Deluxe noise attenuating headphones for hard hat use
Indicators:dB, Frequency, Battery Status and 16 Segment Bar Graph
Sensitivity:Detects 0.127 mm (0.005”) diameter leak @ 0.34 bar (5 psi) at a distance of 15.24 m (50 ft.)
Threshold:1 x 10⁻² std. cc/sec to 1 x 10⁻³ std. cc/sec
Dimensions:Complete kit in Zero Halliburton aluminum carrying case
47 x 37 x 17 cm (18.5” x 14.5” x 6.5”)
Pistol Unit: 0.9 kg (2 lbs.)
Complete carrying case: 6.4 kg (14 lbs.)
Weight:1 kg (2 lbs.)
Warranty:1-year parts/labor standard
5 years with completed warranty registration card
Display Modes:Real Time, Snap Shot, Peak Hold and Storage Display
*depends on leak configuration
**specify Ex rating if needed at time of order
